COMP Cams 26125-1 Beehive Valve Spring OD Installed Height - 1.101 1.640

(Ford F-150 1997-2010, Mustang 1996-2005, 2007-12, F-250 Super Duty 1999-2008, Explorer 2002-08, F-350 Super Duty 1999-2008 + 25 more models)

Part of: COMP Cams Beehive Valve Springs OD Installed Height

Other options in this family: COMP Cams 26056-16 COMP Cams 26918-1 COMP Cams 26925-1 COMP Cams 7228-16 COMP Cams 26055-16

Manufacturer

Picture for manufacturer COMP Cams

Part Number

26125-1
5 reviews
Sale Price

$32.95

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

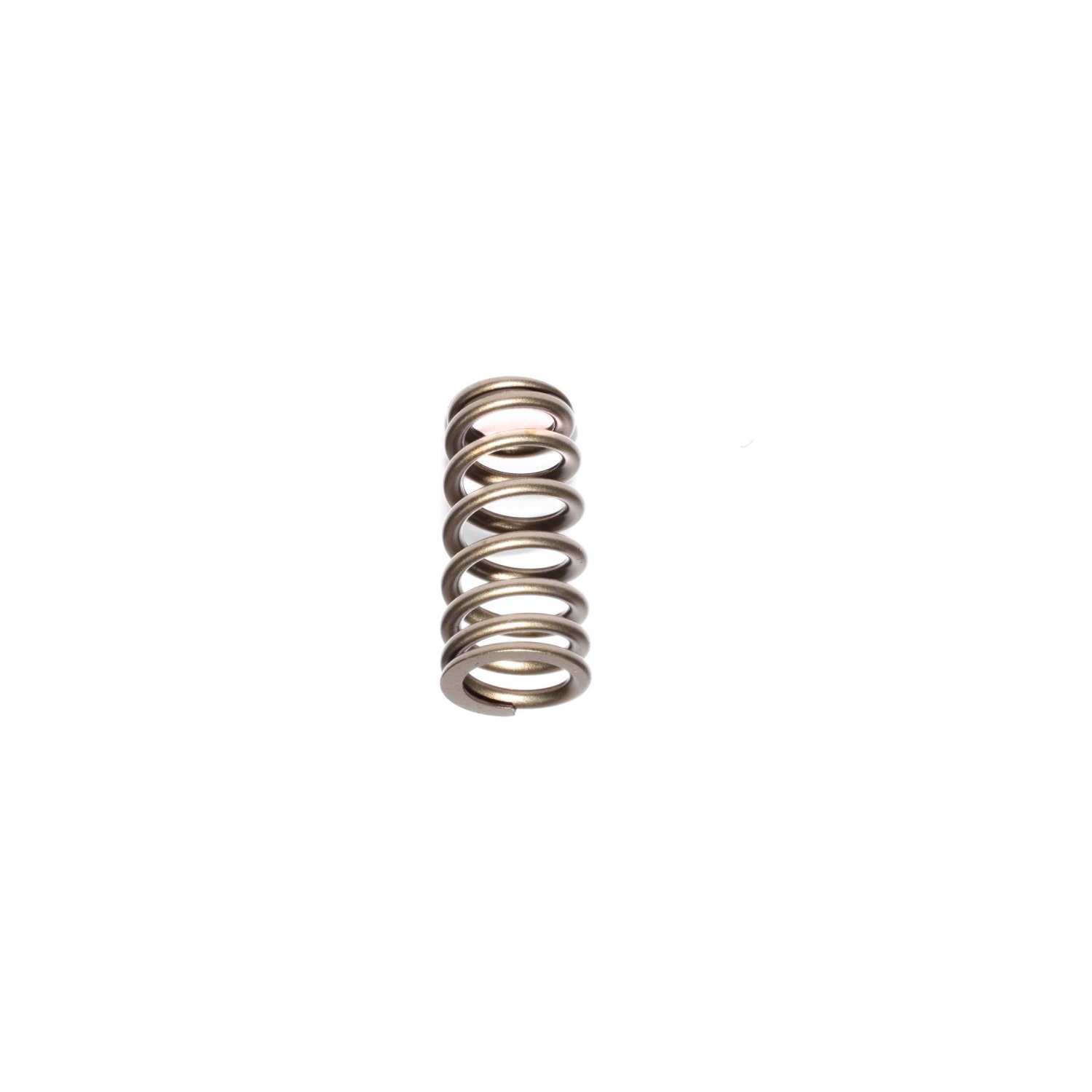

The COMP Cams 26125-1 is a high-performance beehive valve spring designed for race and street applications. This single spring features a 1.101" outer diameter and is engineered to provide reliable valve control in modified engines with aggressive camshaft profiles.

Key Specifications:

  • Outer Diameter: 1.101 inches
  • Installed Height: 1.640 inches
  • Beehive design reduces reciprocating mass for higher RPM capability
  • Consistent spring pressure for improved valve control
  • Compatible with performance camshafts and upgraded valvetrain components

COMP Cams beehive springs utilize a tapered design that allows for a smaller, lighter retainer, reducing valvetrain weight while maintaining the spring pressure needed for high-performance applications. The 1.640" installed height specification ensures proper valvetrain geometry when matched with appropriate retainers and valve stem heights.

This spring is sold individually, allowing builders to purchase the exact quantity needed for their specific engine build.

Products specifications

Fits

Ford F-150 1997-2010, Mustang 1996-2005, 2007-12, F-250 Super Duty 1999-2008, Explorer 2002-08, F-350 Super Duty 1999-2008, Expedition 1997-2008, F-250 1997-99, Crown Victoria 1992-2011, Excursion 2000-05, Thunderbird 1994-97 + 20 more models

Number of Springs

1

Outer Bottom Spring Inside Diameter

0.738

Coil Bind Height

0.97

Seat Height

1.64

Seat Pressure

120

Spring Rate

258

Compatible Retainer

763-1

Damper

No

Outer Top Spring Inside Diameter

0.65

Outer Top Spring Outside Diameter

1.013

Outer Bottom Spring Outside Diameter

1.101

AMAZON ASIN

B001GBVS8A

Valve Spring Series

Race/Street

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
