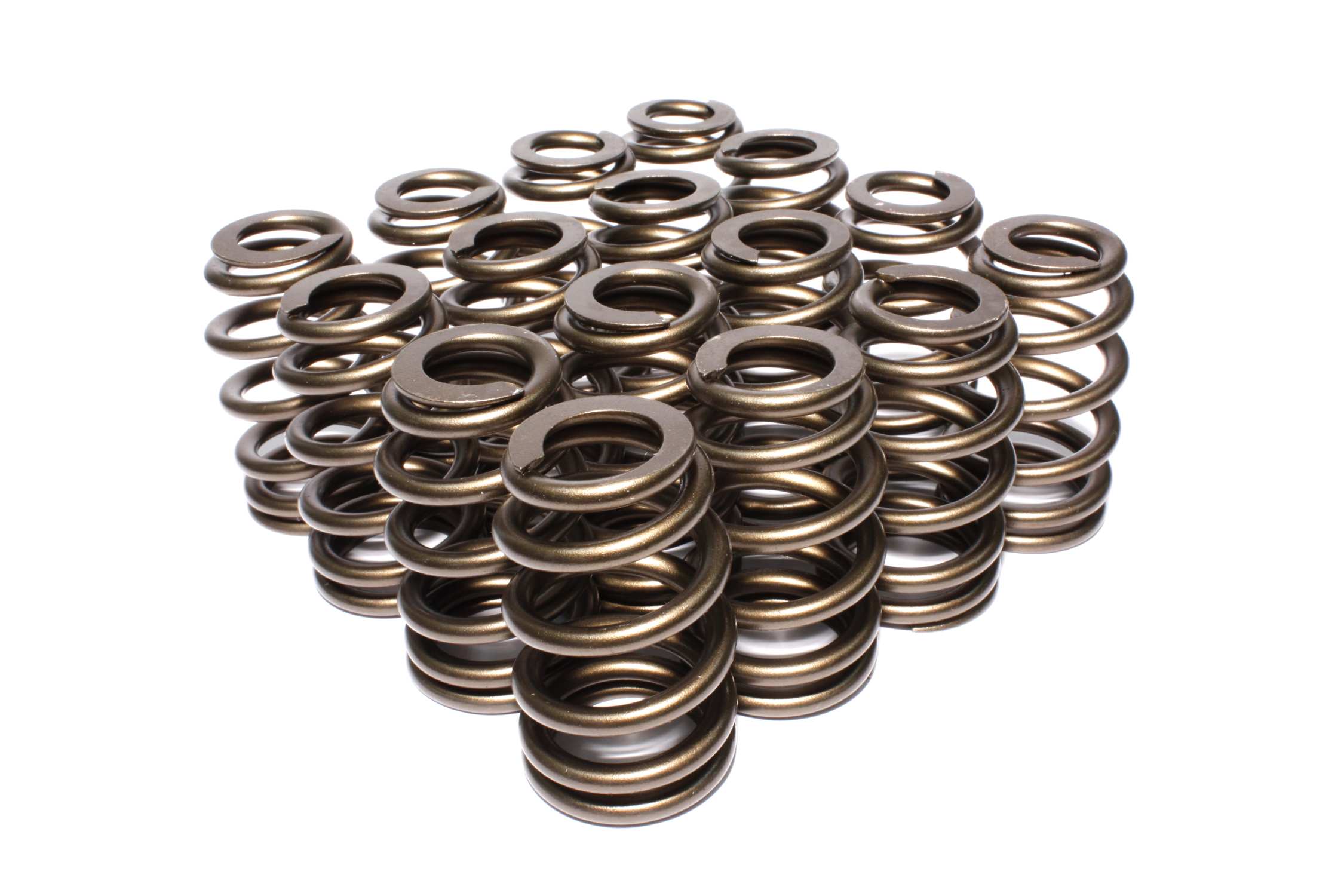

COMP Cams 26056-16 Beehive Valve Springs OD Installed Height - 1.454 1.800 16 Pack

(American Motors Javelin 1968-74, AMX 1968-70, 1978-79, Hornet 1970-77, Ambassador 1966-74, American 1966-68, Pacer 1978-79, Rebel 1966-70 + 8 more models)

Part of: COMP Cams Beehive Valve Springs OD Installed Height

Other options in this family: COMP Cams 26918-1 COMP Cams 26925-1 COMP Cams 7228-16 COMP Cams 26055-16 COMP Cams 26055-1

Manufacturer

Picture for manufacturer COMP Cams

Part Number

26056-16
7 reviews
Sale Price

$382.95

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 26056-16 Race Sportsman Beehive Valve Springs are designed for high-performance engine builds requiring precise valvetrain control. These beehive-style springs feature a 1.454-inch outer diameter and are engineered to provide excellent spring pressure while reducing valvetrain weight compared to traditional dual springs.

Key Specifications:

  • Outer Diameter: 1.454 inches
  • Installed Height: 1.800 inches
  • Beehive design for reduced reciprocating mass
  • Race Sportsman series construction
  • Quantity: 16 springs per set

These beehive valve springs are ideal for street/strip applications and moderate racing builds. The unique beehive shape allows for a smaller, lighter spring retainer which reduces valvetrain weight and inertia, helping to prevent valve float at higher RPMs. The 16-spring set provides enough springs for a complete V8 engine build.

Features and Benefits:

  • Reduced valvetrain weight improves high-RPM performance
  • Consistent spring pressure throughout lift range
  • Compatible with beehive-style retainers and locks
  • Precision wound from high-quality spring wire
  • Ideal for performance camshaft upgrades

When installing these springs, verify that your cylinder heads are machined for the correct spring seat diameter and that your camshaft specifications are compatible with the spring's pressure rating and installed height requirements. Always check piston-to-valve clearance and coil bind clearance during installation.

Products specifications

Fits

American Motors Javelin 1968-74, AMX 1968-70, 1978-79, Hornet 1970-77, Ambassador 1966-74, American 1966-68, Pacer 1978-79, Rebel 1966-70, Classic 1966, Gremlin 1972-76, Matador 1971-78, Concord 1978-79, Rambler 1969, Marlin 1966-67 + 2 more models

Number of Springs

1

Outer Bottom Spring Inside Diameter

1

Coil Bind Height

1.1

Seat Height

1.8

Seat Pressure

160

Spring Rate

400

Compatible Spring Cup (O.D. Locator)

4704-16

Compatible Shims

4757

Compatible Retainer

785-16

Damper

No

Outer Top Spring Inside Diameter

0.731

Outer Top Spring Outside Diameter

1.185

Outer Bottom Spring Outside Diameter

1.454

Compatible .570" Guide Diameter Spring Seats

4696-16

Compatible .630" Guide Diameter Spring Seats

4697-16

AMAZON ASIN

B002EE0BLS

Valve Spring Series

Race Sportsman

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
