COMP Cams 26055-1 Beehive Valve Spring OD Installed Height - 1.585 1.925

(GMC G2500 1987-95, Yukon 1992-95, K1500 1988-95, C1500 1988-95, K2500 1988-95, Jimmy 1987-91, C3500 1988-95, K2500 Suburban 1992-95 + 100 more models)

Part of: COMP Cams Beehive Valve Springs OD Installed Height

Other options in this family: COMP Cams 26056-16 COMP Cams 26918-1 COMP Cams 26925-1 COMP Cams 7228-16 COMP Cams 26055-16

Manufacturer

Picture for manufacturer COMP Cams

Part Number

26055-1
4 reviews
Sale Price

$35.95

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

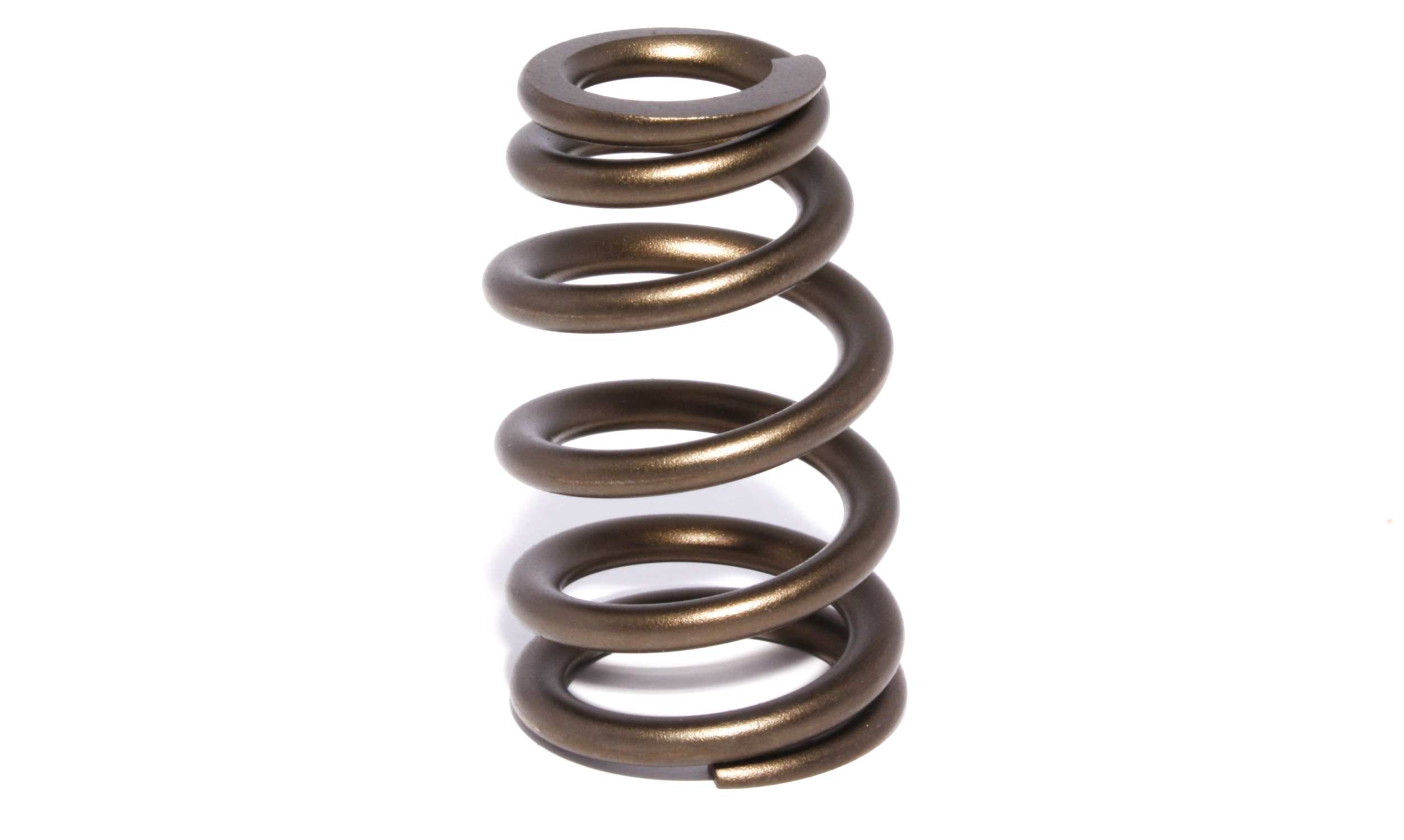

The COMP Cams 26055-1 Race Sportsman Beehive Valve Spring is a high-performance valve spring designed for racing and high-performance street applications. This single spring features a beehive design that reduces valvetrain weight while maintaining exceptional spring control at high RPM.

Key Specifications:

  • Outside Diameter (OD): 1.585 inches
  • Installed Height: 1.925 inches
  • Beehive design for reduced valvetrain mass
  • Race Sportsman series construction
  • Single spring configuration

The beehive spring design tapers from a larger diameter at the base to a smaller diameter at the top, allowing the use of lighter weight valve spring retainers and locks. This reduces overall valvetrain weight, which helps minimize valve float at high engine speeds and improves reliability. The Race Sportsman series is engineered for demanding applications where consistent valve control is critical for performance.

This valve spring is sold individually and is ideal for custom engine builds where precise spring selection is required to match camshaft specifications and engine operating range.

Products specifications

Fits

GMC G2500 1987-95, Yukon 1992-95, K1500 1988-95, C1500 1988-95, K2500 1988-95, Jimmy 1987-91, C3500 1988-95, K2500 Suburban 1992-95, K3500 1988-95, C2500 1988-95, K1500 Suburban 1992-95, G25/G2500 Van 1987-95, C1500 Suburban 1992-95 + 95 more models

Number of Springs

1

Outer Bottom Spring Inside Diameter

1.102

Coil Bind Height

1.225

Seat Height

1.925

Seat Pressure

150

Spring Rate

400

Compatible .570" Guide Diameter Spring Seat

4640-1

Compatible .630" Guide Diameter Spring Seat

4697-1

Compatible Spring Cup (O.D. Locator)

4702-1

Compatible Shims

4757

Compatible Retainer

785-1

Damper

No

Outer Top Spring Inside Diameter

0.721

Outer Top Spring Outside Diameter

1.204

Outer Bottom Spring Outside Diameter

1.585

AMAZON ASIN

B001GBO8BY

Valve Spring Series

Race Sportsman

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
