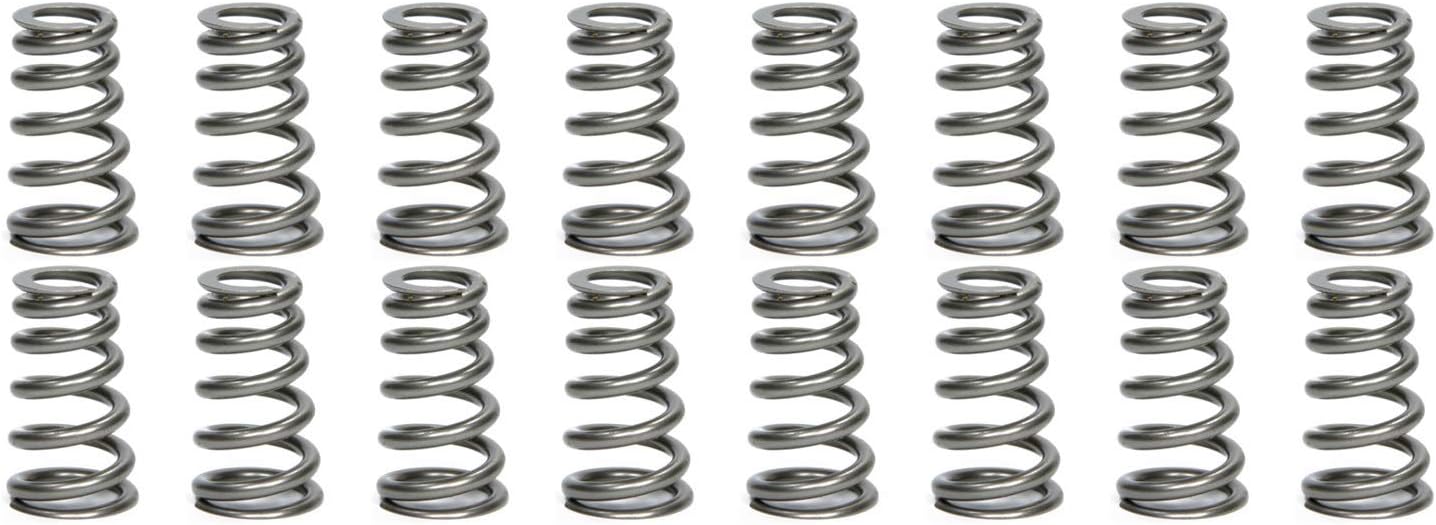

COMP Cams 7228-16 Beehive Valve Springs OD Installed Height - 1.290 1.800 16 Pack

Part of: COMP Cams Beehive Valve Springs OD Installed Height

Other options in this family: COMP Cams 26056-16 COMP Cams 26918-1 COMP Cams 26925-1 COMP Cams 26055-16 COMP Cams 26055-1

Manufacturer

Picture for manufacturer COMP Cams

Part Number

7228-16
20 reviews
Sale Price

$376.95

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 7228-16 Race/Street Beehive Valve Springs are high-performance conical springs designed for demanding street and racing applications. These springs feature a 1.290" outer diameter with a beehive (conical) design that reduces valvetrain weight and friction while maintaining excellent valve control at high RPM.

Key Specifications:

  • Outer Diameter: 1.290"
  • Installed Height: 1.800"
  • Conical/beehive design for reduced weight
  • Optimized for street/strip performance camshafts
  • Quantity: 16 springs (typical for V8 applications)

Features and Benefits:

  • Beehive design reduces valvetrain mass by allowing smaller, lighter retainers
  • Progressive rate design provides excellent valve control
  • Reduced side loading on valve guides extends component life
  • Suitable for hydraulic roller and flat tappet camshafts
  • Precision wound from high-quality chrome silicon alloy wire

These springs are ideal for enthusiasts upgrading to performance camshafts who need reliable valve control without the complexity of dual springs. The 16-spring kit provides enough springs for a complete V8 engine. Always verify spring pressure and coil bind specifications match your camshaft requirements.

Products specifications

Number of Springs

1

Outer Bottom Spring Inside Diameter

0.918

Coil Bind Height

1.125

Seat Height

1.8

Seat Pressure

136

Spring Rate

440

Compatible Shims

4753

Compatible Retainer

788-16

Damper

No

Outer Top Spring Inside Diameter

0.662

Outer Top Spring Outside Diameter

1.03

Outer Bottom Spring Outside Diameter

1.286

Compatible .570" Guide Diameter Spring Seats

4677-16

AMAZON ASIN

B00IGJ2744

Valve Spring Series

Race/Street

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
