COMP Cams 26120-1 Beehive Valve Spring OD Installed Height - 1.444 1.880

(Ford F-150 1975-81, Mustang 1969-73, F-250 1975-94, Bronco 1978-81, Thunderbird 1968-79, F-350 1975-94, Galaxie 500 1969-74, F-100 1975-81 + 221 more models)

Part of: COMP Cams Beehive Valve Springs OD Installed Height

Other options in this family: COMP Cams 26056-16 COMP Cams 26918-1 COMP Cams 26925-1 COMP Cams 7228-16 COMP Cams 26055-16

Manufacturer

Picture for manufacturer COMP Cams

Part Number

26120-1
7 reviews
Sale Price

$29.95

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

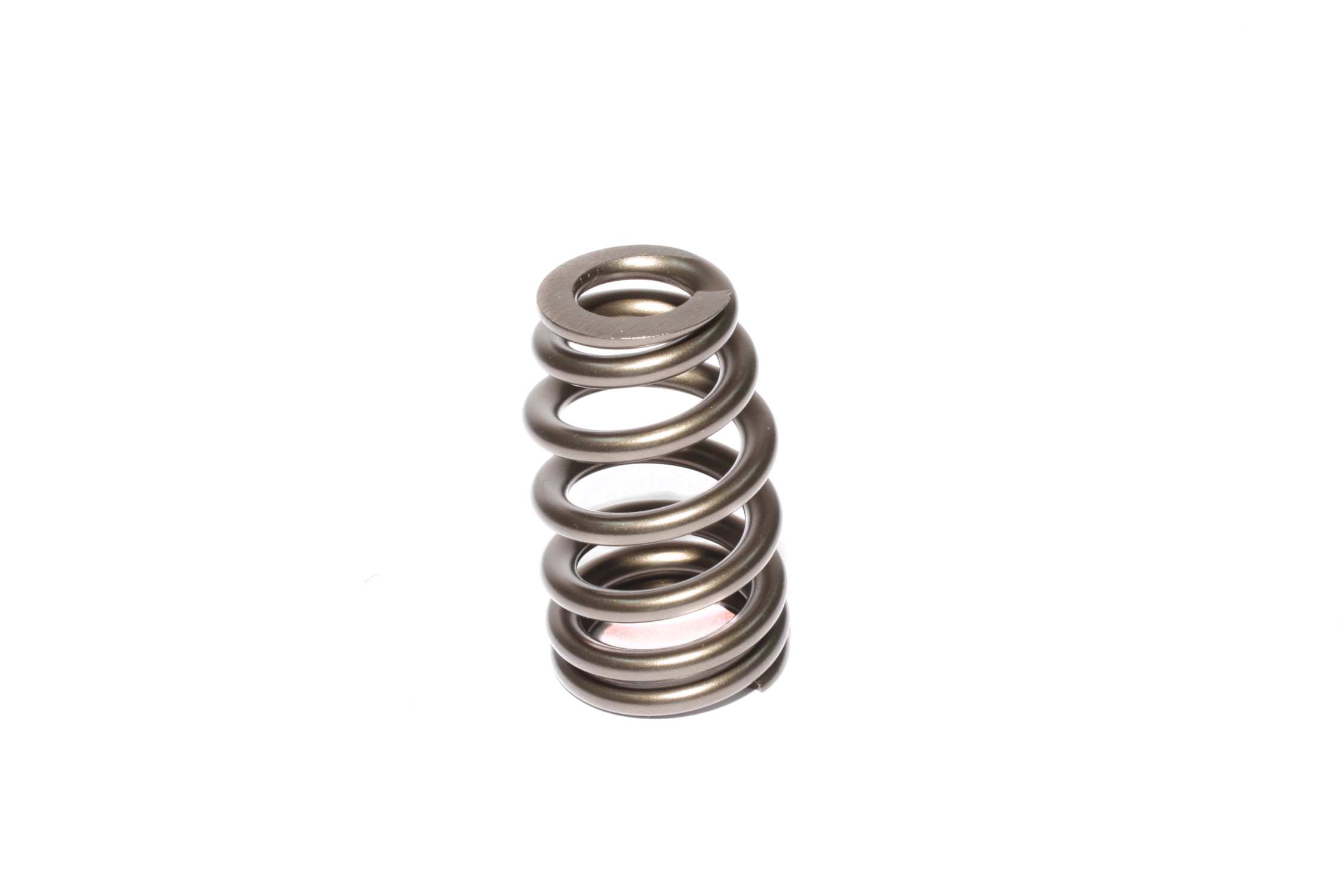

The COMP Cams 26120-1 is a high-performance beehive valve spring designed for race and street applications. This single spring features a 1.444-inch outer diameter and requires a 1.880-inch installed height for proper valve train geometry.

Key Features:

  • Beehive design reduces valve train mass and friction for improved performance
  • 1.444-inch outer diameter fits small block Chevy and similar applications
  • 1.880-inch installed height specification ensures proper spring pressure
  • High-quality chrome silicon steel construction for durability and heat resistance
  • Single spring design suitable for street performance and mild racing applications
  • Compatible with COMP Cams valve spring retainers and locks

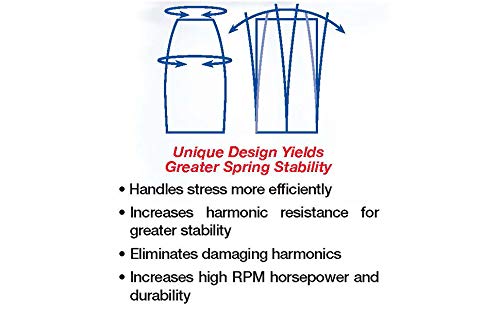

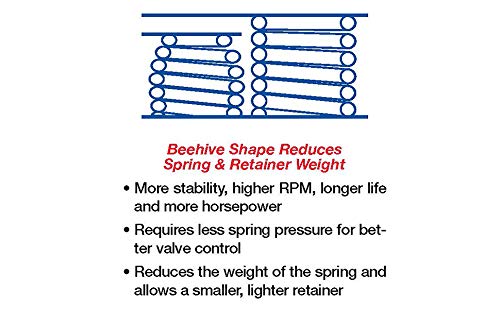

The beehive spring design tapers from a wider diameter at the base to a narrower diameter at the top, allowing for lighter retainers and reduced reciprocating weight. This results in higher RPM capability and reduced valve train wear compared to traditional dual spring setups.

Products specifications

Fits

Ford F-150 1975-81, Mustang 1969-73, F-250 1975-94, Bronco 1978-81, Thunderbird 1968-79, F-350 1975-94, Galaxie 500 1969-74, F-100 1975-81, F-250 Pickup 1973-94, Fairlane 1970, Ranchero 1970-79, Torino 1970-76, Falcon 1970 + 216 more models

Number of Springs

1

Outer Bottom Spring Inside Diameter

1

Coil Bind Height

1.23

Seat Height

1.88

Seat Pressure

155

Spring Rate

370

Compatible .570" Guide Diameter Spring Seat

4696-1

Compatible .630" Guide Diameter Spring Seat

4697-1

Compatible Spring Cup (O.D. Locator)

4698-1

Compatible Shims

4754

Compatible Retainer

795-1

Damper

No

Outer Top Spring Inside Diameter

0.65

Outer Top Spring Outside Diameter

1.059

Outer Bottom Spring Outside Diameter

1.444

AMAZON ASIN

B000P5DB24

Valve Spring Series

Race/Street

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
