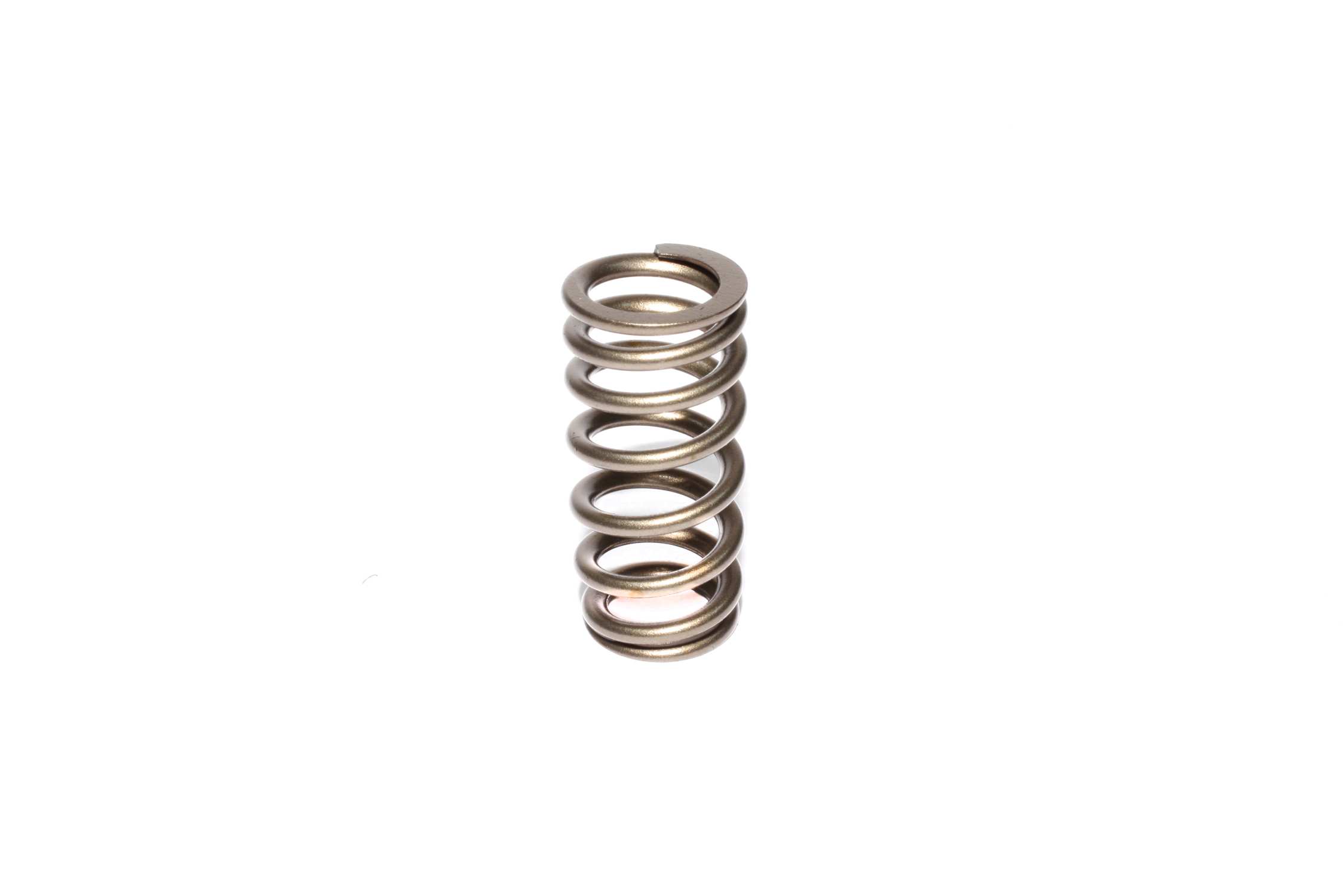

COMP Cams 26113-1 Beehive Valve Spring OD Installed Height - 1.061 1.570

(Ford F-150 1997-2010, Mustang 1996-2007, 2011-16, F-250 Super Duty 1999-2004, Explorer 2002-07, F-350 Super Duty 1999-2004 + 38 more models)

Part of: COMP Cams Beehive Valve Springs OD Installed Height

Other options in this family: COMP Cams 26056-16 COMP Cams 26918-1 COMP Cams 26925-1 COMP Cams 7228-16 COMP Cams 26055-16

Manufacturer

Picture for manufacturer COMP Cams

Part Number

26113-1
6 reviews
Sale Price

$28.95

4 left at this price

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 26113-1 is a performance street beehive valve spring designed to provide reliable valve control for street and mild performance applications. This single spring features a compact beehive design that reduces valve train mass while maintaining consistent pressure throughout the valve's operating range.

Key Specifications:

  • Outside Diameter: 1.061 inches
  • Installed Height: 1.570 inches
  • Beehive design for reduced weight and friction
  • Single spring construction
  • Engineered for street performance applications

The beehive spring design tapers from a larger diameter at the base to a smaller diameter at the retainer, allowing for a smaller, lighter retainer and reduced side loading on the valve stem. This results in less friction, improved valve train stability, and reduced wear compared to traditional cylindrical springs. Ideal for upgrading stock valve springs or pairing with performance camshafts in street-driven engines.

Products specifications

Fits

Ford F-150 1997-2010, Mustang 1996-2007, 2011-16, F-250 Super Duty 1999-2004, Explorer 2002-07, F-350 Super Duty 1999-2004, Expedition 1997-2004, F-250 1997-99, Crown Victoria 1992-2011, Excursion 2000-05, Thunderbird 1994-97 + 33 more models

Number of Springs

1

Outer Bottom Spring Inside Diameter

0.738

Coil Bind Height

1.01

Seat Height

1.64

Spring Rate

191

Seat Pressure

79.91

Compatible Retainer

792-1

Damper

No

Outer Top Spring Inside Diameter

0.65

Outer Top Spring Outside Diameter

0.959

Outer Bottom Spring Outside Diameter

1.061

AMAZON ASIN

B001R9FISW

Valve Spring Series

Performance Street

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
