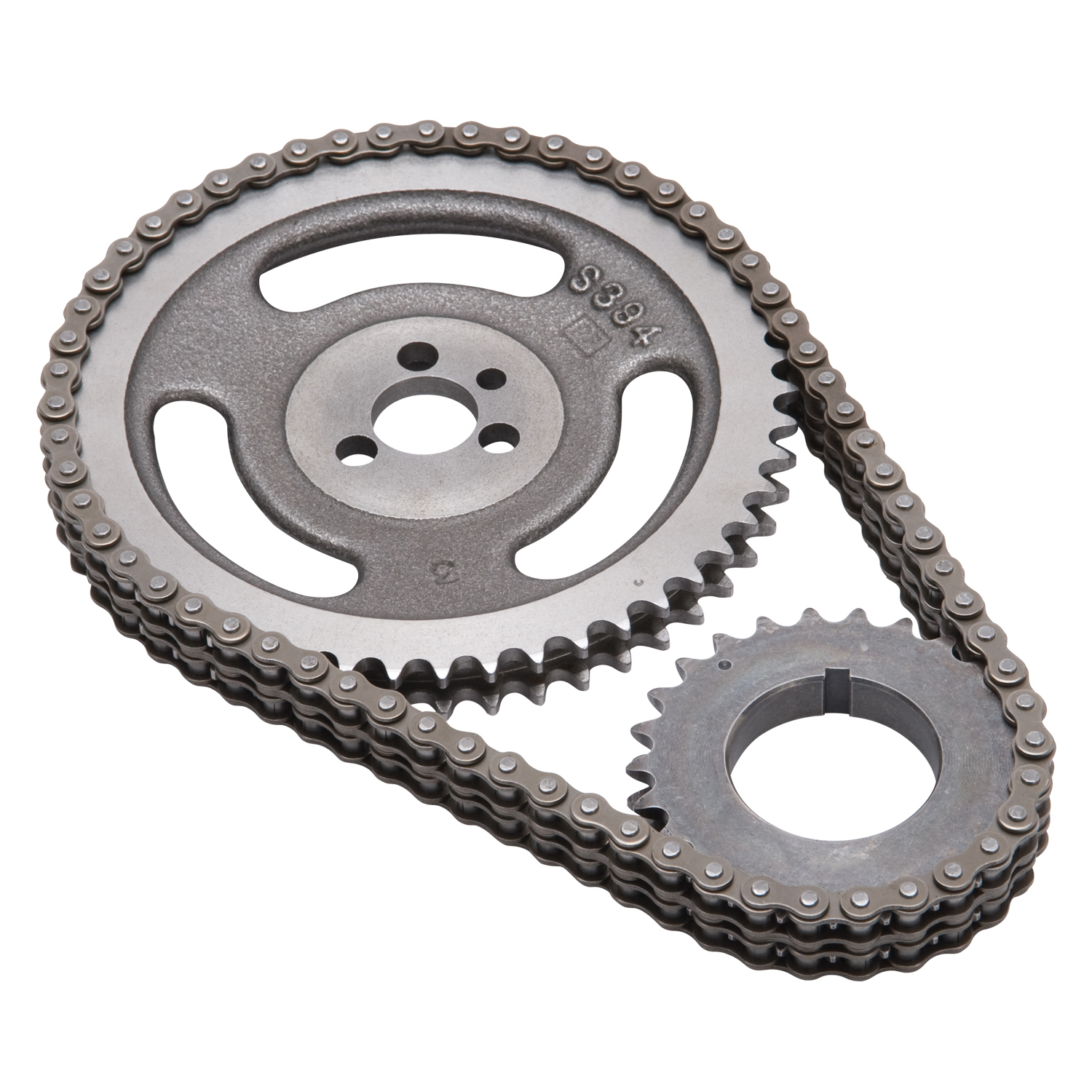

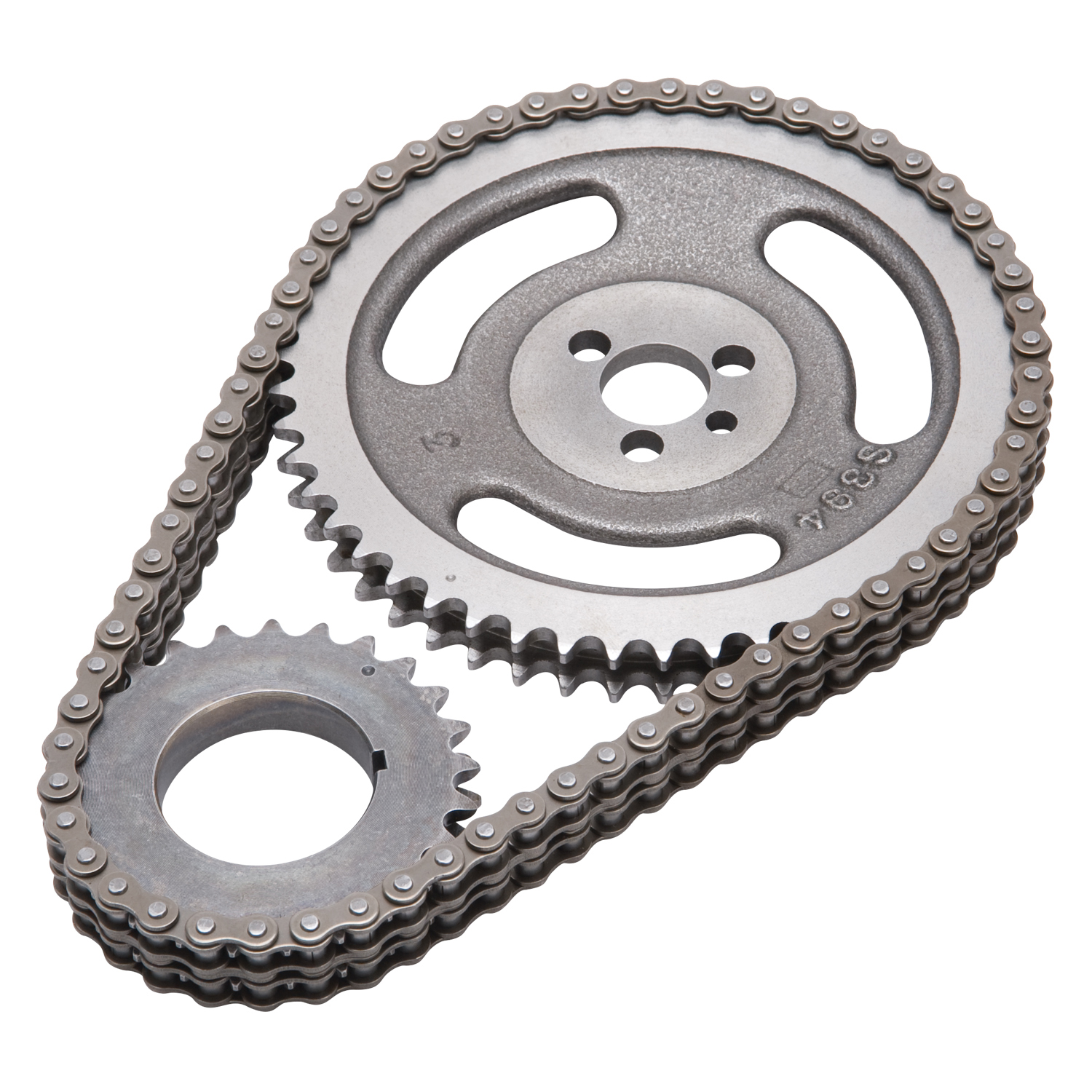

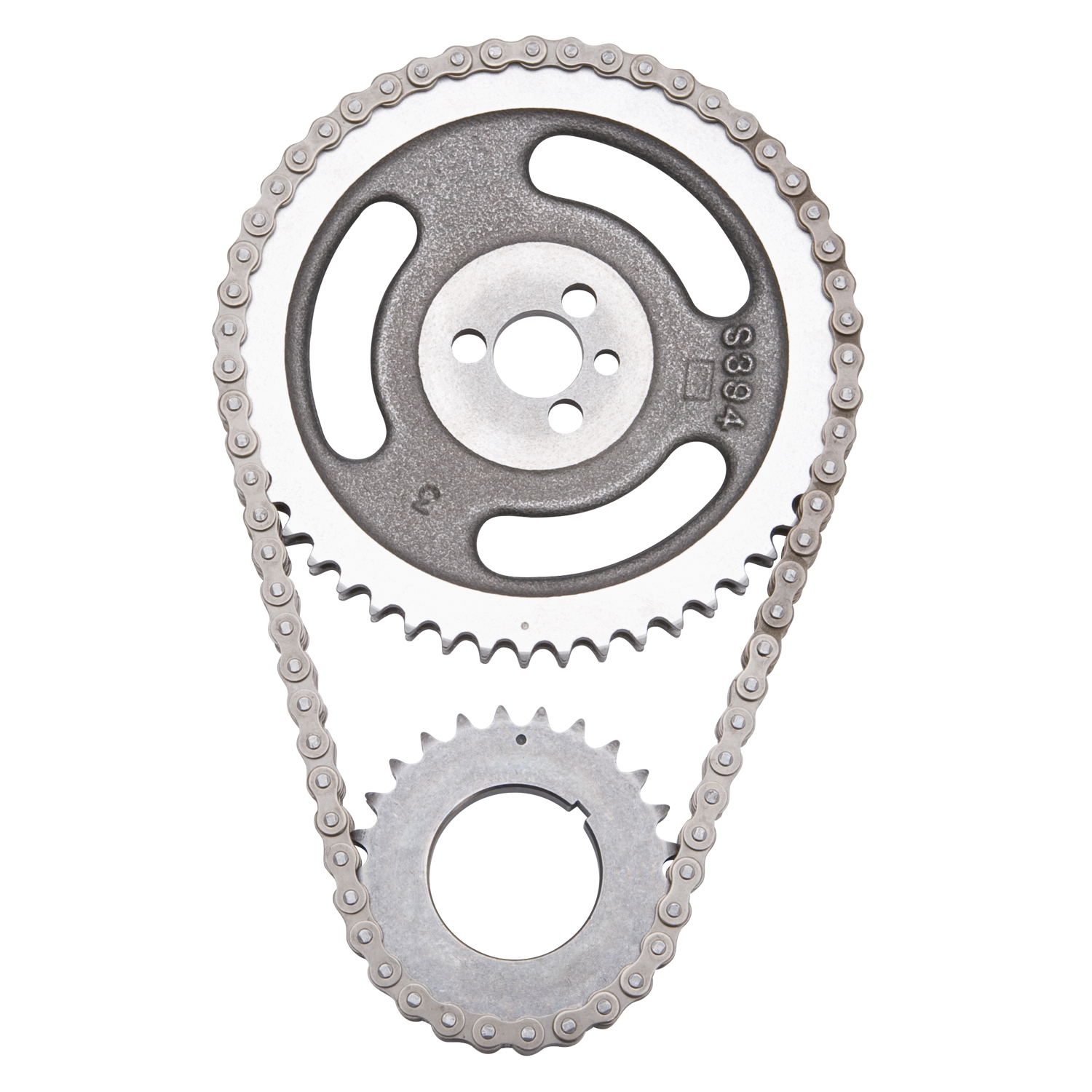

Edelbrock 7809 Performer-Link Adjustable True-Roller Timing Chain Set

The Edelbrock 7809 Performer-Link timing chain set delivers reliable performance for street and mild performance applications with Edelbrock or stock camshafts. This timing set features a solid-bushing true-roller chain design that creates a genuine bearing surface rolling with the sprockets, effectively eliminating chain stretch for consistent valve timing throughout the engine's life.

Key Features:

• True-roller chain with solid bushings eliminates stretch and maintains accurate valve timing
• Cam sprocket manufactured from 35,000 psi tensile strength cast iron for durability
• Crank sprocket precision-machined from billet SAE-1144 steel with induction heat treatment
• Three keyway setting points allow timing adjustment for early or late-model applications
• Engineered for reliable operation up to 6,500 rpm
• Direct replacement design for straightforward installation

Installation Notes:

• Never hammer directly on chain or sprockets; use a protective sleeve or brass drift punch, alternating blows to prevent cocking
• Do not stretch chain with screwdriver during installation
• Verify clearance between timing chain and block, and between chain and front cover before reassembly
• Ensure cam and crank sprockets are properly aligned to prevent premature chain failure

This Performer-Link timing set provides an excellent upgrade from standard roller chains for engines requiring dependable timing control in street performance applications.
