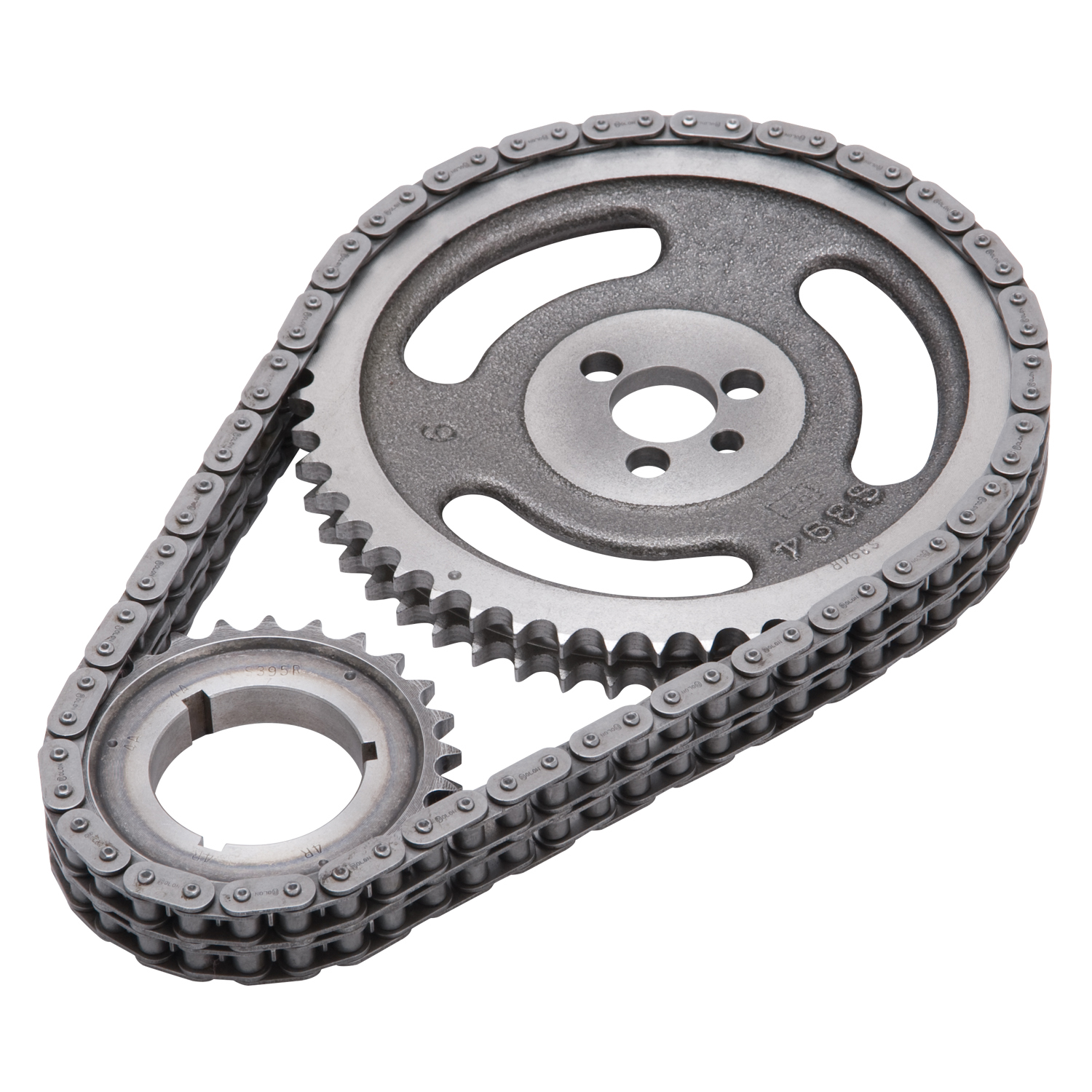

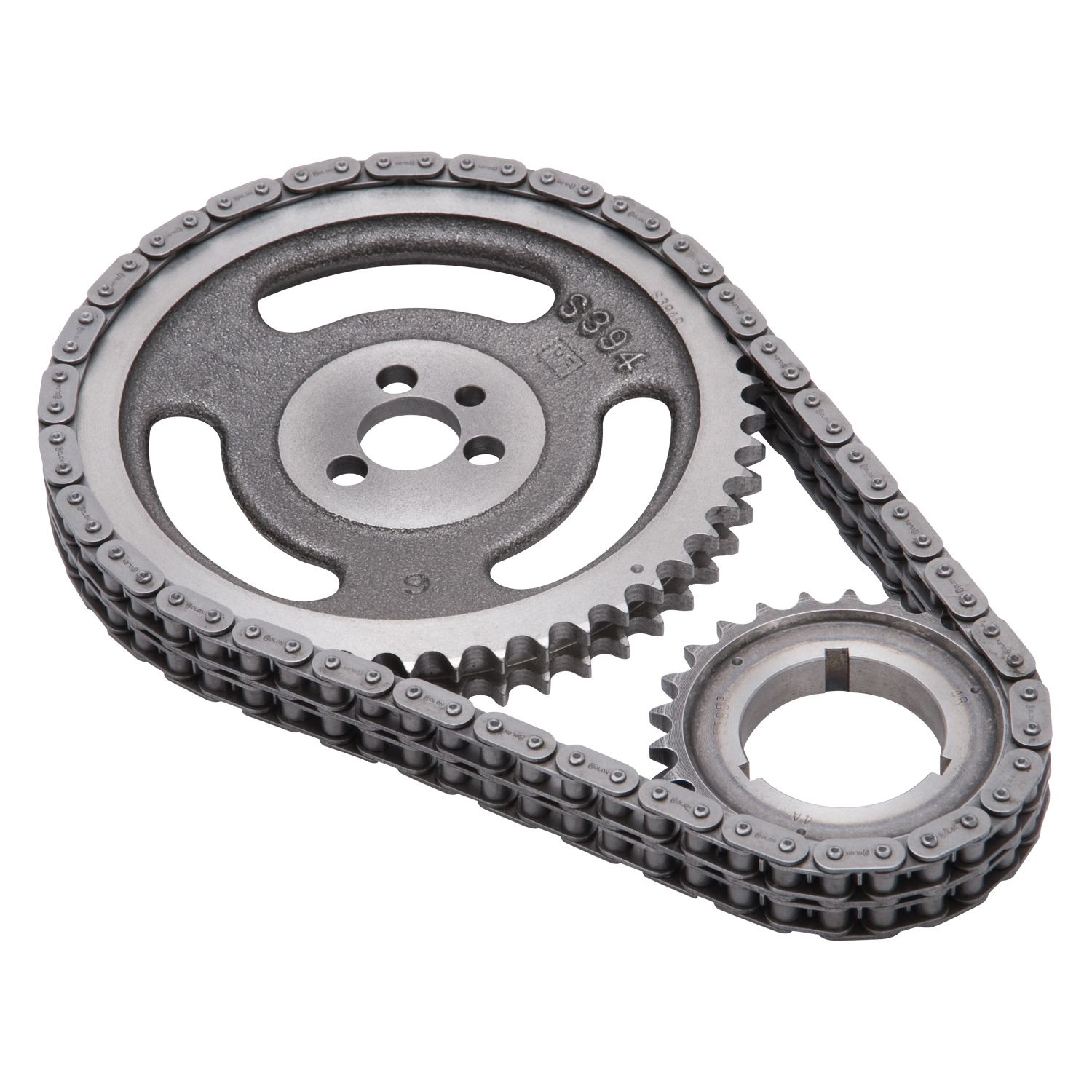

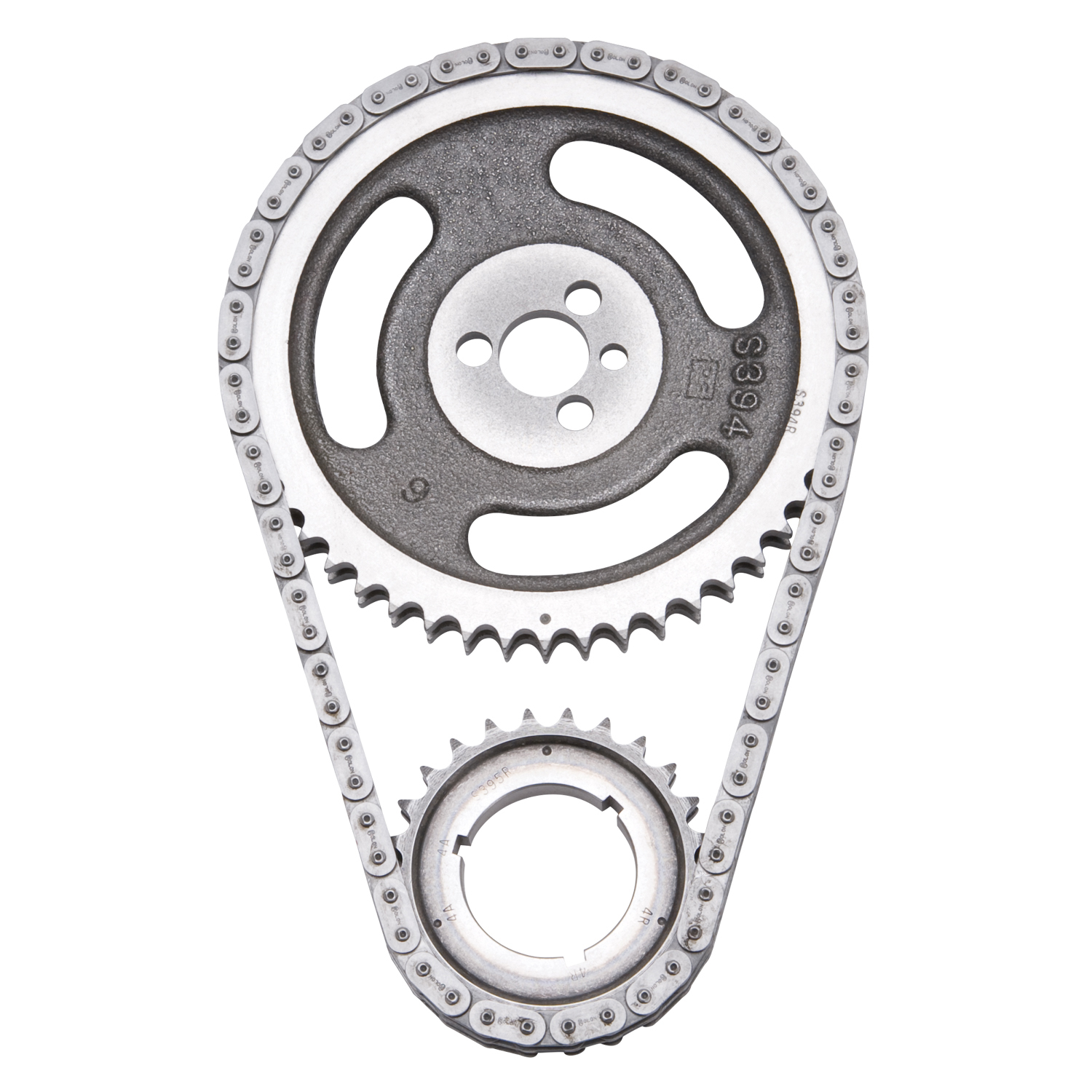

Edelbrock 7810 Performer-Link Adjustable True-Roller Timing Chain Set

The Edelbrock 7810 Performer-Link timing chain set is engineered for use with Edelbrock or stock camshafts, providing reliable valve timing in performance and stock engine applications. This timing set features a solid-bushing true-roller chain design that creates a genuine bearing surface which rolls with the sprockets, effectively eliminating chain stretch and ensuring consistent timing accuracy.

Key Features:

• True-roller chain with solid-bushing design eliminates stretch for reliable long-term performance
• Cam sprocket constructed from high-strength cast iron with 35,000 psi tensile strength
• Crank sprocket machined from billet SAE-1144 steel with induction heat treatment for maximum durability
• Three keyway setting points allow accurate timing adjustment for early or late-model applications
• Engineered for operation up to 6,500 rpm maximum engine speed
• Direct replacement design for straightforward installation

Installation Notes:

• Never hammer directly on chain or sprockets as this can crack hardened components and cause premature failure
• Use a sleeve for installations requiring hammering, or carefully use a brass drift punch with alternating blows to prevent cocking
• Verify clearance between timing chain and engine block, as well as between chain and front cover before final assembly
• Ensure both cam and crank sprockets are precisely aligned to prevent chain breakage
• Do not stretch chain with screwdriver during installation

This timing set provides a reliable upgrade from standard roller chains while maintaining compatibility with stock and performance camshafts. The adjustable keyway design offers flexibility for fine-tuning ignition timing on various engine builds.
