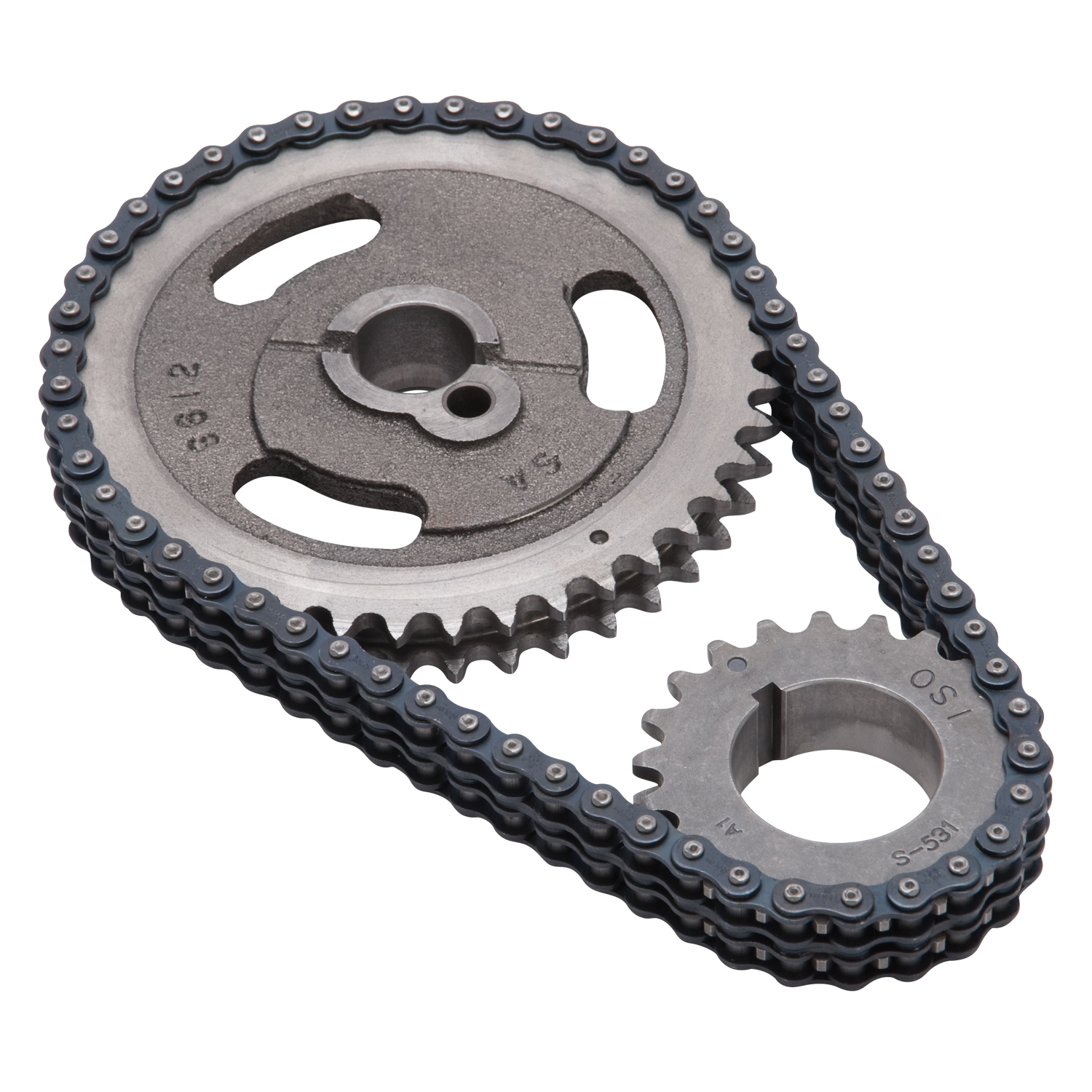

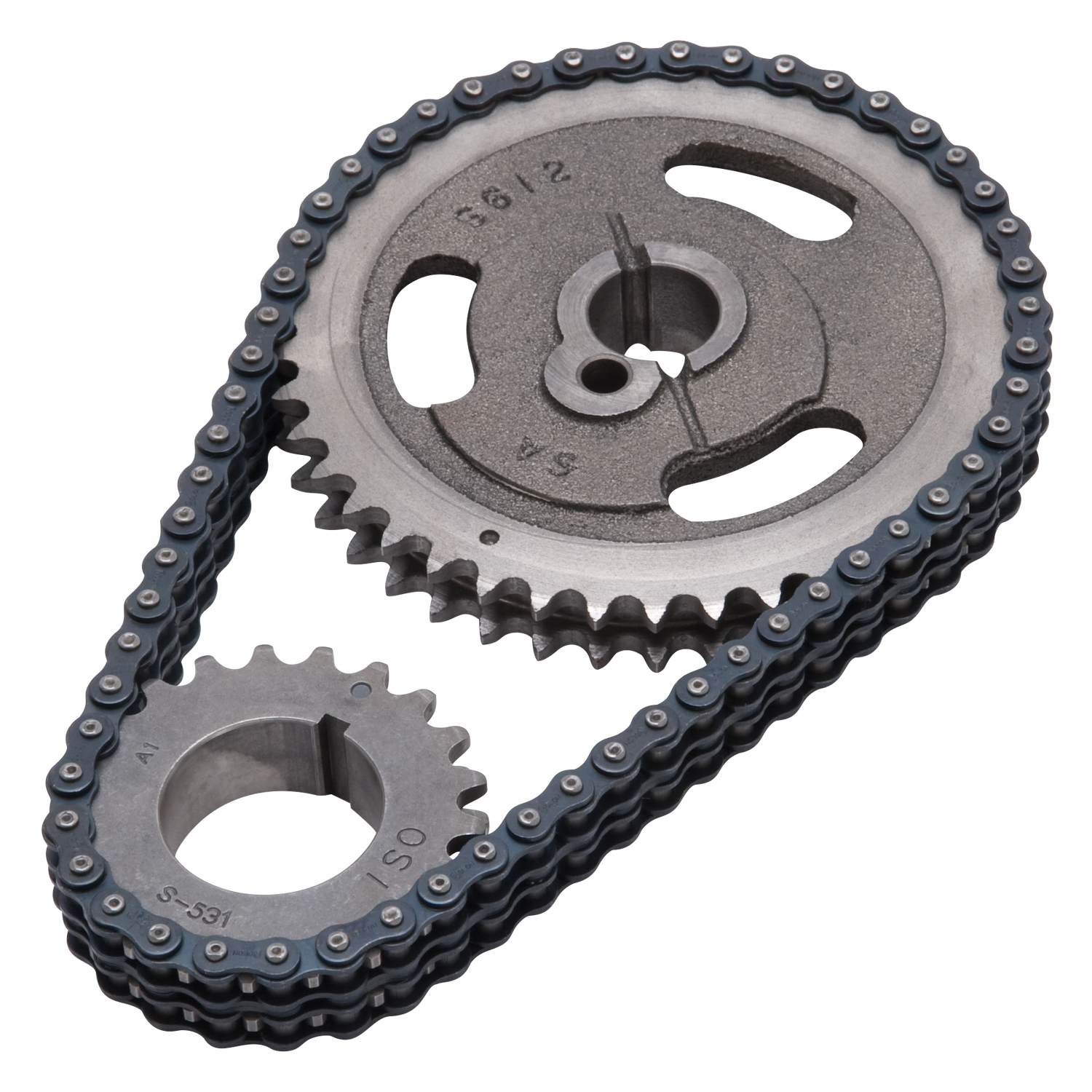

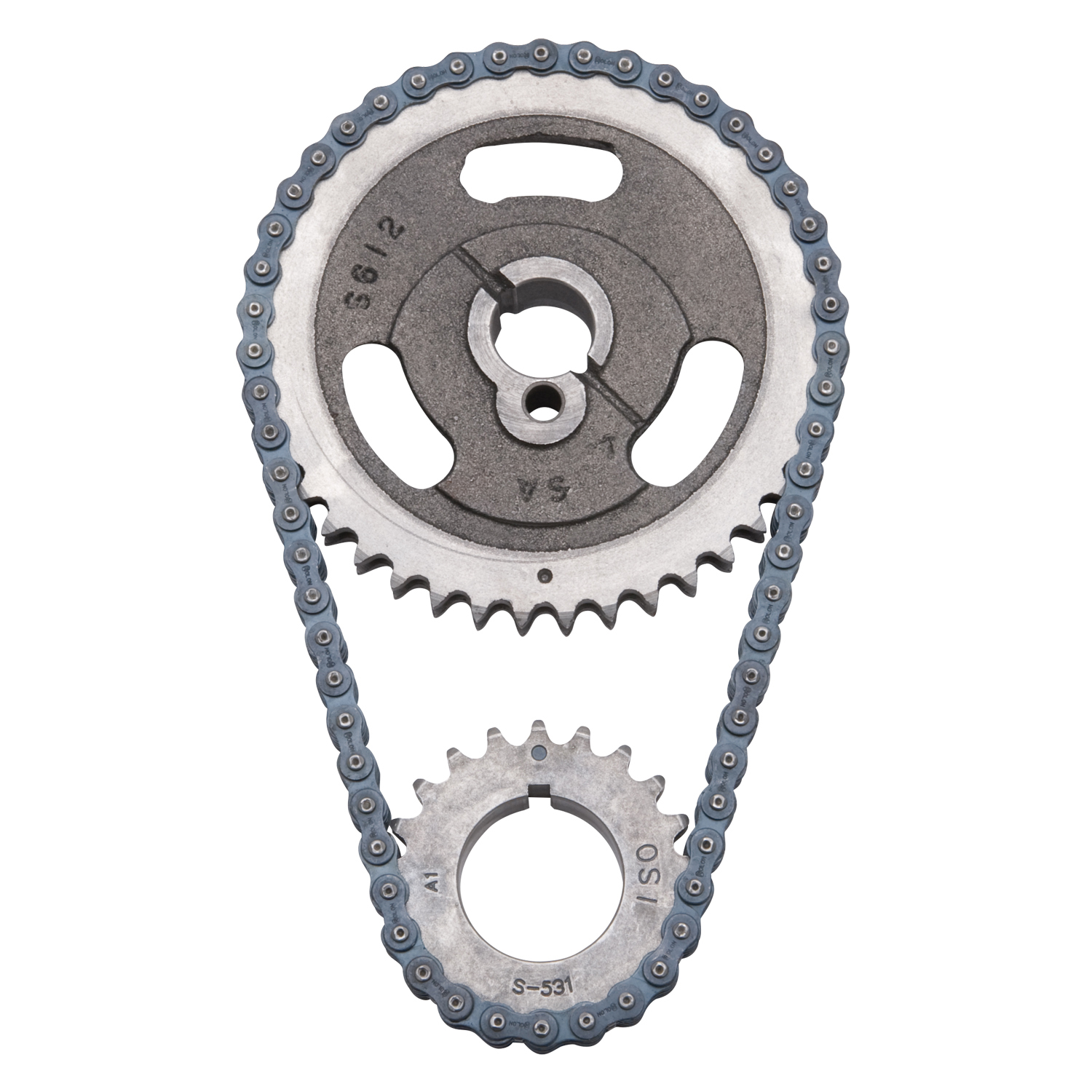

Edelbrock 7814 Performer-Link Adjustable True-Roller Timing Chain Set

The Edelbrock 7814 Performer-Link timing chain set is engineered for use with Edelbrock or stock camshafts, delivering reliable performance up to 6500 rpm. This precision timing set features a solid-bushing chain design that creates a true bearing surface, rolling smoothly with the sprockets to eliminate chain stretch and ensure long-lasting durability.

Key Features:

• True-roller design with solid-bushing chain eliminates stretch for consistent timing
• Cam sprockets manufactured from 35,000 psi tensile strength cast iron for durability
• Crank sprockets machined from billet SAE-1144 steel with induction heat treatment
• Three keyway setting points provide adjustable timing for early or late-model applications
• Engineered for reliable operation up to 6500 rpm maximum
• Precision-matched components ensure proper alignment and performance

Installation Notes:

• Never hammer directly on chain or sprockets—use a sleeve or brass drift punch, alternating blows to prevent cocking
• Verify clearance between timing chain and engine block, as well as between chain and front cover before final assembly
• Ensure both cam and crank sprockets are properly aligned to prevent chain breakage
• Do not stretch the chain with a screwdriver during installation

This timing set provides the precision and durability needed for street performance applications while maintaining compatibility with stock and aftermarket Edelbrock camshafts.
