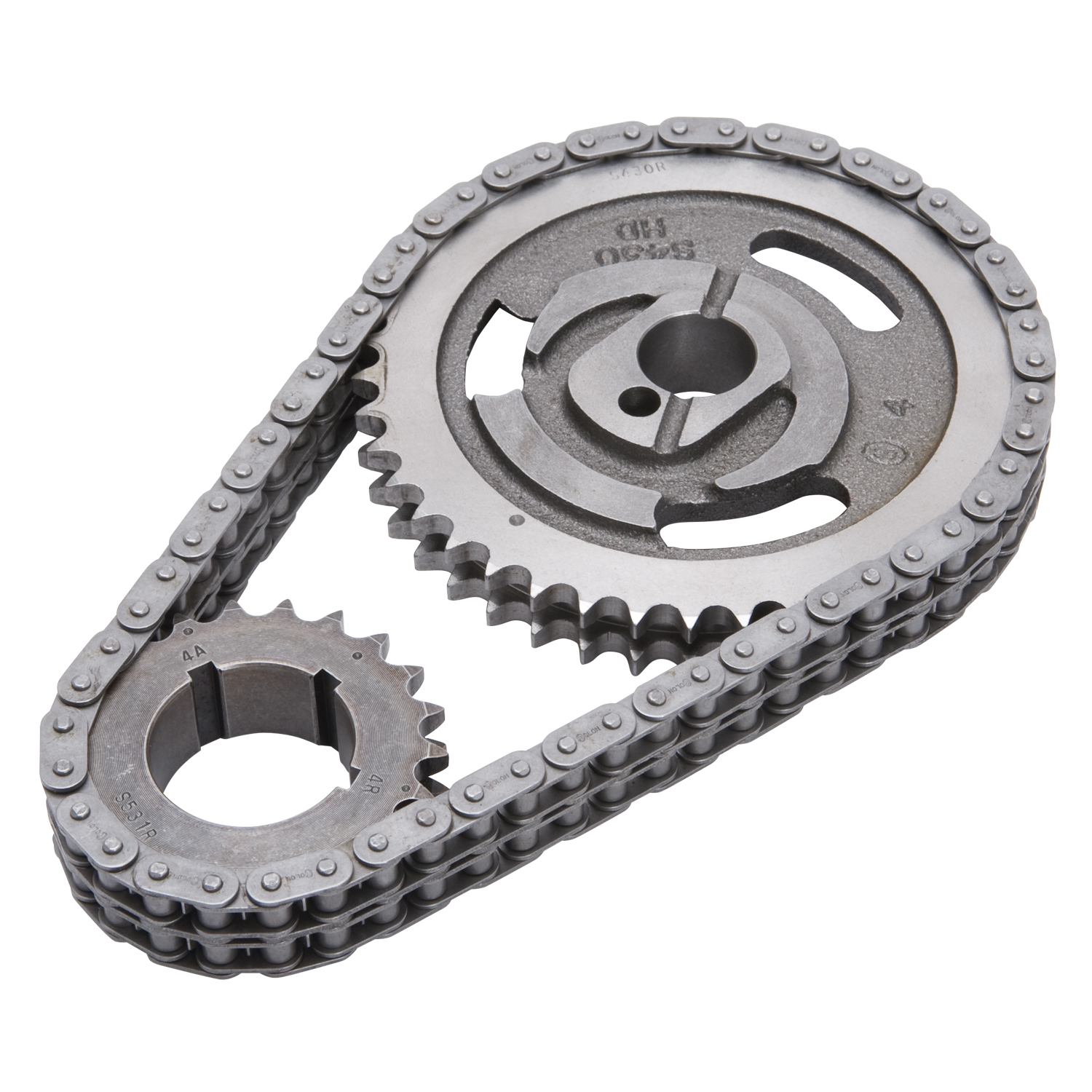

Edelbrock 7811 Performer-Link Adjustable True-Roller Timing Chain Set

The Edelbrock 7811 Performer-Link timing chain set is engineered for use with Edelbrock or stock camshafts and delivers reliable performance up to 6500 RPM. This precision timing set features a solid-bushing chain design that creates a true bearing surface, rolling smoothly with the sprockets to eliminate chain stretch and ensure consistent valve timing throughout the engine's operating range.

Premium Construction:

• Cam sprockets manufactured from 35,000 PSI tensile strength cast iron for durability
• Crank sprockets precision-machined from billet SAE-1144 steel with induction heat treatment
• True-roller design with solid bushings eliminates chain stretch
• Three keyway setting points allow accurate timing adjustment for early or late-model applications
• Select models are stock replacement parts and 50-state emissions legal

Installation Guidelines:

• Never hammer directly on chain or sprockets—use a sleeve or brass drift punch, alternating blows to prevent cocking
• Do not stretch the chain with a screwdriver during installation
• Verify clearance between timing chain and engine block, and between chain and front cover before final assembly
• Ensure cam and crank sprockets are precisely aligned to prevent premature chain failure
• Maximum recommended operating speed: 6500 RPM

This timing set provides the reliability and precision needed for street performance applications while maintaining compatibility with stock and aftermarket camshafts.
