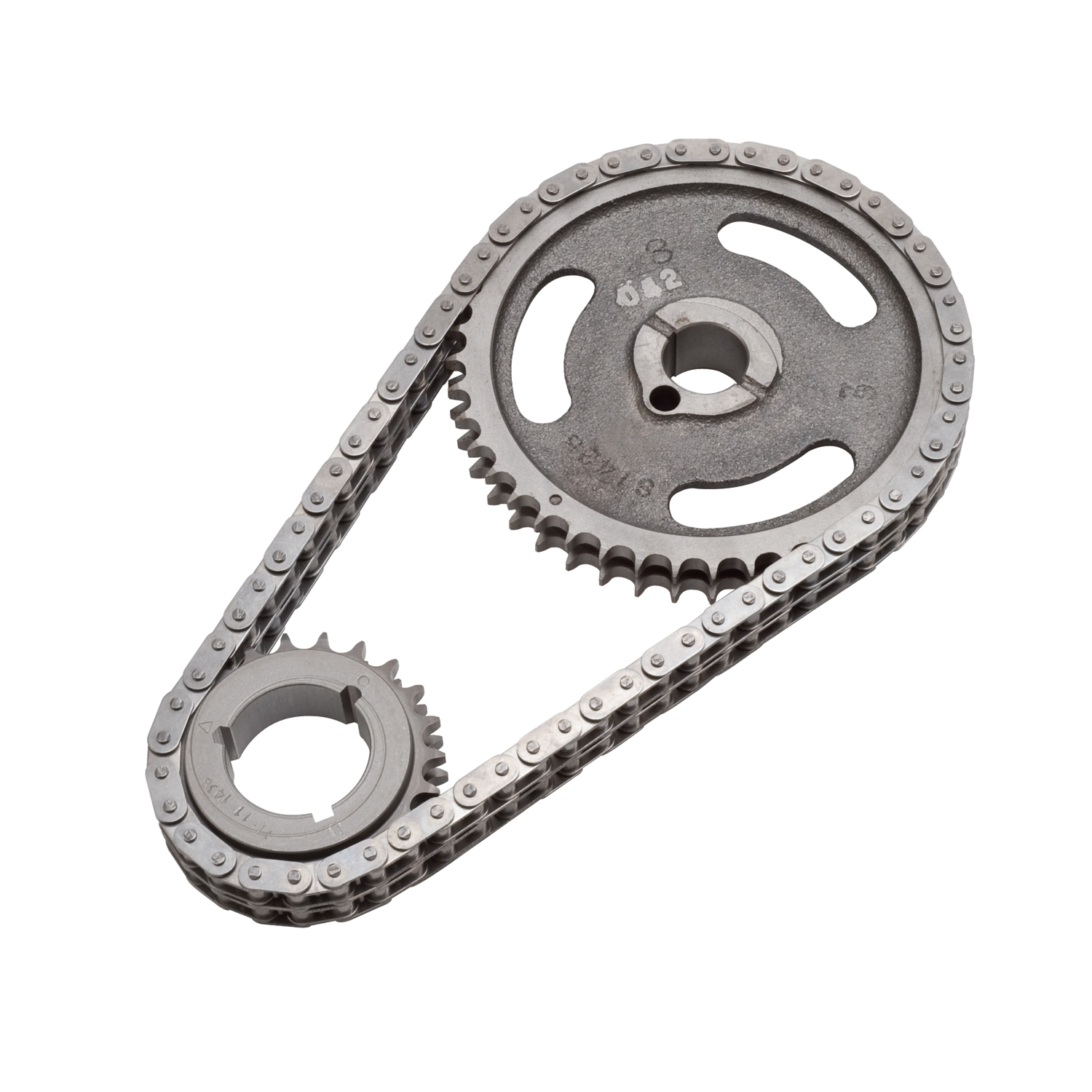

Edelbrock 7830 Performer-Link Adjustable True-Roller Timing Chain Set

The Edelbrock 7830 Performer-Link timing chain set is designed for use with Edelbrock or stock camshafts, delivering reliable performance for street engines operating up to 6500 rpm. This precision timing set features innovative solid-bushing chain technology that creates a true bearing surface, rolling smoothly with the sprockets to eliminate chain stretch and maintain accurate valve timing.

Premium Construction:

• True-roller chain design with solid bushings for a genuine bearing surface that prevents stretch
• Cam sprocket manufactured from high-strength cast iron with 35,000 psi tensile strength
• Crank sprocket machined from billet SAE-1144 steel with induction heat treatment for superior durability
• Adjustable design with three keyway setting points for precise timing adjustment on early or late-model engines
• Engineered for reliable operation up to 6500 rpm maximum

Installation Notes:

• Never hammer directly on the chain or sprockets—use a sleeve or brass drift punch, alternating blows to prevent cocking
• Do not stretch the chain with a screwdriver during installation
• Verify clearance between timing chain and engine block, and between chain and front cover before final assembly
• Ensure cam and crank sprockets are precisely aligned to prevent premature chain failure

This timing set provides an excellent upgrade over standard timing chains for street performance applications, offering improved durability and consistent timing accuracy for optimized engine performance.
