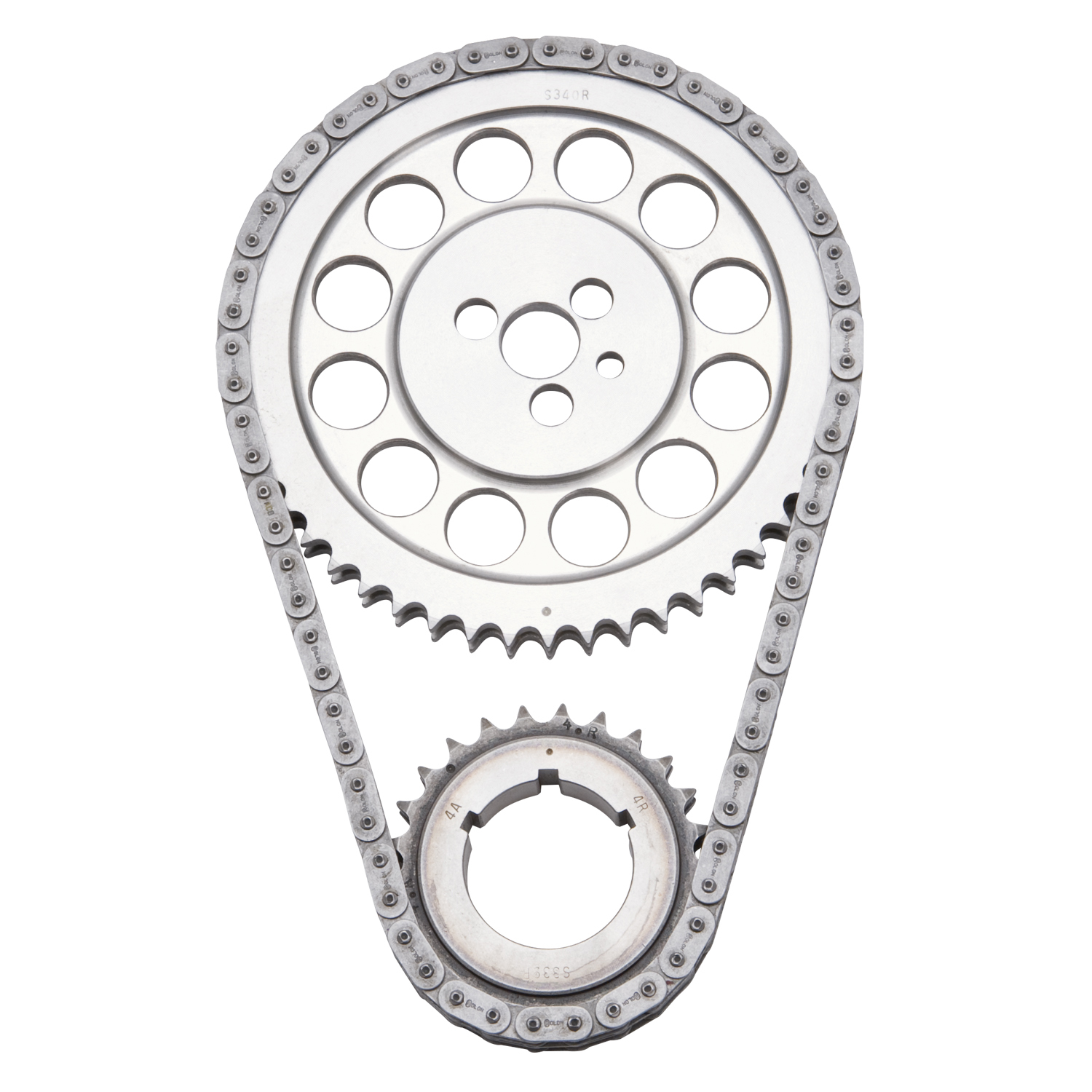

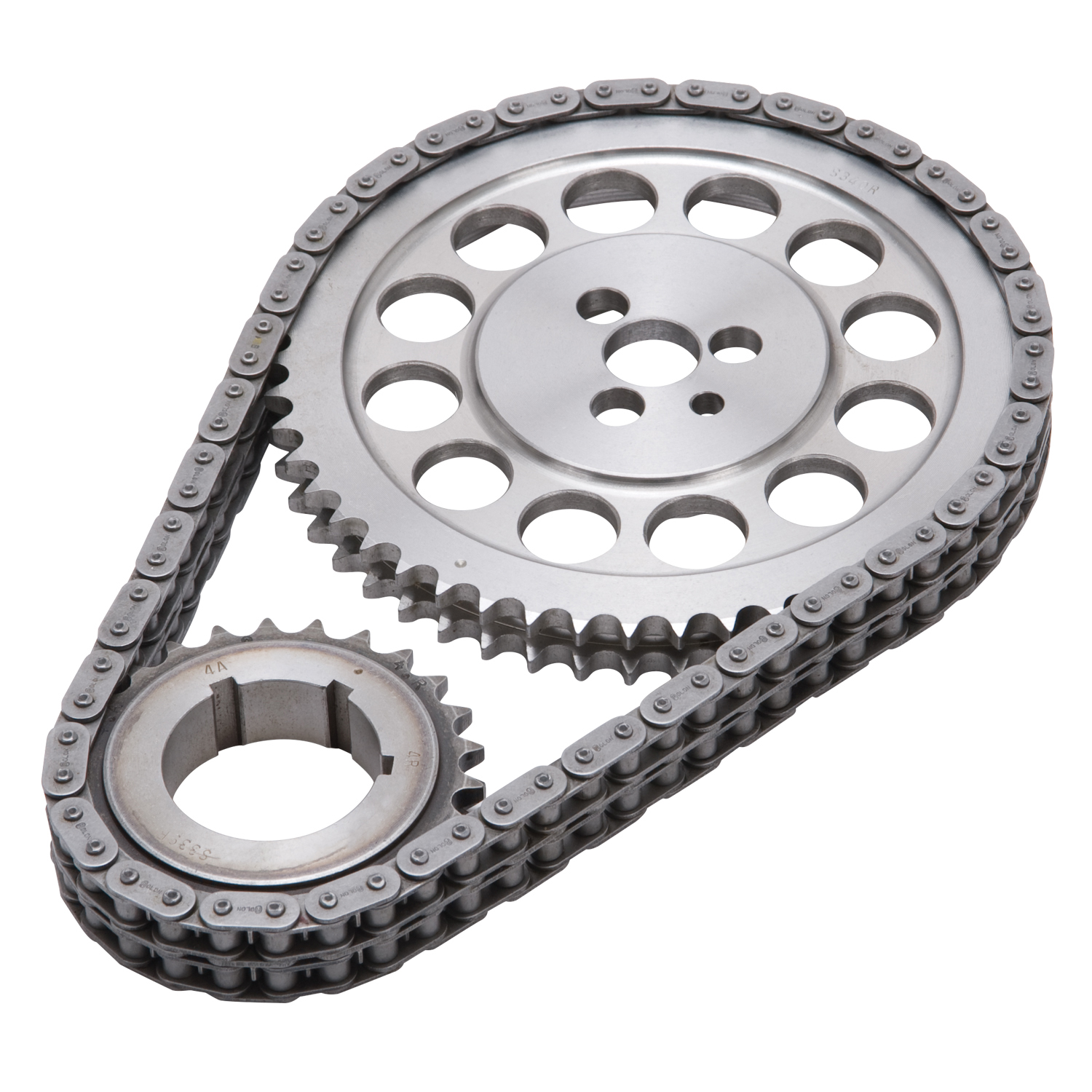

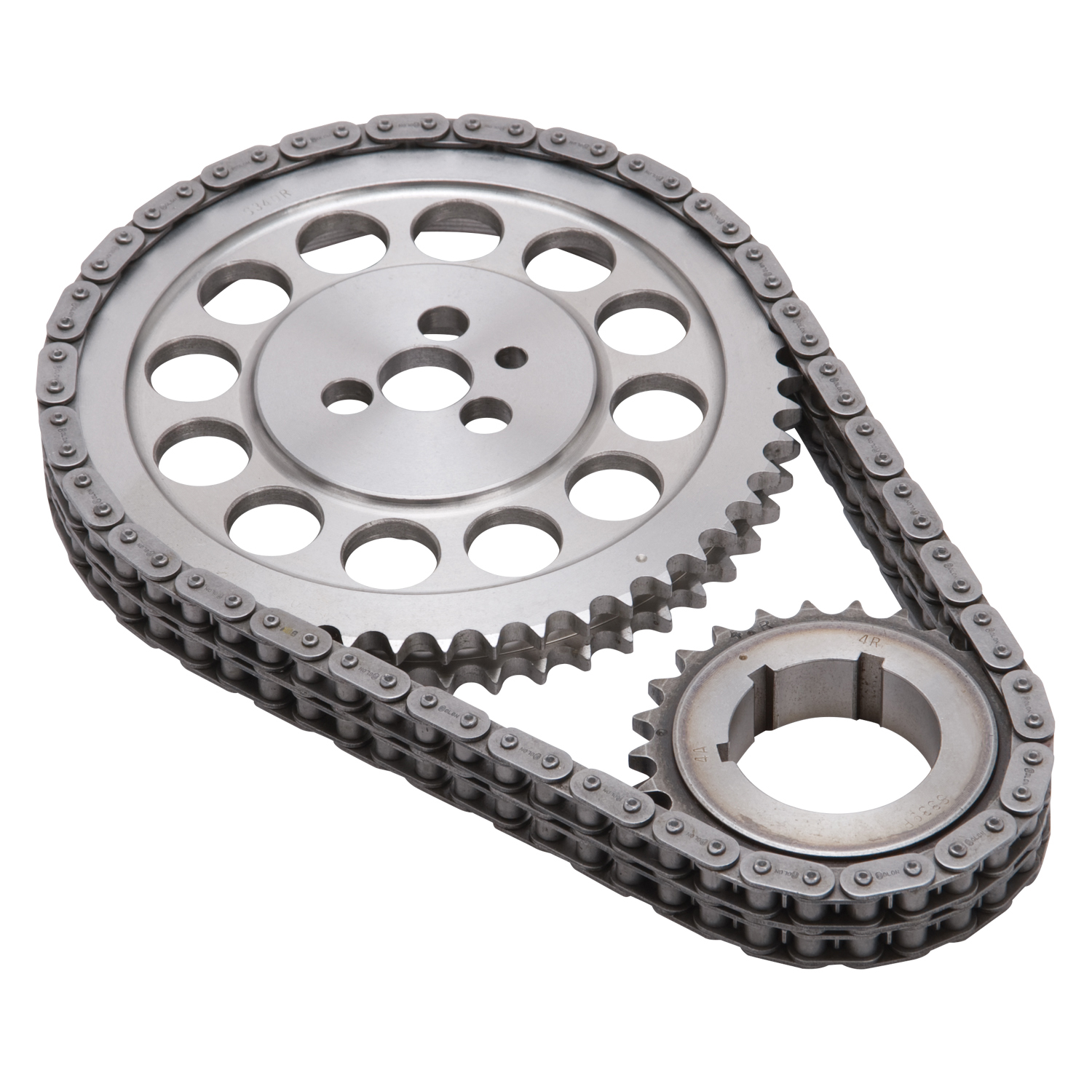

Edelbrock 7805 Performer-Link Adjustable True-Roller Timing Chain Set

The Edelbrock 7805 Performer-Link timing chain set is engineered for use with Edelbrock or stock camshafts in performance and stock rebuilds. This true-roller timing chain features a solid-bushing design that creates a genuine bearing surface rolling with the sprockets, effectively eliminating chain stretch for reliable long-term performance.

Premium Construction:

• Cam sprocket manufactured from high-strength 35,000 PSI tensile cast iron
• Crank sprocket machined from billet SAE-1144 steel with induction heat treatment
• Solid-bushing roller chain for true bearing surface operation
• Three keyway setting points for accurate timing adjustment on early or late-model engines

Performance Specifications:

• Engineered for reliable operation up to 6,500 RPM
• Adjustable timing settings via multiple keyway positions
• Eliminates chain stretch common with traditional roller chains

Installation Notes:

• Never hammer directly on chain or sprockets—use a sleeve or brass drift punch, alternating blows to prevent cocking
• Do not stretch chain with screwdriver during installation
• Verify clearance between timing chain and block, and between chain and front cover before final assembly
• Ensure cam and crank sprockets are precisely aligned to prevent premature chain failure
• Not recommended for applications exceeding 6,500 RPM

This timing set provides the durability and precision needed for performance street applications while maintaining compatibility with stock and aftermarket Edelbrock camshafts.
