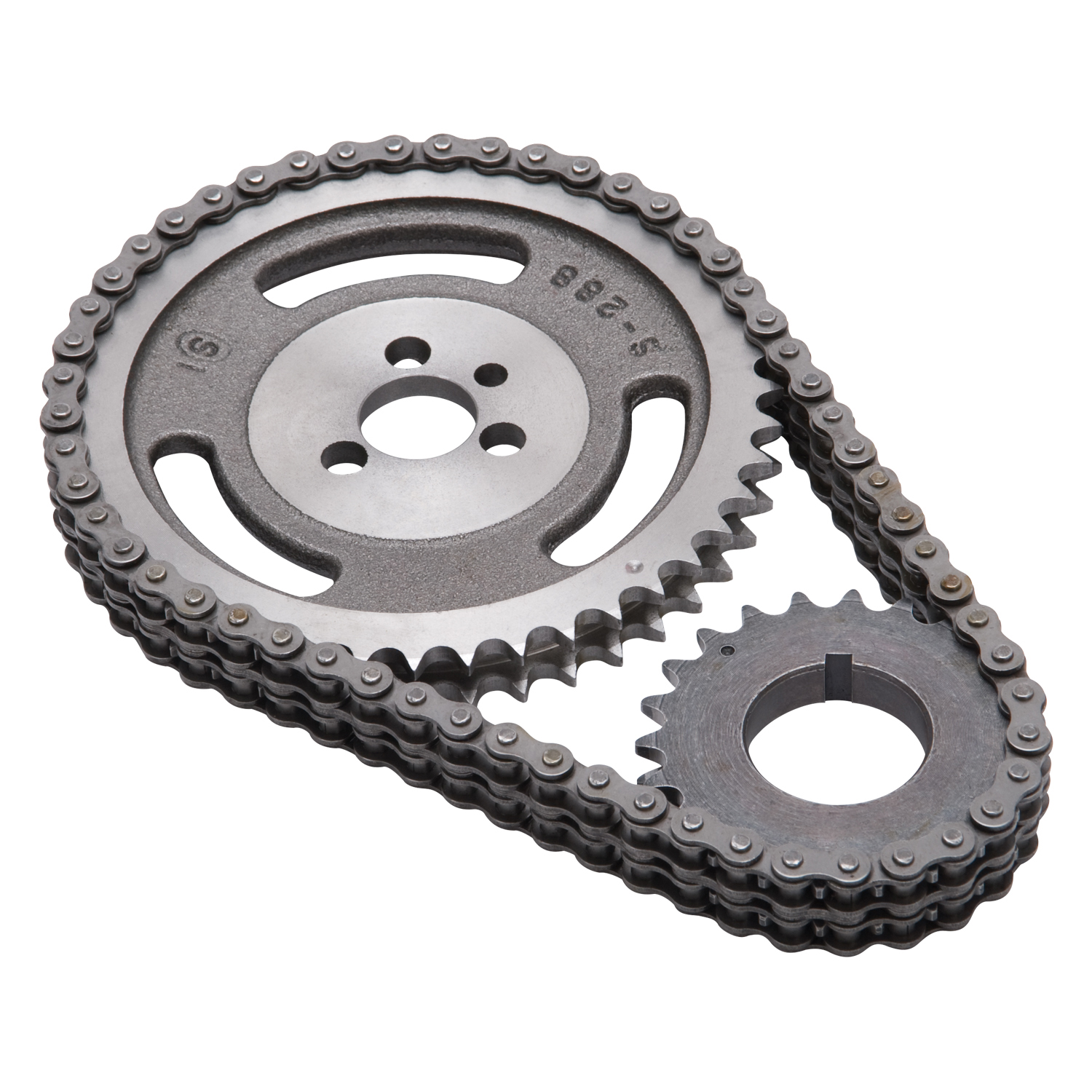

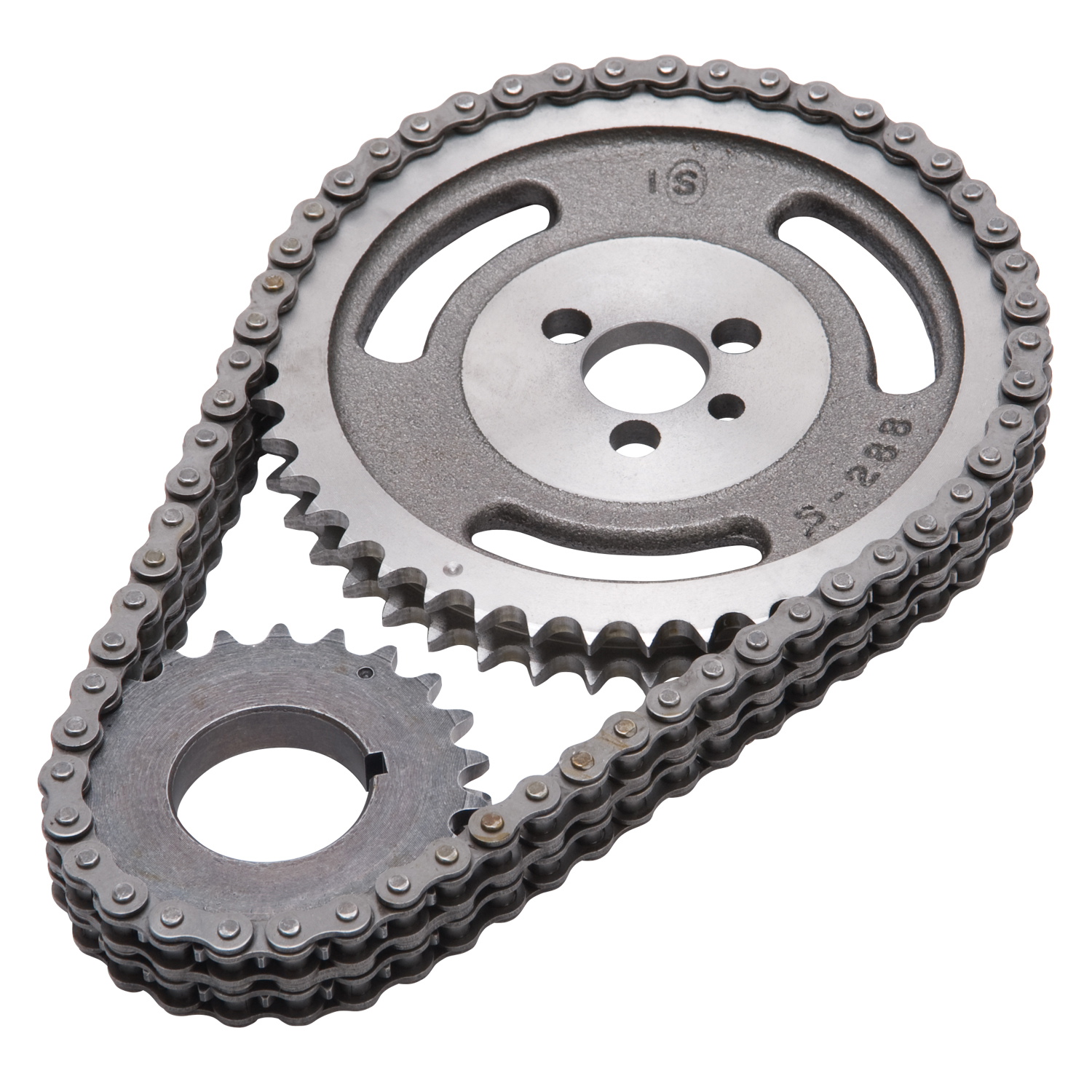

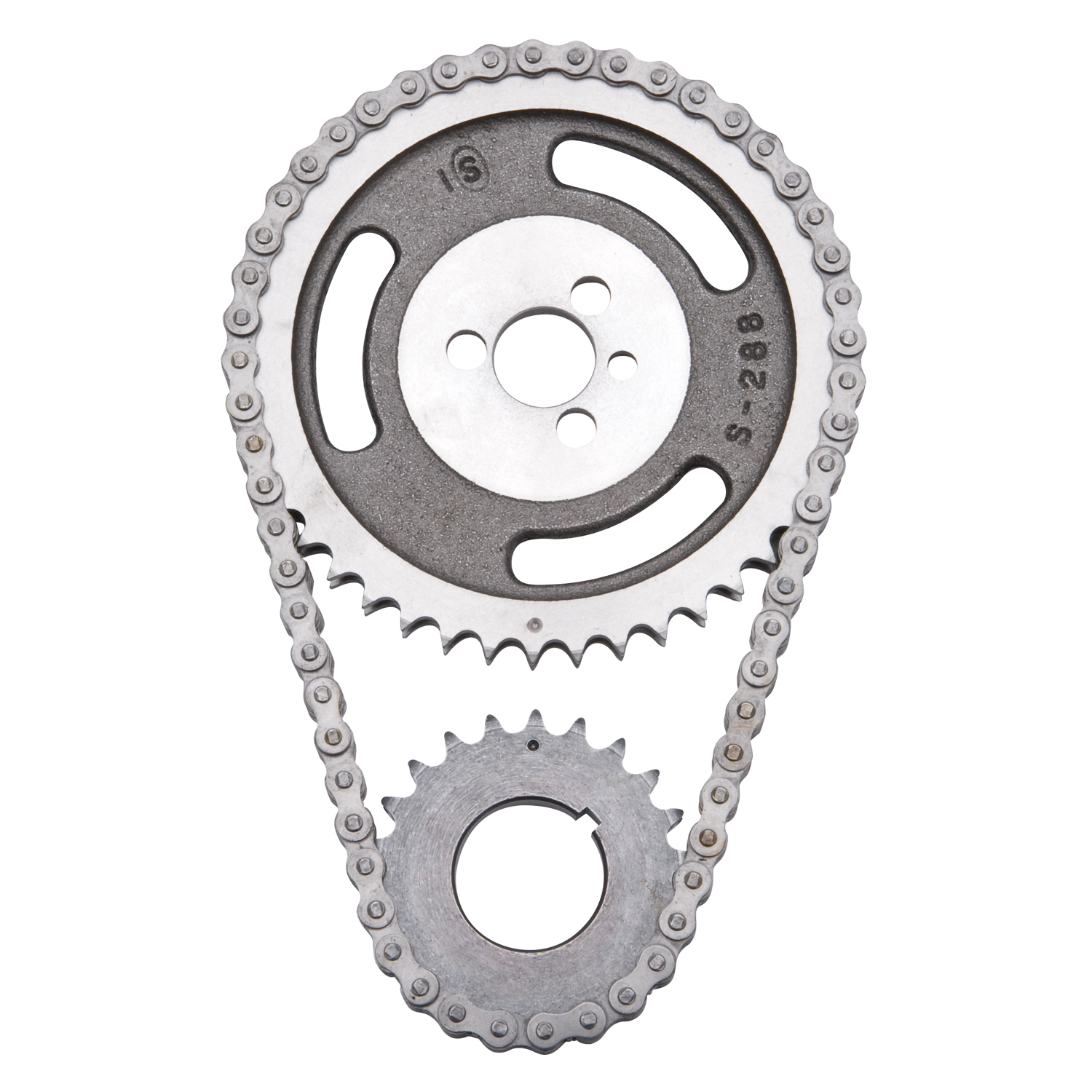

Edelbrock 7802 Performer-Link Adjustable True-Roller Timing Chain Set

The Edelbrock 7802 Performer-Link timing chain set delivers reliable performance for street engines running up to 6500 RPM. Designed for use with Edelbrock or stock camshafts, this timing set features a solid-bushing roller chain that creates a true bearing surface, rolling smoothly with the sprockets to eliminate chain stretch and ensure accurate valve timing.

Key Features:

• True-roller design with solid-bushing chain eliminates stretch for consistent timing
• Cam sprockets manufactured from 35,000 PSI tensile strength cast iron for durability
• Crank sprockets machined from billet SAE-1144 steel with induction heat treatment
• Three keyway setting points allow precise timing adjustment for early or late-model applications
• Engineered for reliable operation up to 6500 RPM in street performance applications

Installation Notes:

• Never hammer directly on chain or sprockets—use a protective sleeve or brass drift punch, alternating blows to prevent cocking
• Do not stretch the chain with a screwdriver during installation
• Verify clearance between timing chain and engine block, and between chain and front cover before final assembly
• Ensure cam and crank sprockets are perfectly aligned to prevent premature chain failure

This timing set provides an excellent upgrade from standard timing chains, offering improved accuracy and longevity for engines with stock or mild performance camshafts.
