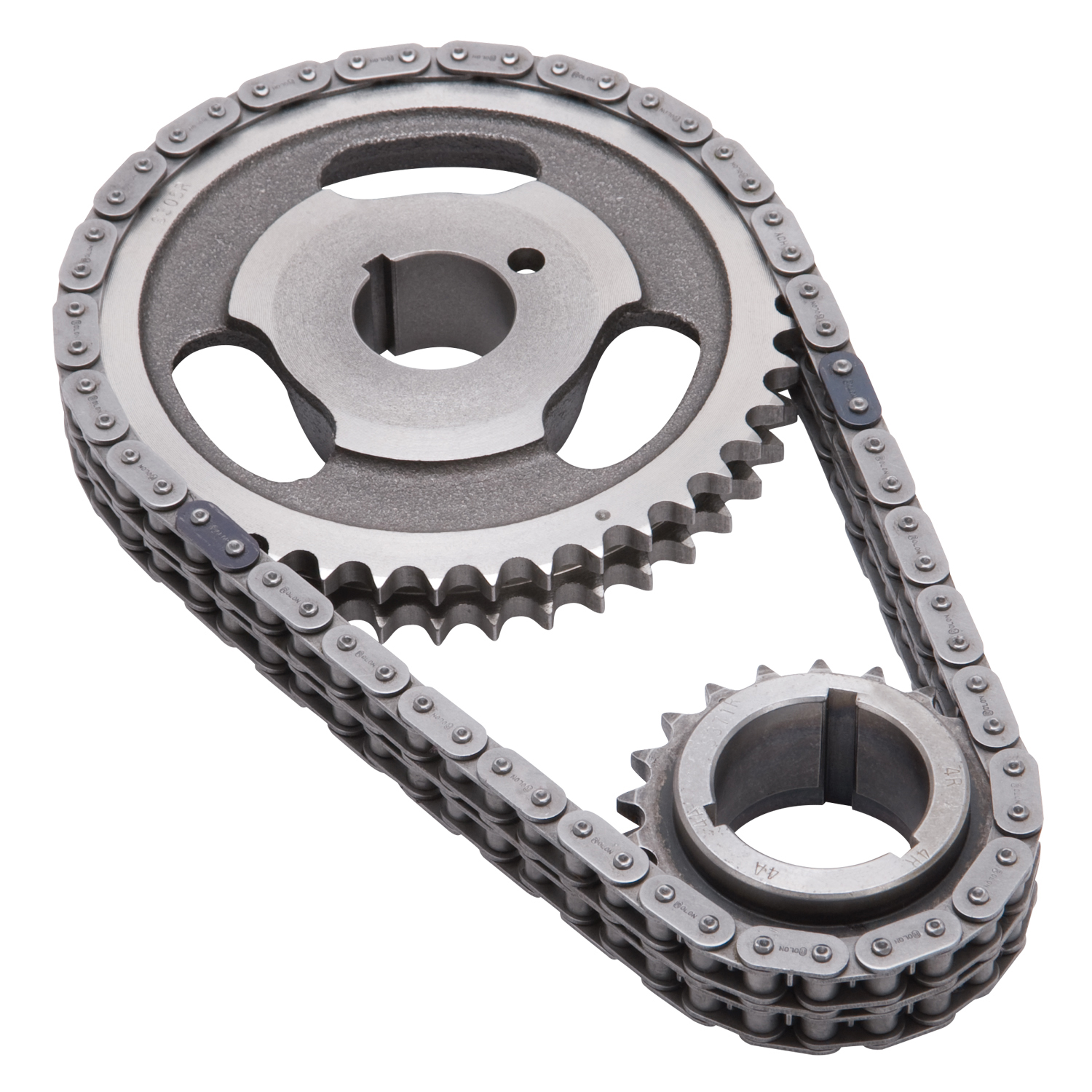

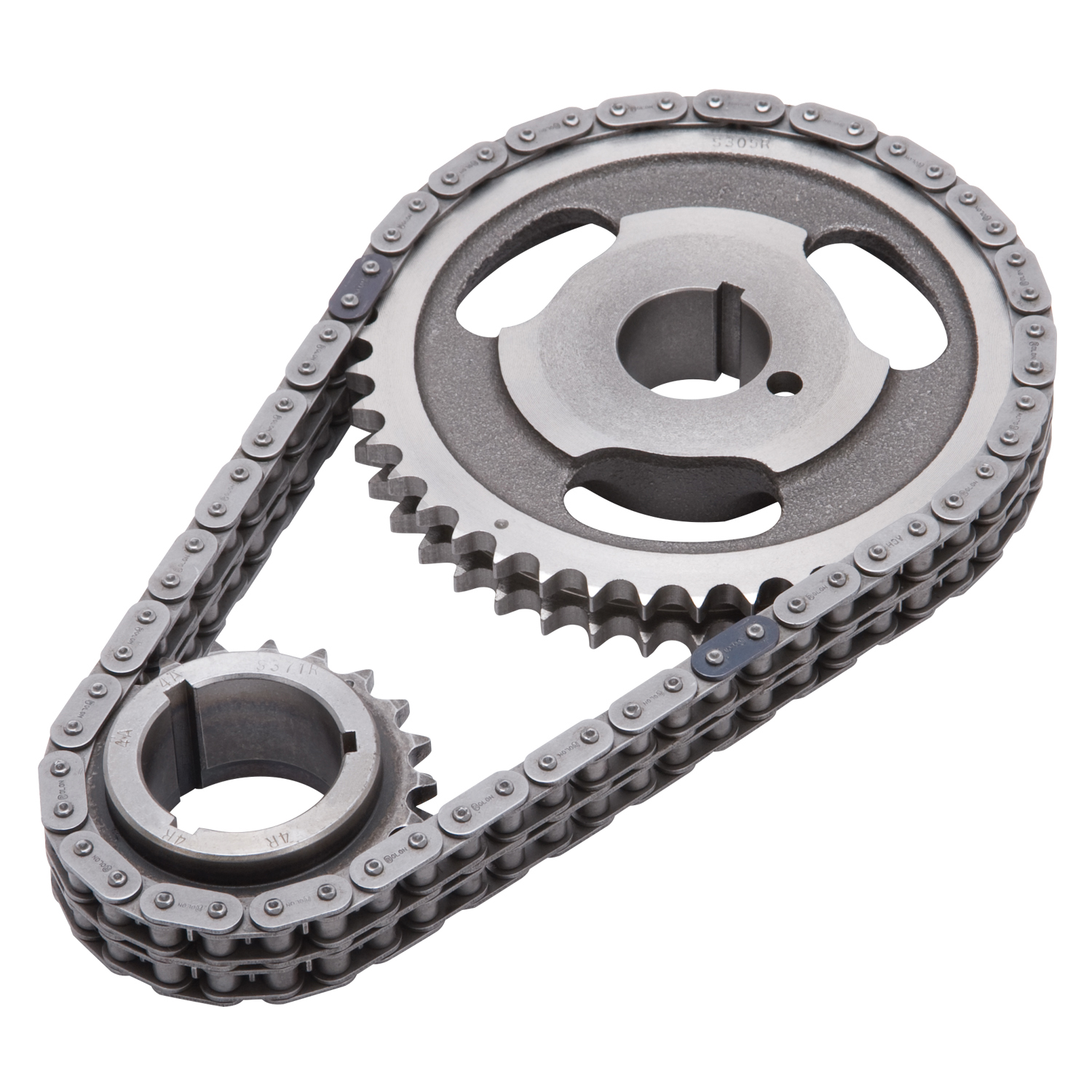

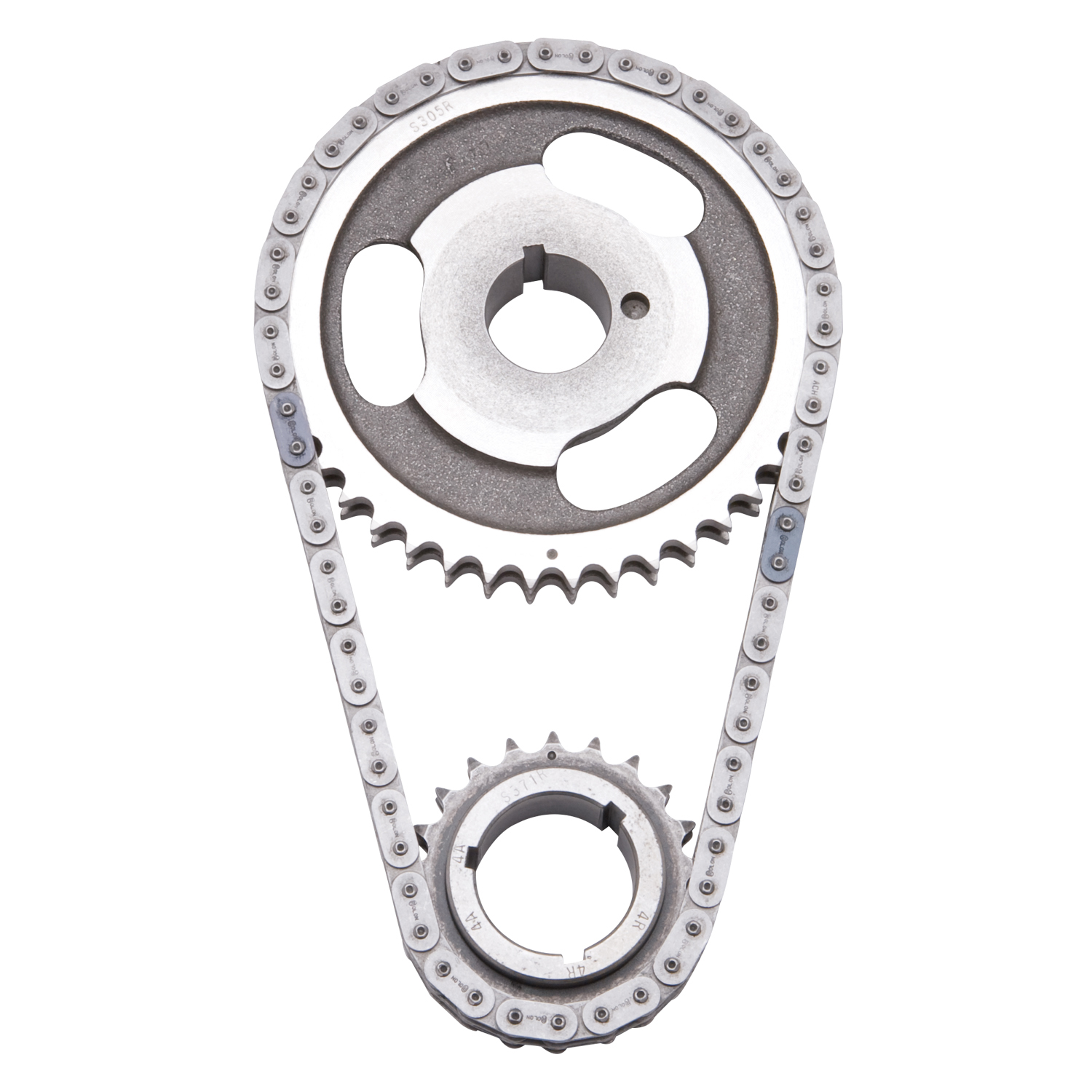

Edelbrock 7812 Performer-Link Adjustable True-Roller Timing Chain Set

The Edelbrock 7812 Performer-Link timing chain set is designed for use with Edelbrock or stock camshafts, providing reliable and accurate timing for your engine. This timing chain set features a solid-bushing chain that creates a true bearing surface, rolling smoothly with the sprockets to eliminate chain stretch and ensure long-lasting performance.

Key Features:

• Solid-bushing true-roller chain design eliminates stretch for consistent timing
• Cam sprockets manufactured from high-strength cast iron (35,000 psi tensile strength)
• Crank sprockets machined from billet SAE-1144 steel with induction heat treatment
• Three keyway setting points allow accurate timing adjustment for early or late-model applications
• Engineered for reliable operation up to 6,500 rpm
• Premium construction ensures precise cam-to-crank alignment

Installation Notes:

• Never hammer directly on chain or sprockets—use a protective sleeve or brass drift punch, alternating blows to prevent cocking
• Do not stretch the chain with a screwdriver during installation
• Verify clearance between timing chain and engine block, and between chain and front cover before final assembly
• Ensure both cam and crank sprockets are precisely aligned to prevent premature chain failure

This timing chain set delivers the quality and precision Edelbrock is known for, making it an excellent choice for performance street engines and stock replacement applications.
