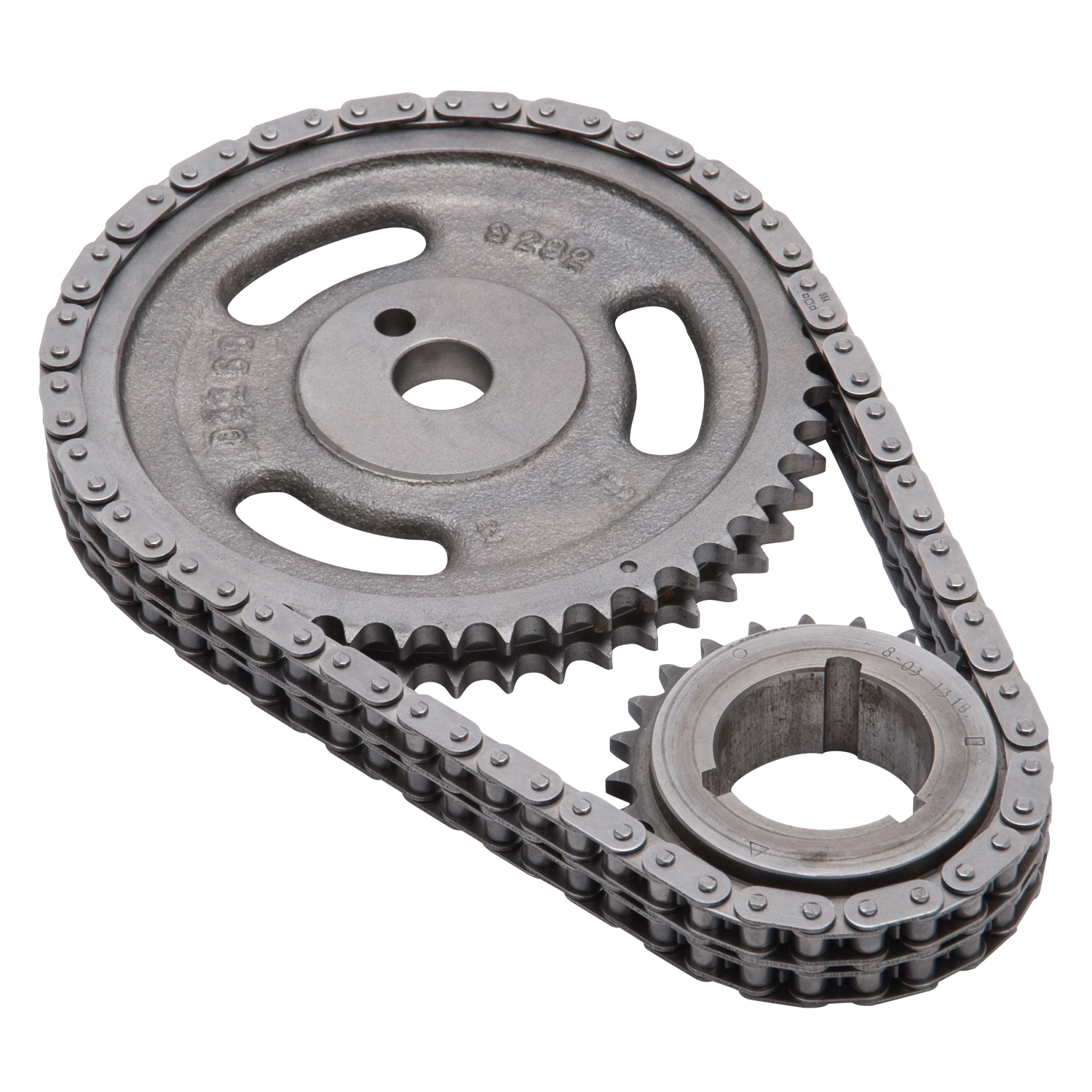

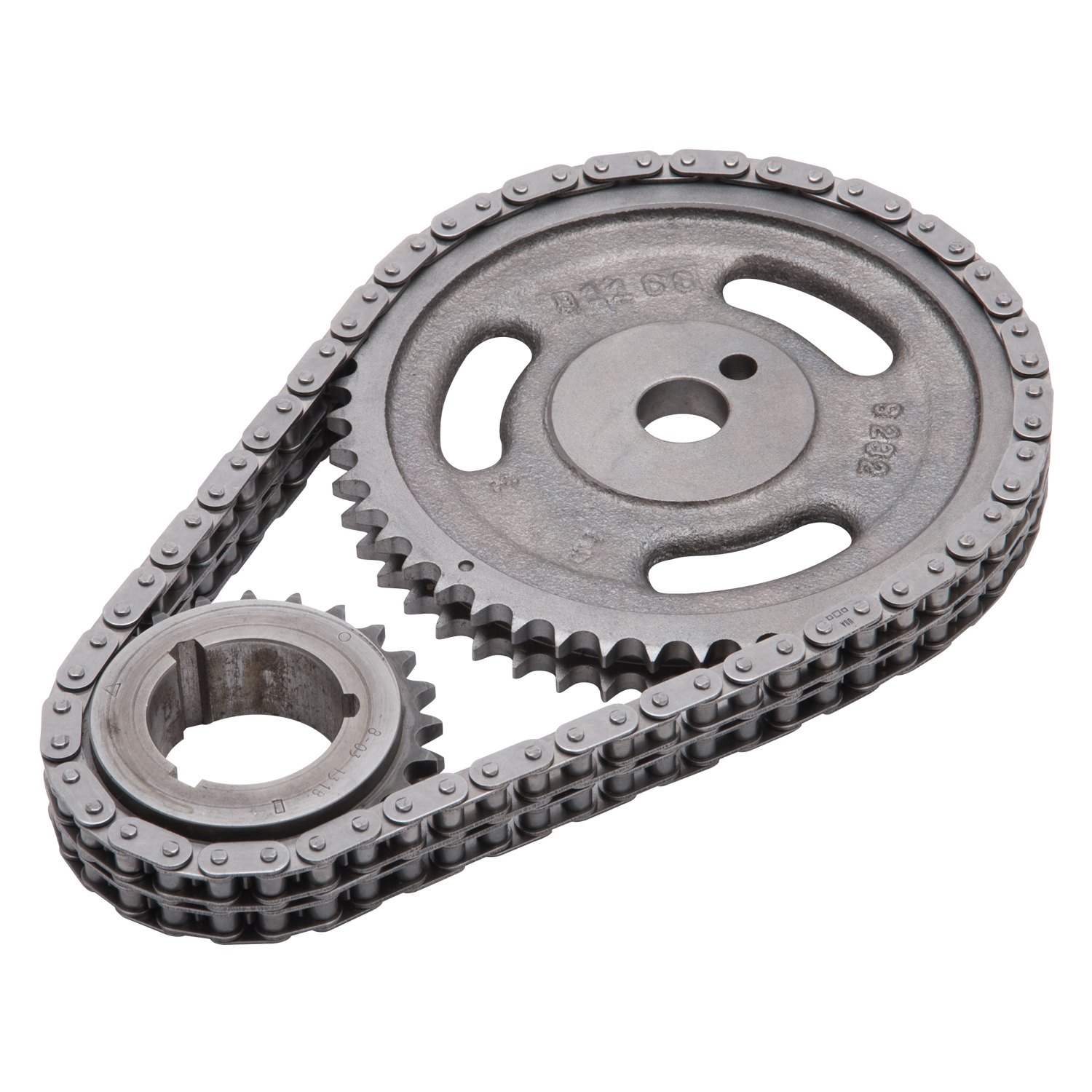

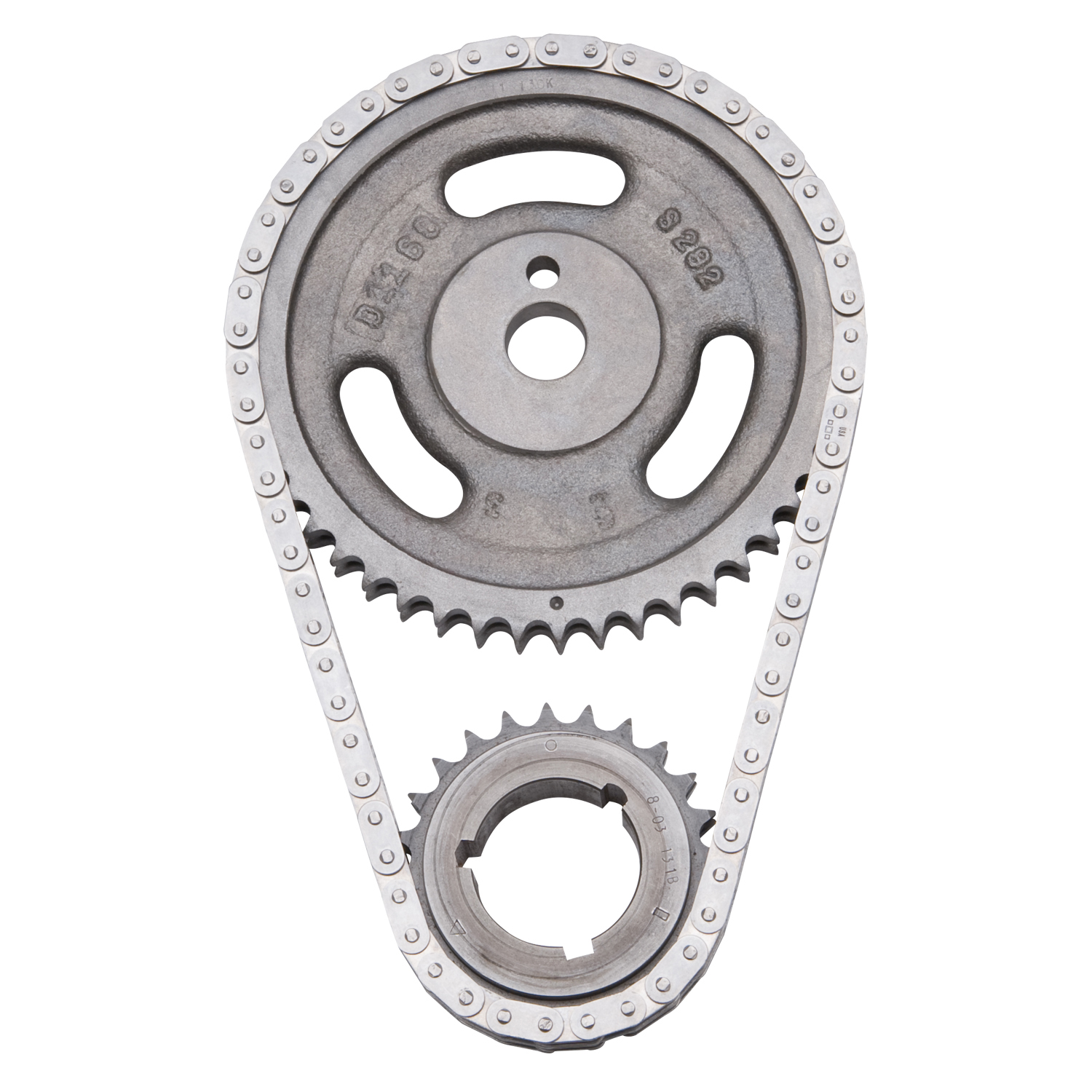

Edelbrock 7813 Performer-Link Adjustable True-Roller Timing Chain Set

The Edelbrock 7813 Performer-Link timing chain set is engineered for use with Edelbrock or stock camshafts in performance and stock engine builds. This true-roller timing chain features a solid-bushing design that creates a genuine bearing surface rolling with the sprockets, effectively eliminating chain stretch and ensuring precise valve timing throughout the engine's service life.

Premium Construction:

• Cam sprockets manufactured from high-strength cast iron with 35,000 psi tensile strength for durability
• Crank sprockets machined from billet SAE-1144 steel and induction heat treated for maximum wear resistance
• Solid-bushing roller chain design provides true bearing surface that rolls with sprockets
• Three keyway setting points allow accurate timing adjustment for early or late-model applications

Performance Specifications:

• Engineered for reliable operation up to 6500 rpm
• Eliminates chain stretch common with standard roller chains
• Adjustable timing positions for optimized engine performance

Installation Guidelines:

• Never hammer directly on chain or sprockets—use a sleeve or brass drift punch, alternating blows to prevent cocking
• Verify clearance between timing chain and engine block, and between chain and front cover before final assembly
• Ensure cam and crank sprockets are perfectly aligned to prevent premature chain failure
• Never stretch the chain with tools during installation

This timing chain set provides a reliable, precision-engineered solution for engines requiring accurate valve timing and long-term durability in street performance and stock replacement applications.
