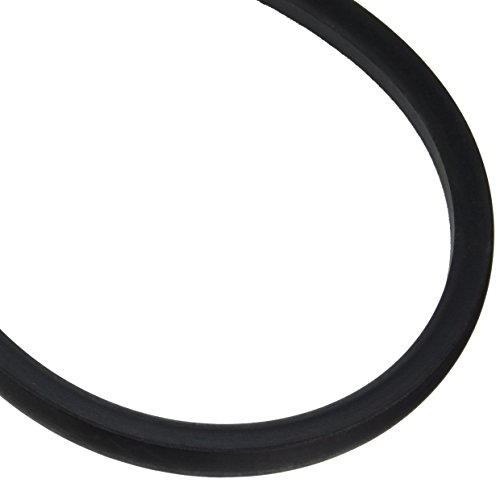

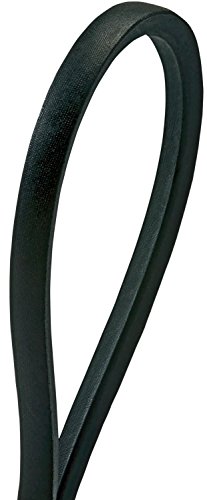

Gates C99 Hi-Power II V-Belt C Section 7/8" Width 103" Outside Circumference

The Gates C99 Hi-Power II V-Belt is a premium single V-belt designed for industrial and agricultural power transmission applications. This C-section belt features a 103-inch outside circumference, 7/8-inch top width, and 17/32-inch thickness, making it suitable for a wide range of heavy-duty applications including HVAC systems, conveyor drives, centrifugal pumps, air compressors, and agricultural equipment.

Advanced Construction Features:

• Flex-Weave Cover: Patented single-layer fabric construction provides extended cover life and protects the belt core from oil, dirt, and heat
• Flex-Bonded Cords: Polyester cords are strongly bonded to the belt body for equal load distribution and absorption of bending stress without cord deterioration
• Gates Curves: Optimized cross-section provides proper cord support and full contact with the sheave groove for uniform loading, uniform wear, and increased belt life
• EPDM Construction: Composite, multi-purpose construction resists oil, heat, ozone, sunlight, weather, and aging

V80 Matching System: Every C99 belt meets Gates V80 matching tolerances, ensuring belts can be used in matched sets regardless of batch or lot. This allows the belt to be used individually or in multiple-belt drives for higher horsepower applications.

Performance Specifications:

• Temperature range: -30°C to +60°C (-22°F to +140°F)
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements
• Engineered EPDM material combats self-igniting, preventing fire from heat buildup even with severe slippage
• REACH and RoHS 2 compliant

The Gates C99 Hi-Power II belt delivers exceptional reliability, durability, and performance for demanding industrial and agricultural power transmission needs.
