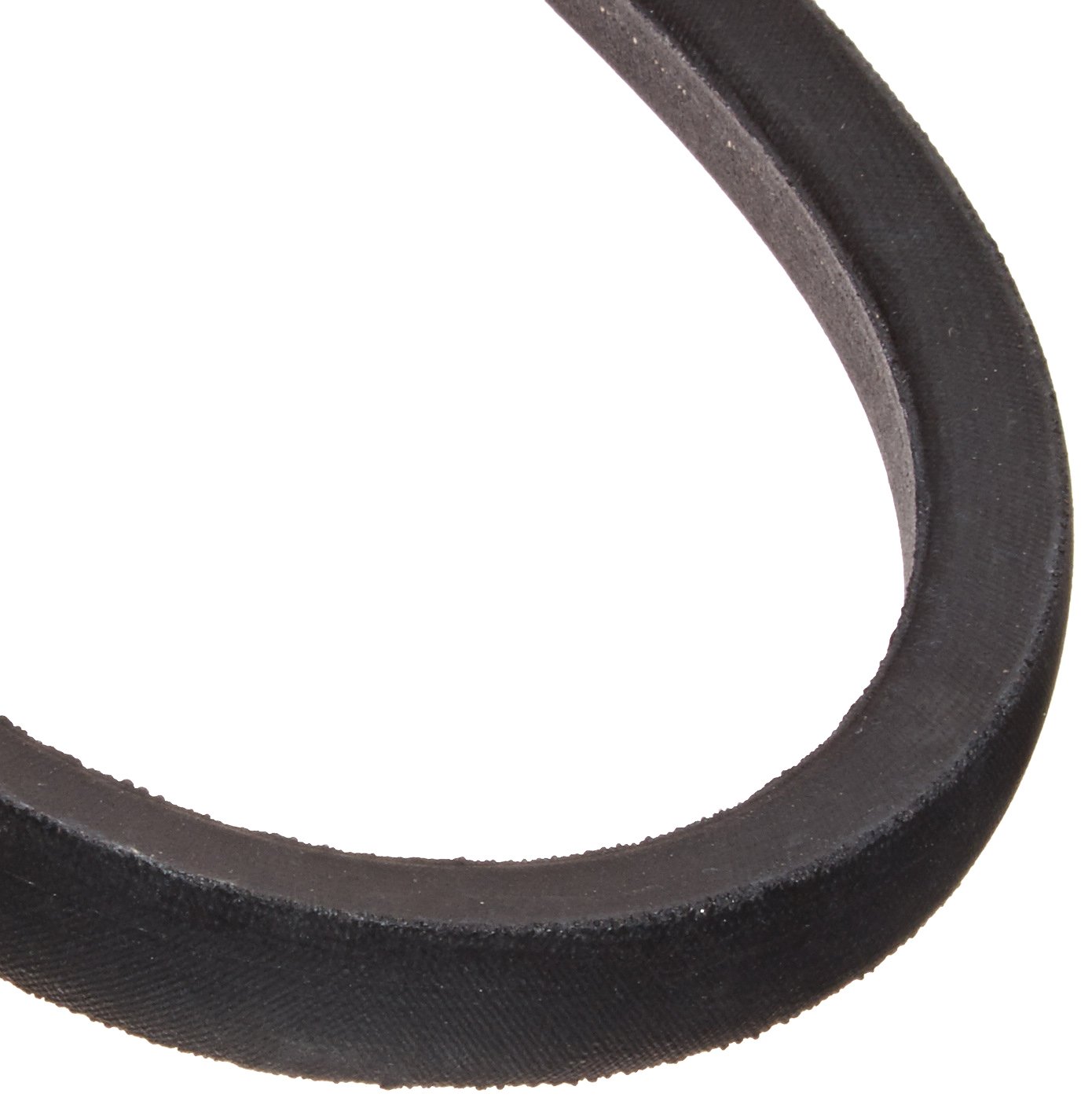

Gates B67 Hi-Power II V-Belt 70 Inch B Section Industrial Power Transmission Belt

The Gates B67 Hi-Power II V-Belt is a heavy-duty industrial power transmission belt designed for reliable performance in agricultural and industrial applications. This B-section classical V-belt features a 70-inch outside circumference and is engineered with advanced materials to resist oil, heat, ozone, sunlight, weather, and aging.

Key Features:

• EPDM rubber construction with self-ignition resistance prevents belt fires even during severe slippage
• Flex-Bonded polyester cords strongly bonded to belt body for equal load distribution and superior resistance to flexing forces and shock loads
• Flex-Weave oil and heat resistant cover protects the belt core while providing static conductivity
• Arched top design prevents dishing and distortion of tensile section for longer service life
• Concave sidewalls and rounded corners provide uniform tensile loading and full pulley contact
• Meets Gates V80 matching system tolerances for use in matched belt sets
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements

Specifications:

• Section: B (Classical)
• Outside Length: 70 inches
• Top Width: 21/32 inch (0.66 inch)
• Height: 13/32 inch (0.41 inch)
• Temperature Range: -22°F to +140°F (-30°C to +60°C)
• Material: EPDM with polyester cords
• Gates Product Number: 9003-2067

This belt is suitable for all industrial applications including v-flat drives and is recommended for use with Multi-Duty sheaves. REACH and RoHS 2 compliant. Not for use on aircraft propeller or motor drive systems.
