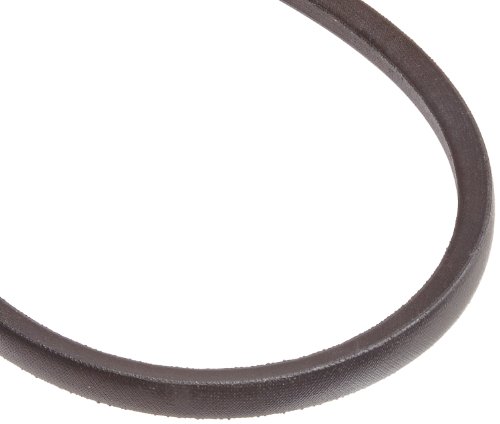

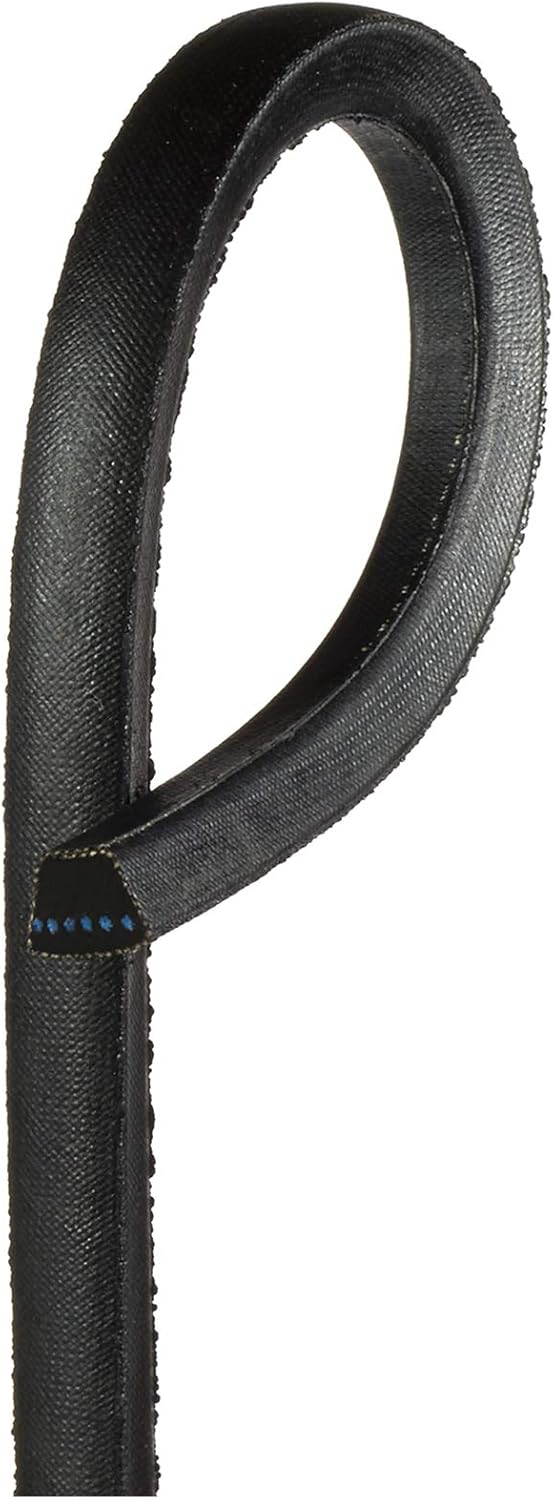

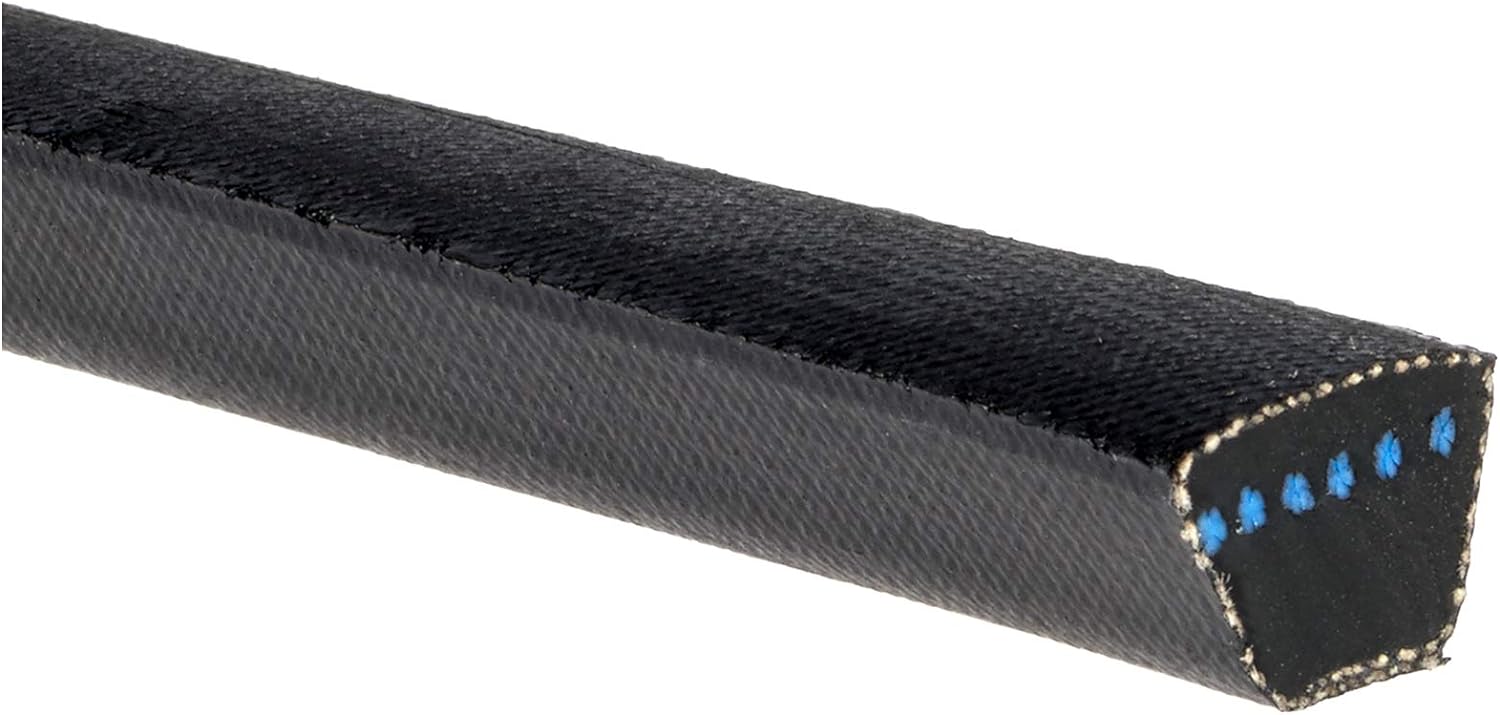

Gates A92 Hi-Power II V-Belt A-Section 1/2" x 94"

The Gates A92 Hi-Power II V-Belt is a heavy-duty, wrapped classical power transmission belt designed for reliable performance in demanding industrial and agricultural applications. This A-section belt features a 1/2-inch top width and 94-inch outside length, making it suitable for a wide range of drive systems including HVAC equipment, conveyor systems, air compressors, centrifugal pumps, and agricultural machinery.

Advanced Construction Features:

• Flex-Weave Cover: Patented single-layer fabric construction provides superior protection against oil, dirt, and heat while enabling use in clutching applications
• Flex-Bonded Polyester Cords: Proprietary core material blend ensures strong cord-to-body bonding for uniform load distribution and excellent resistance to bending stress without cord deterioration

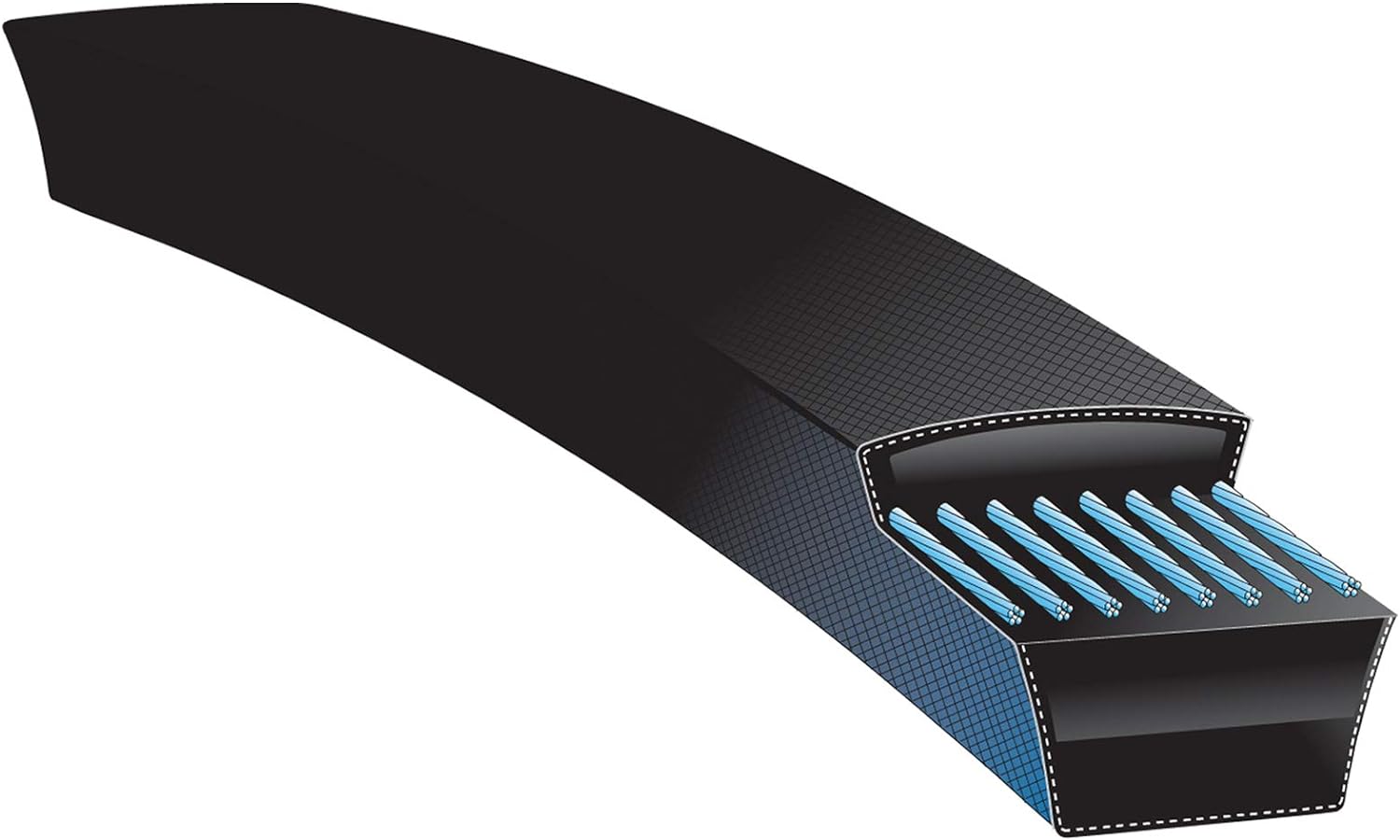

• Gates Curves Design: Optimized belt cross-section with arched top, concave sidewalls, and rounded corners delivers proper cord support, full sheave contact, uniform loading, and extended service life
• EPDM Rubber Compound: Advanced material resists oil, heat, ozone, sunlight, weathering, and aging while preventing self-ignition even under severe slippage conditions

V80 Matching System: This belt is part of Gates' precision V80 matching system, which guarantees tighter length tolerances than RMA and ISO standards require. This allows the A92 to be used individually or in matched sets of multiple belts for higher horsepower applications without requiring special batch matching.

Performance Specifications: Meets ARPM/RMA IP-3-2 oil and heat resistance standards and IP-3-3 static conductivity requirements. Operating temperature range: -30°C to +60°C (-22°F to +140°F). REACH and RoHS 2 compliant. Minimum pulley diameter: 4.138 inches.
