Product Details

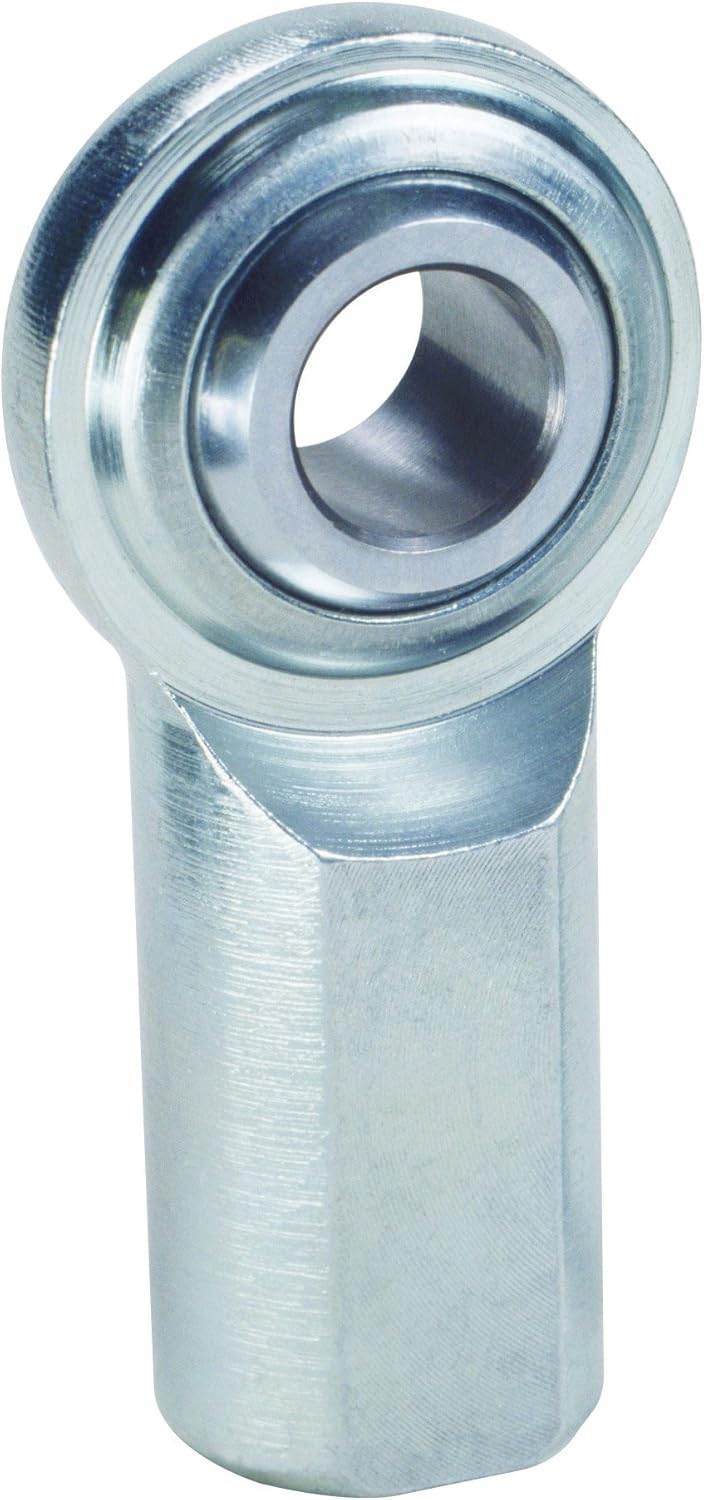

The QA1 CFL6 is a 2-piece carbon steel female rod end designed for light-duty applications requiring reliable linkage connections. This economical rod end features a classic "mohawk" design with just two components: a precision ball and swaged body that creates a secure, functional joint.

Ball Specifications:

  • 52100 bearing steel construction for durability
  • Heat treated for enhanced strength
  • Hard chrome plated finish
  • Precision ground for smooth articulation

Body Construction:

  • Carbon steel body
  • Protective coating for corrosion resistance
  • Female thread configuration
  • Metal-to-metal bearing surface

Design Features:

  • 2-piece swaged construction for economical performance
  • Available with left or right-hand threads
  • Optional grease fittings and stud configurations available (contact manufacturer for sizes 2 and 3)
  • Suitable for suspension linkages, throttle connections, and general light-duty mechanical linkages

The CF Series represents QA1's traditional carbon steel rod end line, offering dependable performance for automotive, racing, and industrial applications where cost-effective linkage solutions are needed. The protective coating helps resist corrosion in demanding environments.

Note: Load ratings apply to rod ends without grease fittings. Contact QA1 for specifications on grease-fitted configurations.

Products specifications

A (+/-0.015)

1.625

Approx Bearing Weight

0.13

B (+0.0025/-0.0005)

0.375

Ball Dia Ref

0.719

C (+0.062/-0.031)

0.812

D Ref

1

E (+/-0.010)

0.687

F (+/-0.010)

0.562

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

22

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.500 in.

Rod End Centerline Length

1.625 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.375 in.

Rod End Head Diameter

1.000 in.

Rod End Head Width

0.500 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

22 degrees

Rod End Static Load Capacity

6,323 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

3/8-24 LH in.

Thread Length

0.812 in.

Thread Type

Left Hand

Thread UNF-2B

3/8 -24

UTL Radical Static

6323

W (+/-0.005)

0.5
