Product Details

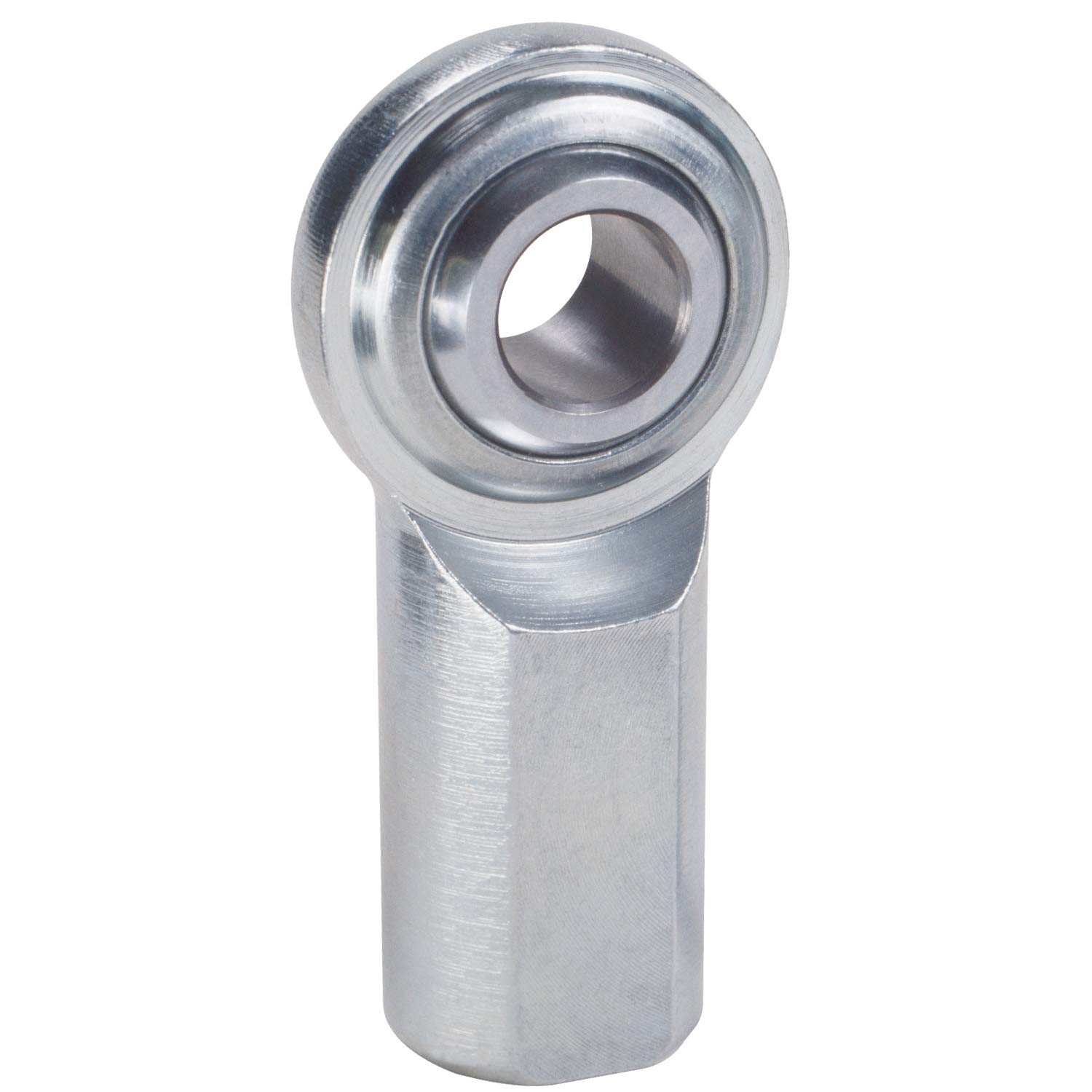

The QA1 CFR3-4 is a two-piece carbon steel female rod end from QA1's CF Series, designed for light-duty suspension and linkage applications. This economical rod end features a traditional mohawk design with just two components: a precision-ground ball and a swaged body that locks around the ball to provide reliable articulation while maintaining a compact, cost-effective package.

Ball Specifications:

  • 52100 bearing steel construction
  • Heat treated for durability
  • Hard chrome plated finish
  • Precision ground for smooth operation

Body Specifications:

  • Carbon steel construction
  • Protective coating for corrosion resistance
  • Female threaded design with 3/16-1/4 thread sizing
  • Metal-to-metal bearing surface

This rod end is available in both left and right-hand thread configurations. The CF Series provides an economical solution for applications requiring basic articulation without the need for self-lubrication. Note that grease fittings are not available for this size, and load ratings apply to the standard configuration only.

Products specifications

A (+/-0.015)

1.312

Approx Bearing Weight

0.05

B (+0.0025/-0.0005)

0.19

Ball Dia Ref

0.437

C (+0.062/-0.031)

0.687

D Ref

0.75

E (+/-0.010)

0.469

F (+/-0.010)

0.375

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

20

Notes

Only rod end ball is heat treated.

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.312 in.

Rod End Centerline Length

1.312 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.190 in.

Rod End Head Diameter

0.750 in.

Rod End Head Width

0.312 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

20 degrees

Rod End Static Load Capacity

4,197 lbs.

Rod End Static Load Capacity (lbs)

4,197 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

1/4-28 RH in.

Thread Length

0.687 in.

Thread Type

Right Hand

Thread UNF-2B

1/4 -28

UTL Radical Static

4197

W (+/-0.005)

0.312

Title

QA1 Suspension Rod End Bearing CFR3-4
