Product Details

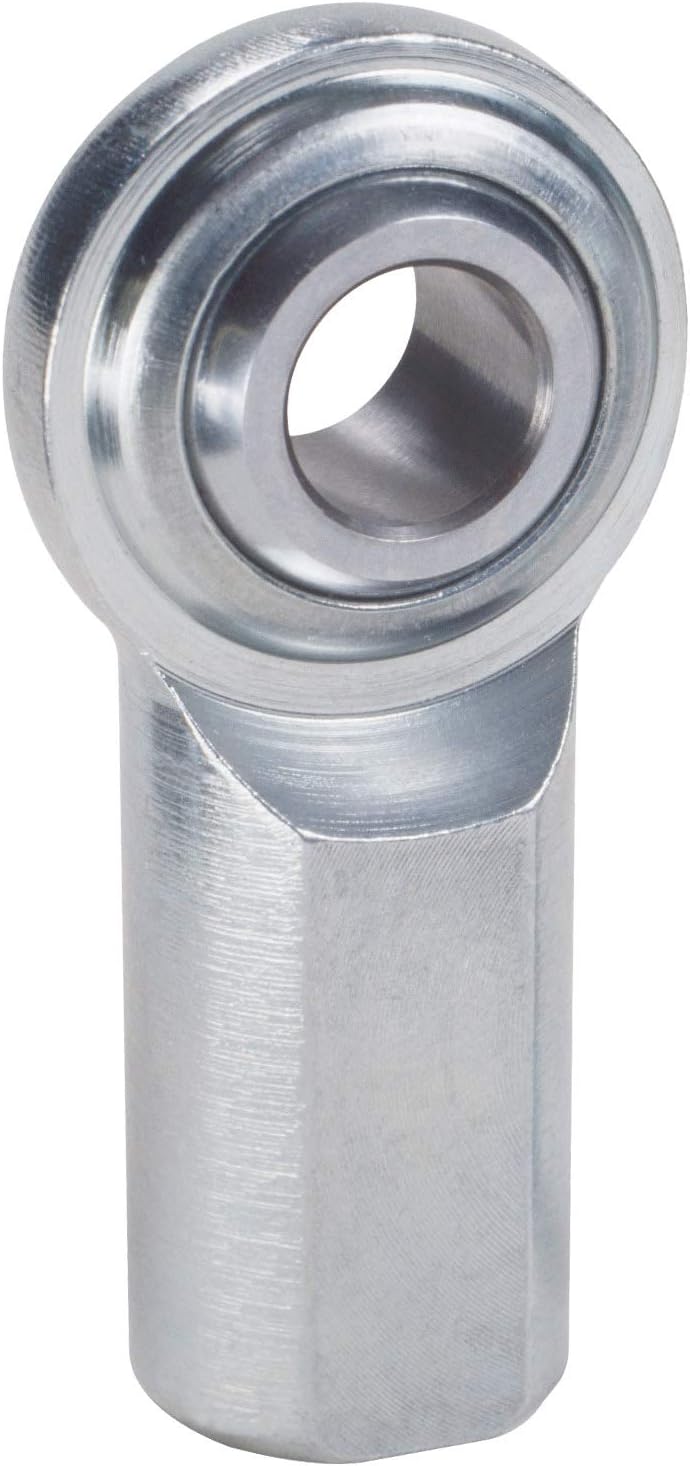

The QA1 CFR5S is a high-quality C Series 2-piece rod end designed for steering, suspension linkage, and general-purpose applications in automotive, motorsport, and racing vehicles. This economical yet durable rod end features a female thread configuration with right-hand threading, making it ideal for tie rod assemblies, control arms, and custom suspension builds.

Key Features:

  • 5/16 inch bore diameter (0.3125 inches) for precise fit
  • 5/16-24 right-hand female threads for easy installation
  • 52100 bearing steel ball - heat treated, precision ground, and hard chrome plated for durability
  • Carbon steel housing with protective coating for corrosion resistance
  • 22-degree maximum angular misalignment for suspension articulation
  • Two-piece construction for reliable performance
  • Follows SAE Specification J1120 construction standards
  • 0.875 inch outside diameter with 0.437 inch width

QA1 C Series rod ends deliver the precision tolerances, strength, and reliability demanded by racing professionals and enthusiasts alike. The hard chrome plated spherical ball ensures smooth operation and extended service life, while the protective coated housing resists rust and corrosion in harsh environments. Sold individually.

Products specifications

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Notes

Features 5/16-24 RH in. male threaded stud built into the rod end head.

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.437 in.

Rod End Centerline Length

1.375 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.313 in.

Rod End Head Diameter

0.875 in.

Rod End Head Width

0.437 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

22 degrees

Rod End Static Load Capacity

5,110 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

5/16-24 RH in.

Size

5/16-5/16

Thread Length

0.687 in.

Thread Type

Right Hand
