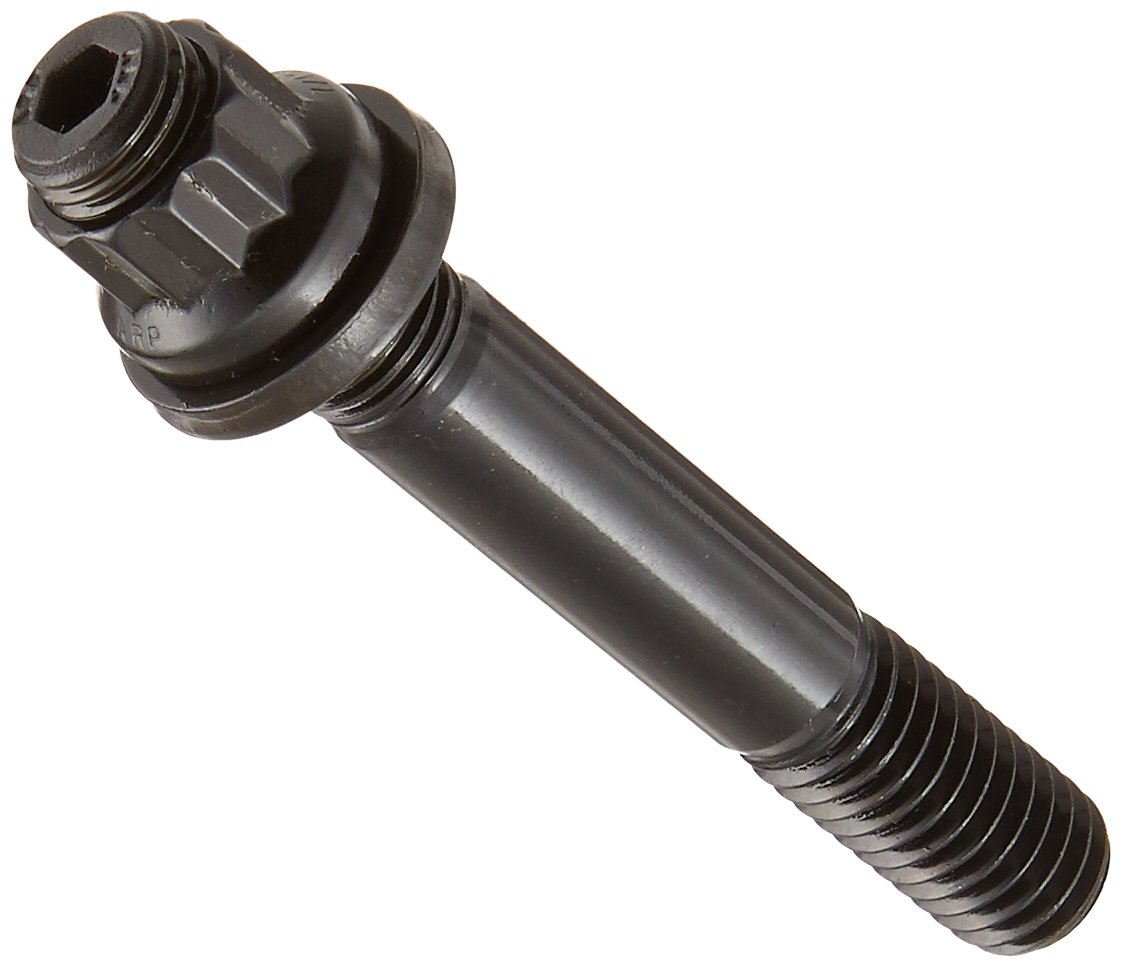

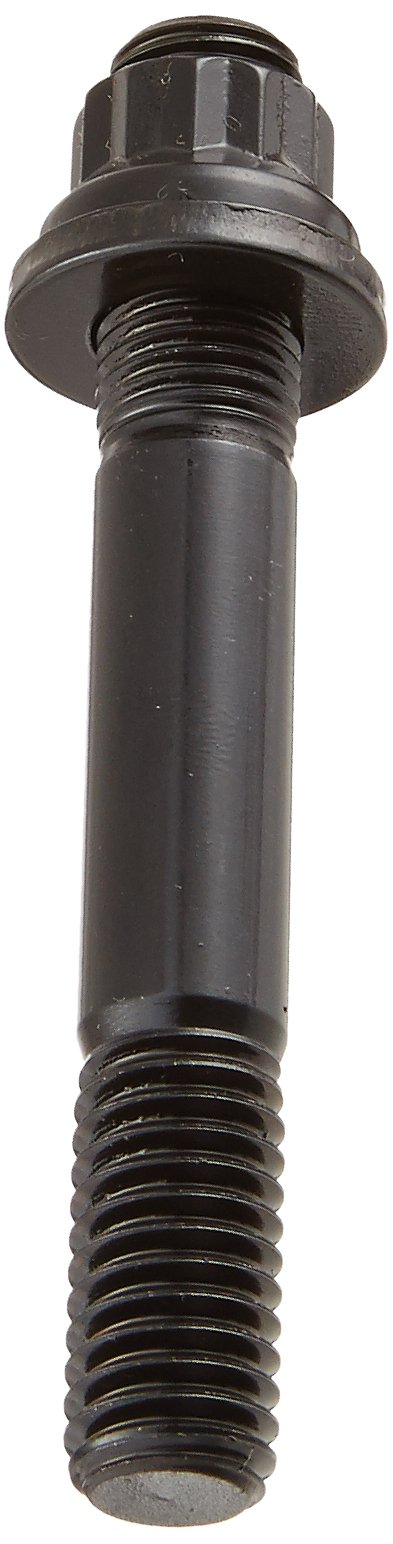

ARP 154-4201 High Performance Cylinder Head Stud Kit Chrome Moly - 8740

The ARP 154-4201 cylinder head stud kit is engineered for high-performance and competition engines, delivering superior clamping force and reliability. Manufactured from premium 8740 chrome moly steel, these studs are heat-treated to 200,000 psi using a precise vertical rack process that ensures complete and uniform heat penetration throughout each fastener.

Key Features:

• Premium 8740 chrome moly alloy rated at 200,000 psi tensile strength
• 12-point head design for precise torque application
• Centerless ground after heat-treat for exceptional straightness and concentricity
• Thread rolled after heat-treat for 10x better fatigue strength
• Specially undercut short studs equalize stretch for consistent clamping force
• Includes hardened parallel-ground washers for even load distribution
• Wide area flanged head allows retorquing without valve train removal

Why Studs Over Bolts:

Head studs provide more accurate and consistent torque loading compared to bolts. When torquing a bolt, the fastener twists under two simultaneous forces, creating inconsistent clamping. Studs install finger-tight in a relaxed state, then stretch only on the vertical axis when the nut is torqued, resulting in superior clamping accuracy and head gasket sealing. The undercut design on shorter studs compensates for head gasket compression, helping prevent blown gaskets in high-performance applications.

Installation Note: Studs should be installed finger-tight without jamming. Always re-torque fasteners after initial engine break-in to compensate for head gasket compression.

Trusted by professional engine builders across all forms of motorsports, ARP fasteners are manufactured to exacting tolerances that allow cylinder heads and gaskets to align perfectly during assembly. Each stud is stamped with the ARP logo as assurance of quality and adherence to their zero-defect, zero-failure standard.
