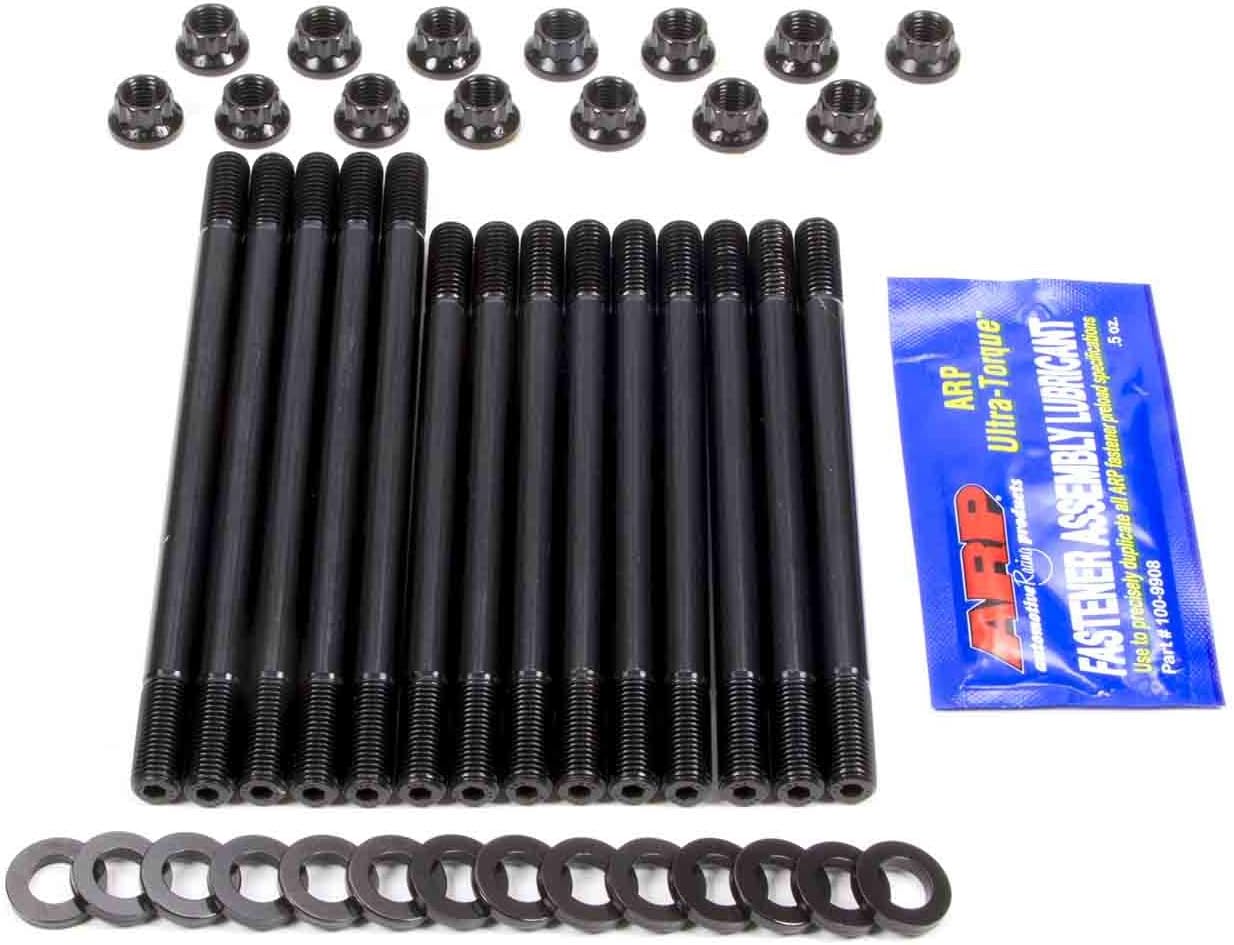

ARP 202-4206 High Performance Cylinder Head Stud Kit Chrome Moly - 8740 12-Point

(1981-1984 Nissan Maxima; 1979-1983 Nissan 280ZX; 1970-1973 Nissan 240Z; 1975-1978 Nissan 280Z; 1974-1975 Nissan 260Z; 1977-1981 Nissan 810)

Part of: ARP High Performance Cylinder Head Stud Kit Chrome Moly

Other options in this family: ARP 234-4316 ARP 235-4713 ARP 245-4306 ARP 208-4306 ARP 204-4203

Manufacturer

Picture for manufacturer ARP

Part Number

202-4206
16 reviews
Sale Price

$183.12

In Stock (6)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ARP 202-4206 High Performance Cylinder Head Stud Kit is a chrome moly head stud kit made from 8740 alloy steel with a 12-point nut style. It is designed for engine builders who want accurate, consistent clamping force and easier cylinder head and gasket alignment during assembly.

Key Features:

  • 8740 chrome moly steel: premium alloy, heat-treated with each stud racked vertically for complete heat penetration.
  • Centerless ground: after heat treatment, each stud is centerless ground for a very straight, concentric part, so gaskets and cylinder heads settle into position and stay aligned.
  • Thread rolled after heat treatment: ARP states this gives substantially better fatigue strength than studs threaded before heat treatment.
  • 12-point head design: a reduced wrenching profile that, per ARP, helps eliminate the need for valve train removal when retorquing the cylinder heads.
  • Hardened, parallel-ground washers: supplied with High Performance Series kits for even load distribution and accurate torque readings.
  • Specially undercut shorter studs: on engines where ARP offers them, undercutting evens out the stretch between short and long studs for more consistent clamping force and to compensate for head gasket compression.
  • ARP stamped: look for the ARP marking on each stud.

Studs vs. Bolts: For most applications, ARP recommends studs. They make assembly easier, keep the head and gasket properly aligned, and provide more accurate, consistent torque loading because the stud stretches only along its vertical axis while the nut is tightened. Install studs finger tight rather than cranking them in with a jammed nut. Because the head gasket compresses on initial torquing, re-torque after the engine has been run.

Products specifications

Fits

1981-1984 Nissan Maxima; 1979-1983 Nissan 280ZX; 1970-1973 Nissan 240Z; 1975-1978 Nissan 280Z; 1974-1975 Nissan 260Z; 1977-1981 Nissan 810

Cut to Fit

No

Fastener Finish

Black oxide

Fastener Material

8740 chromemoly

Fastener Style

Stud

Head Style

12-point

Quantity

Sold as a kit.

Washers Included

Yes
