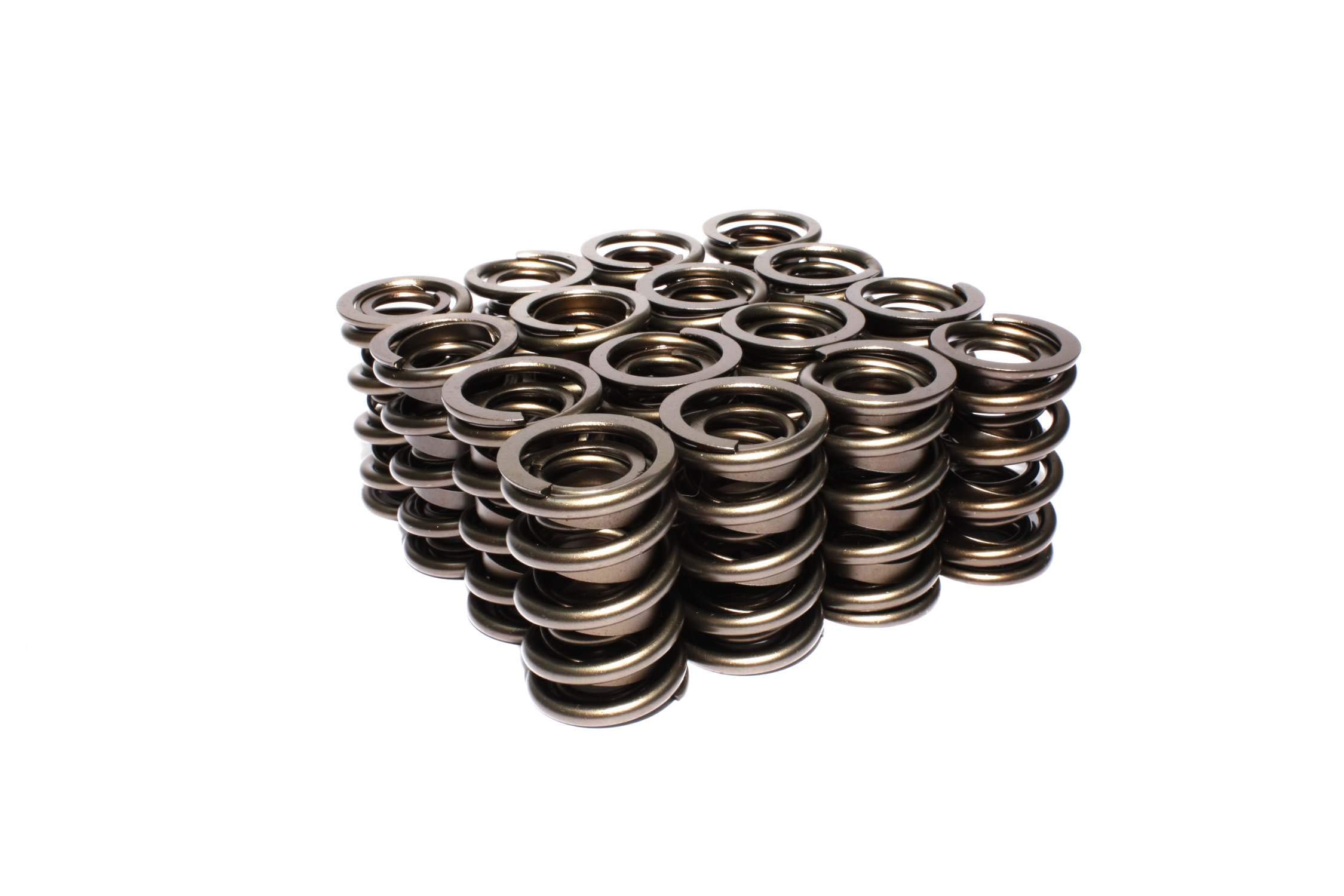

COMP Cams 953-1 Dual Valve Spring with Damper

(Ford F-150 1977-96, Mustang 1969-73, 1995, F-250 1977-96, Bronco 1978-96, Thunderbird 1977-79, F-350 1977-96, Galaxie 500 1969-74 + 238 more models)

Manufacturer

Part Number

953-1
Black Friday Price

$17.95

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 953-1 is a high-performance dual valve spring assembly designed for demanding performance and racing applications. This precision-engineered valve spring is manufactured from Super Clean wire and subjected to extensive quality control testing to ensure superior strength, durability, and valve train stability.

Key Features:

  • Dual spring design with integrated damper for enhanced valve control
  • Outer spring O.D.: 1.550 inches
  • Outer spring I.D.: 1.137 inches
  • Inner spring I.D.: 0.737 inches
  • Spring rate: 473 lbs/inch
  • Installed height: 1.900 inches
  • Seat pressure: 148 lbs @ 1.900 inches
  • Open pressure: 456 lbs @ 1.250 inches
  • Coil bind height: 1.085 inches
  • Maximum valve lift: 0.755 inches

The dual spring configuration provides exceptional strength and stability needed to handle aggressive camshaft profiles and high-RPM engine operation. The integrated damper helps eliminate valve spring surge and harmonic vibrations that can occur at extreme engine speeds. Ideal for performance street engines, circle track racing, drag racing, and other high-performance applications where reliable valve control is critical.

Note: Sold individually. Retainers, locks, and valve stem seals are not included and must be purchased separately. Compatible with COMP Cams 10-degree retainers designed for 1.500-1.550 inch valve springs.

Products specifications

Fits

Ford F-150 1977-96, Mustang 1969-73, 1995, F-250 1977-96, Bronco 1978-96, Thunderbird 1977-79, F-350 1977-96, Galaxie 500 1969-74, F-100 1977-79, Fairlane 1969-70, Ranchero 1969-79, Torino 1969-76, Falcon 1969-70 + 233 more models

Number of Springs

2

Inner Spring Inside Diameter

0.737

Coil Bind Height

1.085

Outer Spring Inside Diameter

1.137

Outer Spring Outside Diameter

1.55

Seat Height

1.9

Seat Pressure

148

Compatible Spring Cup (O.D. Locator)

4700-1

Spring Rate

473

Compatible Shims

4757

Compatible .570" Guide Diameter Spring Seat

4772-1

Compatible .630" Guide Diameter Spring Seat

4780-1

Compatible Retainer

741-1

Damper

Yes

AMAZON ASIN

B00062YHC4

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

Title

Engine Valve Spring
