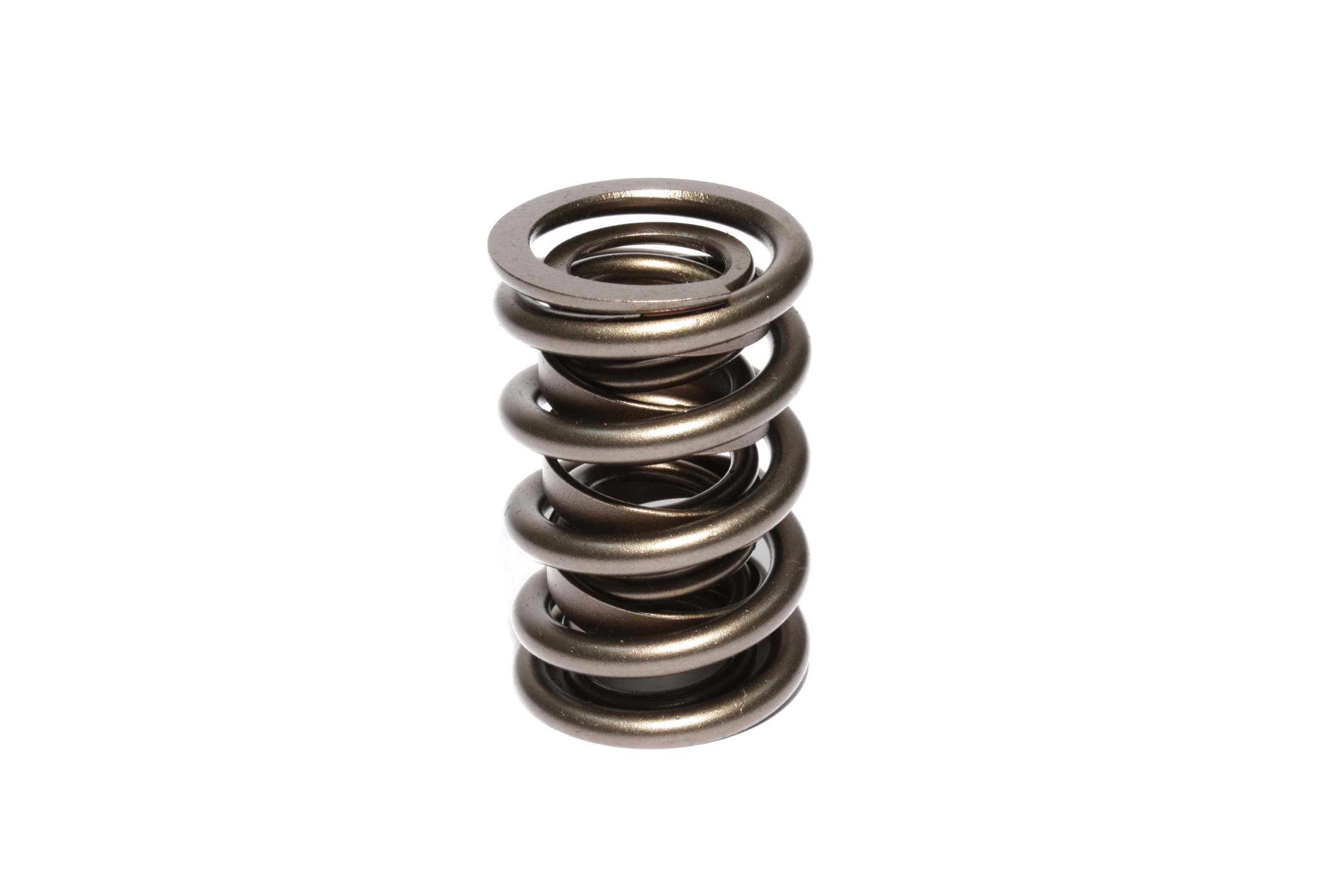

COMP Cams 939-1 Dual Valve Spring with Damper

(Ford F-150 1975-95, Mustang 1967-73, 1995, F-250 1975-95, Bronco 1978-95, Thunderbird 1963-68, 1972, 1977-79, F-350 1975-95 + 65 more models)

Manufacturer

Part Number

939-1
Black Friday Price

$13.95

$17.07 Save 18%

1 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 939-1 is a high-performance dual valve spring with integrated damper designed for street/strip applications requiring enhanced valve train control. Manufactured from super clean chrome silicon wire and subjected to rigorous quality control testing, this spring assembly delivers superior strength, durability, and valve train stability under demanding conditions.

Key Specifications:

  • Dual spring design with damper for reduced harmonics
  • Outer spring O.D.: 1.539 inches
  • Outer spring I.D.: 1.125 inches
  • Inner spring I.D.: 0.697 inches
  • Installed height: 1.950 inches
  • Seat pressure: 138 lbs. at 1.950 inches
  • Open pressure: 419 lbs. at 1.350 inches
  • Spring rate: 469 lbs./in.

The dual spring configuration provides increased load capacity compared to single springs, making it ideal for performance camshafts with higher lift profiles. The integrated damper helps control valve float and spring surge, ensuring reliable operation at elevated RPM. Sold individually to allow custom valve train assembly for your specific application.

Products specifications

Fits

Ford F-150 1975-95, Mustang 1967-73, 1995, F-250 1975-95, Bronco 1978-95, Thunderbird 1963-68, 1972, 1977-79, F-350 1975-95, Galaxie 500 1963-74, F-100 1975-79, 1981, F-250 Pickup 1965-95, Fairlane 1964-70, Ranchero 1967-79 + 60 more models

Coated

No

Coil Bind Height (in)

1.225 in.

Damper Spring Included

Yes

Inside Diameter of Inner Spring (in)

0.697 in.

Inside Diameter of Outer Spring (in)

1.125 in.

Number of Springs Per Valve

Dual

Outside Diameter of Outer Spring (in)

1.539 in.

Quantity

Sold individually.

Spring Rate (lbs/in)

469 lbs./in.

Valve Spring Style

Standard

Title

939-1 Valve Spring, for 936-975

Spring Type

Double

Camshaft Type

Hydraulic

Coil Bind Height (in.)

1.225

Inside Diameter (in.)

0.697

Installed Height (in.)

1.9

Installed Pressure (lbs.)

161

Open Height (in.)

1.35

Open Pressure (lbs.)

418

Spring Rate (lbs./in.)

468

Damper

Yes

Compatible .570" Guide Diameter Spring Seat

4771-1

Coil Bind Height

1.225

Seat Pressure

138

Outer Spring Inside Diameter

1.125

Compatible Shims

4757

C.A.R.B. Exempt for California Certified Vehicles Manufactured B

Yes, but must meet tailpipe emission standards for year of vehicle.

Spring Rate

469

AMAZON ASIN

B00062YH74

Compatible Retainer

740-1

Seat Height

1.95

Inner Spring Inside Diameter

0.697

Compatible Spring Cup (O.D. Locator)

4700-1

Outer Spring Outside Diameter

1.539

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Be

Yes, but must meet tailpipe emission standards for year of vehicle.

Compatible .630" Guide Diameter Spring Seat

4783-1

Number of Springs

2
