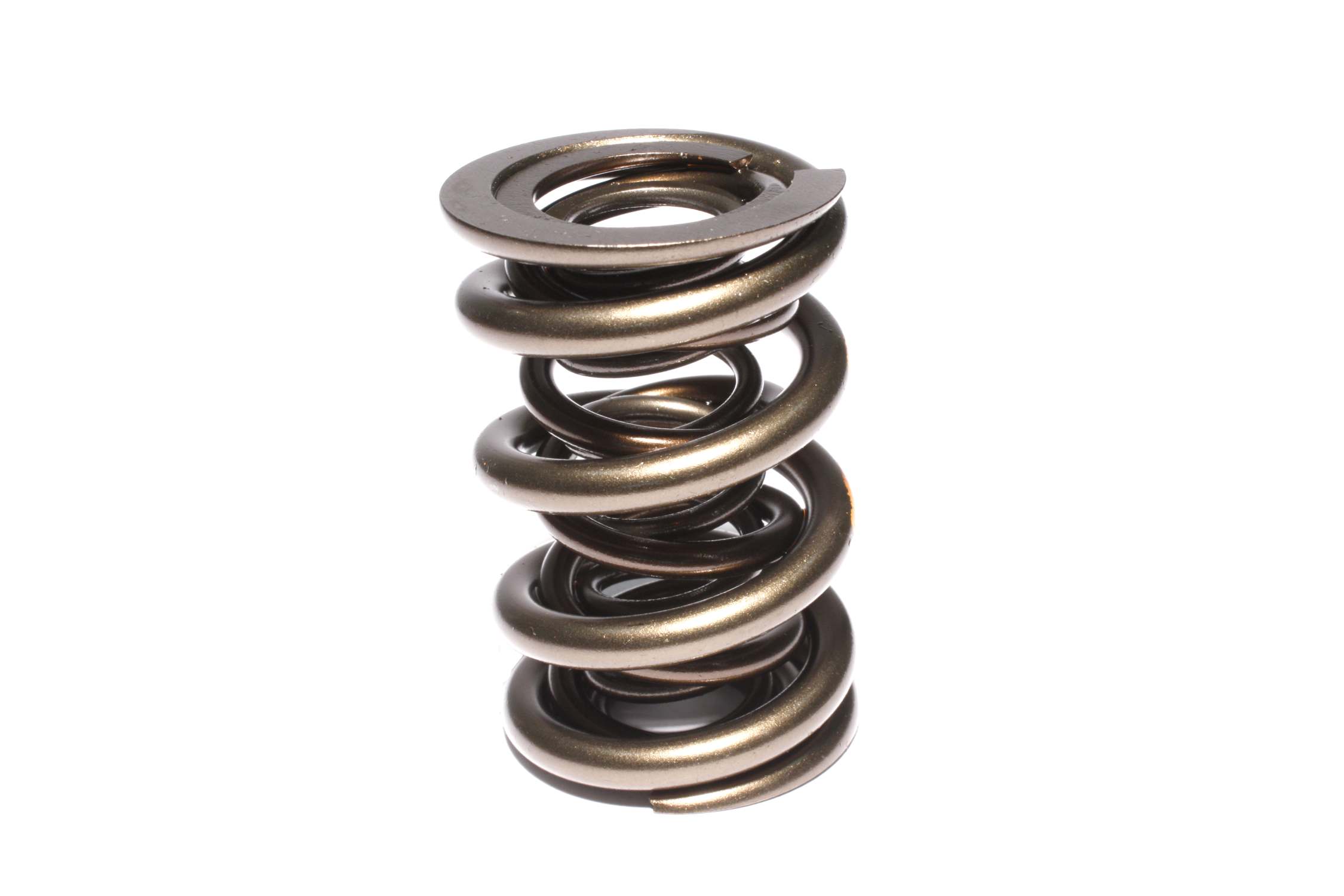

COMP Cams 947-1 Race Extreme Triple Valve Spring OD Installed Height - 1.660 2.050

(Jeep Grand Cherokee 1993-98, Grand Wagoneer 1993; Ford F-150 1975-96, Mustang 1969-73, 1995, F-250 1975-96, Bronco 1978-96 + 433 more models)

Part of: COMP Cams Race Extreme Triple Valve Springs OD Installed Height

Other options in this family: COMP Cams 947-16 COMP Cams 946-16 COMP Cams 26082-16 COMP Cams 26028-16 COMP Cams 26082-1

Manufacturer

Picture for manufacturer COMP Cams

Part Number

947-1
6 reviews
Sale Price

$52.95

In Stock (9)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 947-1 Race Extreme triple valve spring is engineered for high-performance racing engines that demand maximum valve control at extreme RPM levels. This professional-grade spring features a 1.660-inch outer diameter and is designed for a 2.050-inch installed height, making it ideal for aggressive camshaft profiles with high lift and duration.

Key Specifications:

  • Triple spring design for superior valve control and resistance to valve float
  • Outer diameter: 1.660 inches
  • Installed height: 2.050 inches
  • Race Extreme series construction for maximum durability
  • Precision wound from high-quality spring steel
  • Designed for high-RPM racing applications

The triple spring configuration provides increased spring pressure and improved harmonics control compared to single or dual spring setups. This design minimizes coil bind while maintaining consistent valve timing at elevated engine speeds. Each spring is manufactured to strict tolerances to ensure reliable performance in demanding racing conditions. Sold individually to allow for exact quantity ordering based on your engine build requirements.

Products specifications

Fits

Jeep Grand Cherokee 1993-98, Grand Wagoneer 1993; Ford F-150 1975-96, Mustang 1969-73, 1995, F-250 1975-96, Bronco 1978-96, Thunderbird 1968-79, F-350 1975-96, Galaxie 500 1969-74, F-100 1975-79, F-250 Pickup 1973-79, 1983-94 + 428 more models

Inner Spring Inside Diameter

0.863/0.627

Coil Bind Height

1.145

Outer Spring Inside Diameter

1.196

Outer Spring Outside Diameter

1.66

Seat Height

2.05

Number of Springs

3

Seat Pressure

304

Compatible Spring Cup (O.D. Locator)

4708-1

Compatible Shims

4756

Spring Rate

681

Compatible Retainer

739-1

Damper

No

Compatible .570" Guide Diameter Spring Seats

4786-1

AMAZON ASIN

B00062YH7Y

Valve Spring Series

Race Extreme

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
