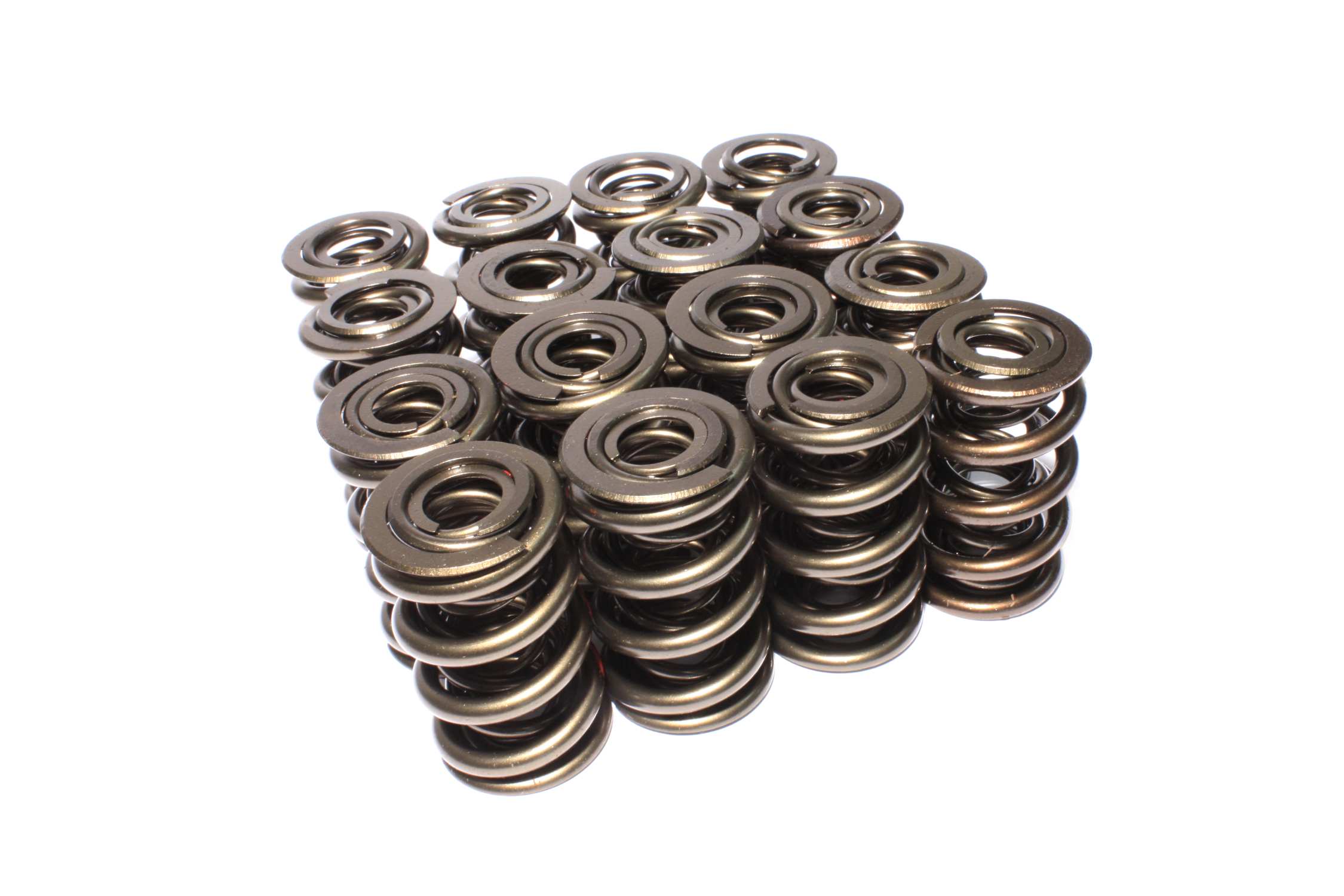

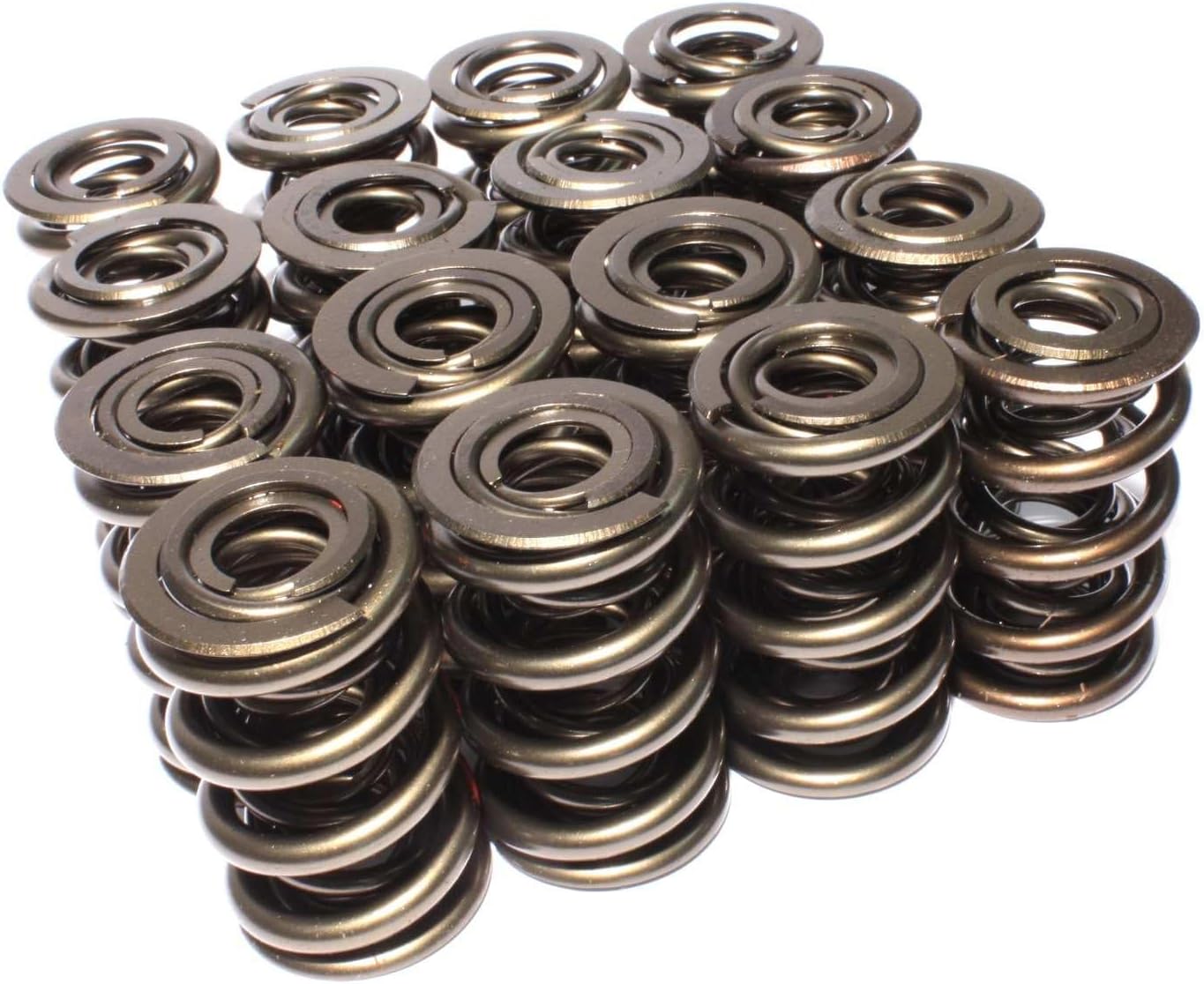

COMP Cams 26028-16 Race Extreme Triple Valve Springs OD Installed Height - 1.686 2.200 16 Pack

(GMC G2500 1979-95, Yukon 1992-95, K1500 1979-86, 1988-95, C1500 1979-86, 1988-95, K2500 1979-86, 1988-95, Jimmy 1970-91 + 203 more models)

Part of: COMP Cams Race Extreme Triple Valve Springs OD Installed Height

Other options in this family: COMP Cams 947-16 COMP Cams 946-16 COMP Cams 26082-16 COMP Cams 26082-1 COMP Cams 26028-1

Manufacturer

Picture for manufacturer COMP Cams

Part Number

26028-16
6 reviews
Sale Price

$740.95

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 26028-16 Race Extreme Triple Valve Springs are engineered for high-performance racing engines that demand maximum valve control at extreme RPM. These triple-wound springs feature a 1.686" outer diameter and are designed for a 2.200" installed height, providing superior resistance to valve float and maintaining precise valve control under the most demanding racing conditions.

Key Features:

  • Triple-wound design for maximum spring load and valve control
  • 1.686" outer diameter fits most high-performance cylinder heads
  • 2.200" installed height specification
  • Race Extreme construction for high-RPM durability
  • Manufactured from high-quality spring steel
  • 16 springs included—enough for 8-cylinder applications

COMP Cams Race Extreme valve springs are precision-manufactured to strict tolerances and heat-treated for maximum durability. The triple-spring design effectively dampens harmonics while providing the spring pressure needed for aggressive cam profiles and high-RPM operation. Ideal for serious racing applications including drag racing, road racing, and other competitive motorsports where valve train stability is critical.

Products specifications

Fits

GMC G2500 1979-95, Yukon 1992-95, K1500 1979-86, 1988-95, C1500 1979-86, 1988-95, K2500 1979-86, 1988-95, Jimmy 1970-91, C3500 1979-86, 1988-95, K2500 Suburban 1979-86, 1992-95, K3500 1979-86, 1988-95, C15/C1500 Pickup 1967-74 + 199 more models

Inner Spring Inside Diameter

0.864/0.624

Coil Bind Height

1.161

Outer Spring Inside Diameter

1.203

Outer Spring Outside Diameter

1.686

Seat Height

2.2

Number of Springs

3

Seat Pressure

342

Compatible Spring Cup (O.D. Locator)

4708-16

Compatible Shims

4756

Spring Rate

712

Compatible Retainer

739-16

Damper

No

Compatible .570" Guide Diameter Spring Seats

4786-16

AMAZON ASIN

B000P595PQ

Valve Spring Series

Race Extreme

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
