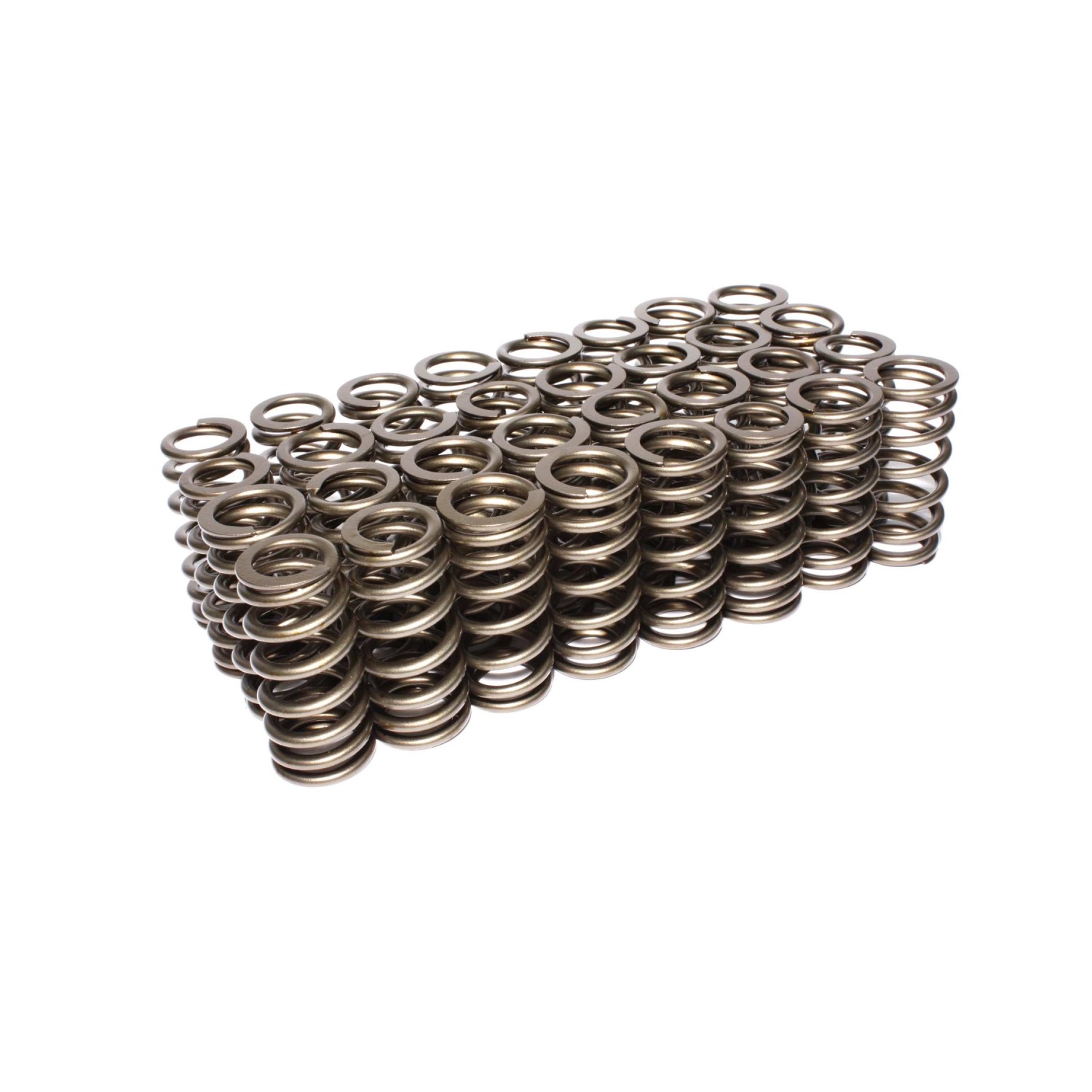

COMP Cams 26125-32 Beehive Valve Springs OD Installed Height - 1.101 1.640 32 Pack

(Ford F-150 1997-2004, Mustang 1996-2005, 2011-16, F-250 Super Duty 1999-2003, Explorer 2002-03, F-350 Super Duty 1999-2003 + 34 more models)

Part of: COMP Cams Beehive Valve Springs OD Installed Height

Other options in this family: COMP Cams 26056-16 COMP Cams 26918-1 COMP Cams 26925-1 COMP Cams 7228-16 COMP Cams 26055-16

Manufacturer

Picture for manufacturer COMP Cams

Part Number

26125-32
14 reviews
Sale Price

$659.95

In Stock (5)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 26125-32 Beehive Valve Springs are engineered for race and street performance applications requiring precise valve control and enhanced RPM capability. These springs feature a distinctive beehive design that reduces valvetrain weight while maintaining excellent spring control characteristics.

Key Specifications:

  • Outside Diameter: 1.101 inches
  • Installed Height: 1.640 inches
  • Beehive design reduces valvetrain mass and friction
  • Quantity: 32 springs (16 pairs for V8 applications)
  • Compatible with performance camshafts and racing applications
  • Manufactured from high-quality spring steel for durability

Features & Benefits:

  • Beehive taper reduces retainer and locks weight for higher RPM capability
  • Lower spring pressures at the retainer minimize valvetrain friction
  • Designed to prevent valve float and maintain positive valve control
  • Ideal for street/strip and race engine builds
  • Precision wound to exacting tolerances for consistent performance

These valve springs are designed to work with COMP Cams performance camshafts and valvetrain components. The 32-spring set provides complete coverage for dual overhead cam or multi-valve engine configurations. Proper installation requires measuring installed height and seat pressure to ensure optimal performance and valvetrain longevity.

Products specifications

Fits

Ford F-150 1997-2004, Mustang 1996-2005, 2011-16, F-250 Super Duty 1999-2003, Explorer 2002-03, F-350 Super Duty 1999-2003, Expedition 1997-2003, F-250 1997-99, Crown Victoria 1992-2003, Excursion 2000-03, Thunderbird 1994-97 + 29 more models

Coil Bind Height

0.97

Seat Height

1.64

Seat Pressure

120

Compatible Retainer

763-32

AMAZON ASIN

B0014F6FWM

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
