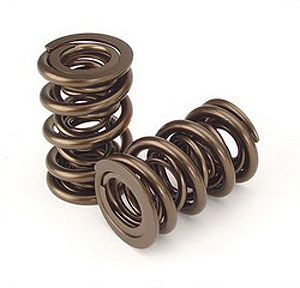

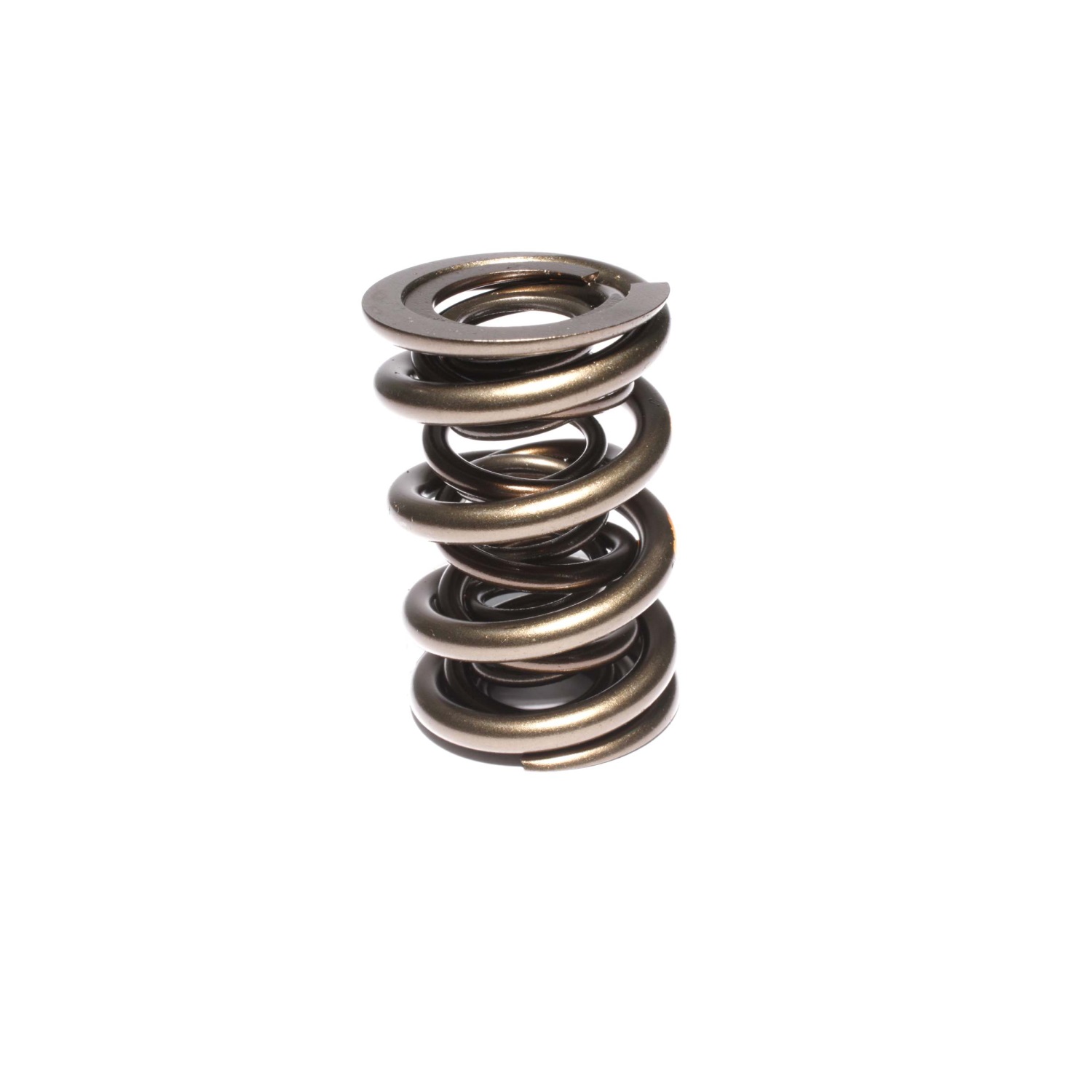

COMP Cams 946-1 Race Extreme Triple Valve Spring OD Installed Height - 1.660 2.000

Part of: COMP Cams Race Extreme Triple Valve Springs OD Installed Height

Other options in this family: COMP Cams 947-16 COMP Cams 946-16 COMP Cams 26082-16 COMP Cams 26028-16 COMP Cams 26082-1

Manufacturer

Picture for manufacturer COMP Cams

Part Number

946-1
9 reviews
Sale Price

$52.95

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 946-1 Race Extreme triple valve spring is engineered for high-performance racing engines that demand maximum valvetrain control at elevated RPM. This precision-manufactured spring features a 1.660-inch outer diameter and is designed for a 2.000-inch installed height, providing the aggressive seat pressure and open pressure characteristics needed for radical camshaft profiles.

Key Specifications:

  • Outer diameter: 1.660 inches
  • Installed height: 2.000 inches
  • Triple spring design for superior valve control
  • Race Extreme series construction
  • Ideal for high-lift, high-RPM racing applications

The triple spring configuration provides increased spring pressure while minimizing harmonic vibrations and valve float, making this spring suitable for aggressive racing camshafts with high lift and duration. COMP Cams Race Extreme springs are manufactured from premium chrome silicon alloy and heat-treated for durability and consistent performance under extreme conditions. Sold individually.

Products specifications

Inner Spring Inside Diameter

0.863/0.627

Coil Bind Height

1.13

Outer Spring Inside Diameter

1.196

Outer Spring Outside Diameter

1.66

Seat Height

2

Seat Pressure

285

Number of Springs

3

Compatible Spring Cup (O.D. Locator)

4702-1

Compatible Shims

4756

Spring Rate

689

Compatible Retainer

739-1

Damper

No

AMAZON ASIN

B00062YH6U

Valve Spring Series

Race Extreme

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
