RADIUM Engineering 20-0563-FL CCV Catch Can Kit for Cadillac CTS-V LSA Engine

The RADIUM Engineering 20-0563-FL is a closed-loop crankcase ventilation (CCV) catch can kit engineered specifically for 2009-2015 Cadillac CTS-V models equipped with the supercharged LSA engine. This kit features RADIUM's advanced Fluid Lock technology for superior oil separation and secure fluid retention.

Key Features:

• Large 10AN ORB inlet/outlet ports and 4AN ORB drain port for efficient flow
• Two-step oil separation baffling system captures oil mist and sludge effectively
• O-ring sealed dipstick for easy fluid level inspection
• Pressure-sealed design eliminates need for additional check valves
• Mounts to three OEM threaded bosses at rear of supercharger housing
• Runs inline between crankcase vent ports and intake pipe
• Emissions and track legal closed-loop system

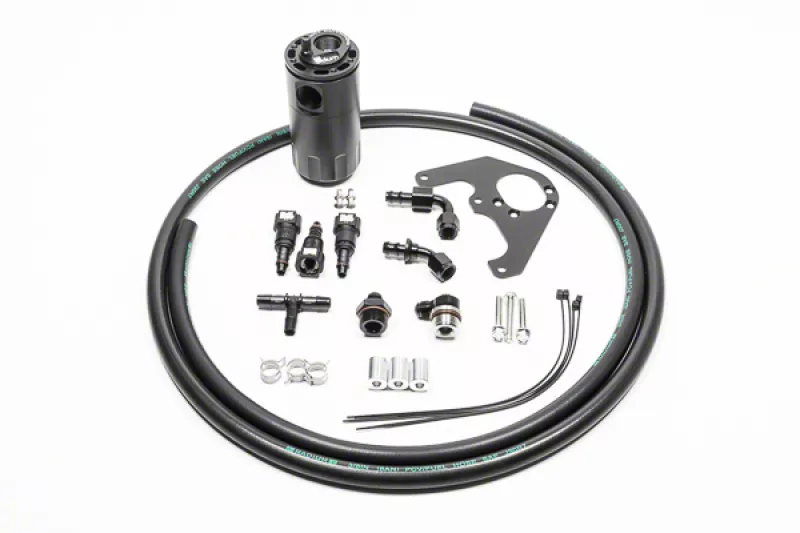

What's Included:

• Baffled oil catch can with Fluid Lock technology
• LSA-specific aluminum mounting bracket
• AN adapter fittings and hose ends
• Stainless steel hardware
• RADIUM PCV hose

This system prevents oil and sludge accumulation in the intake pipe and intercooler, which can reduce thermal efficiency and performance during high-load operation. The closed-loop design promotes negative crankcase pressure for optimal performance while preventing oil vapors from entering the cabin. No cutting, drilling, or permanent modifications required for installation.
