RADIUM Engineering 20-0759-FL Fluid Lock CCV Catch Can Kit for 2023+ Toyota GR Corolla

The RADIUM Engineering Fluid Lock CCV Catch Can Kit features a patented mechanism that prevents the reservoir from overfilling and traps collected fluids until emptied, solving a critical problem with traditional catch cans that allow contaminants to overflow into the intake system. This catch can features large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick for easy fluid level inspection.

How It Works:

The catch can kit runs inline between the crankcase vent (CCV) port on the valve cover and the turbocharger inlet port. When the engine is at high load (WOT), high flow from the crankcase would normally lead to oil and sludge accumulation in the turbocharger, intercooler, and intake manifold, but the CCV catch can captures this and promotes clean filtered air back into the intake. This closed loop system does NOT vent to atmosphere (VTA), making it emissions and track legal, while removing oil and sludge from PCV gasses and promoting negative crankcase pressure for optimal performance.

Installation Features:

• Mounts to threaded studs on the RH strut tower with no permanent modifications required
• Compatible with the OEM engine cover
• Easy to install (10-30 minutes)
• Mounts using factory threads and integrates perfectly with surrounding components

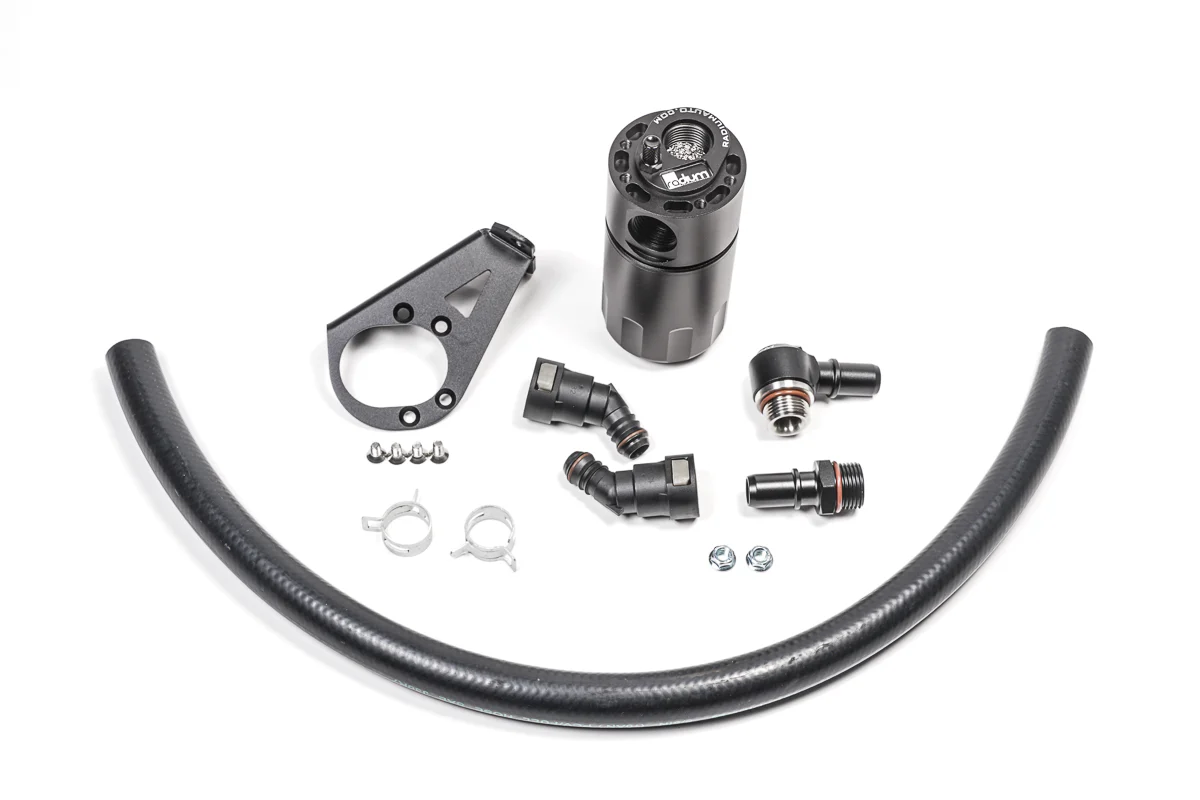

Kit Includes:

• Baffled oil catch can with Fluid Lock technology (7 fluid ounce capacity)
• GR Corolla specific mounting bracket
• 10AN to SAE quick connect fittings
• SAE quick connect hose ends
• Stainless steel hardware
• RADIUM PCV hose

It is recommended to check catch can fluid level every 5,000 miles (8,000km), using the integrated dipstick. The collected oil and moisture should be drained into an oil-safe container and disposed of properly. This kit is designed for 2023+ Toyota GR Corolla models including Core, Premium, Circuit Edition, and Morizo Edition.
