RADIUM Engineering 20-0754-FL PCV Fluid Lock Catch Can Kit for 2022+ Subaru WRX

The RADIUM Engineering 20-0754-FL features the revolutionary patented Fluid Lock catch can design that prevents reservoir overfilling and traps collected fluids until emptied, providing superior engine protection for your 2022+ Subaru WRX. This PCV catch can kit runs inline between the PCV valve and the intake manifold and promotes clean filtered air back into the engine.

Advanced Fluid Lock Technology:

Traditional catch cans have an inherent problem when not serviced regularly - fluid contaminants will eventually leave the reservoir and pour into the air intake system causing poor engine performance. The Fluid Lock catch can resolves this issue with a patented mechanism that ensures consistent performance between service intervals.

Key Features:

• Large 10AN ORB ports with 4AN ORB drain port
• 2-step oil separation baffling system
• O-ring sealed dipstick for easy level checking
• 7 fluid ounce capacity
• Pressure sealed design - no extra inline check valve required
• Mounts near passenger side strut tower
• Mounts to threaded bosses on the ABS unit with no cutting, drilling or permanent modifications required

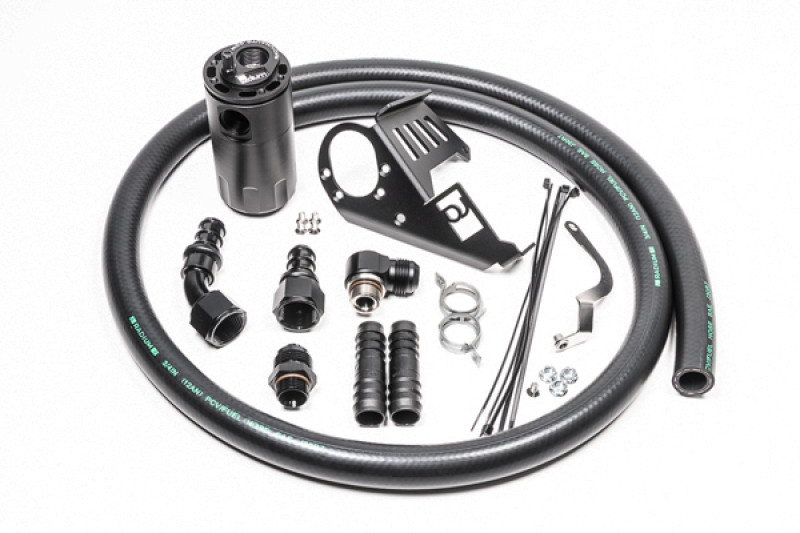

Complete Installation Kit Includes:

• Baffled oil catch can with Fluid Lock technology
• WRX VB-specific mounting bracket
• 12AN adapter fittings and hose ends
• Stainless steel hardware
• 3/4" PCV hose

How It Works:

When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV check valves close and the hoses experience no flow. Conversely, the PCV hoses will experience metered vacuum when the engine is idling, steady state cruising, and decelerating, which would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. This catch can effectively captures these contaminants before they can enter your intake system.

Performance Benefits:

• Effectively raises the octane and increases engine performance from cleaner inlet air
• Prevents oil buildup in the intake and intercooler system walls, throttle body, and intake manifold
• Lowers hydrocarbon emissions
• Excessive oil collection can be an indicator of a damaged engine

Compatibility Note: The PCV catch can kit is compatible and recommended to be used with the CCV catch can kit (part# 20-0755-FL) for complete crankcase ventilation protection.

Designed specifically for the 2022+ Subaru WRX VB chassis with vehicle-specific brackets and hardware for a professional, factory-like installation. This product is designed for off-road use only.
