MSD 8600 Flying Magnet Crank Trigger Wheel Kit - Small Block Chevy - 6.25 in. - Red

The MSD 8600 Flying Magnet Crank Trigger Kit delivers race-proven ignition timing stability for Small Block Chevy engines equipped with a 6.25-inch harmonic balancer. Unlike conventional crank trigger systems that rely on steel studs and a magnetic pickup, the MSD Flying Magnet design embeds four powerful magnets directly into a precision-machined billet aluminum trigger wheel. As the crankshaft rotates, these magnets pass by a stationary non-magnetic pickup — eliminating the risk of false triggering from stray bolts, debris, or engine vibration that can plague traditional setups.

Key Features:

• Four powerful magnets embedded in a 6061-T6 billet aluminum trigger wheel, anodized MSD Red
• Non-magnetic pickup sensor cannot be falsely triggered by stray hardware, debris, or vibration
• Includes a two-piece CNC-machined aluminum mounting bracket slotted for a wide range of timing adjustments
• Bracket mounts on either the passenger side or driver's side of the engine for flexible installation
• Spacers included for engines with standard motor mounts or a 0.25-inch motor plate
• Compatible with MSD 6, 7, and 8 Series Ignition Controls and all MSD Timing Accessories
• Designed for Small Block Chevy engines with a 6.25-inch diameter harmonic balancer

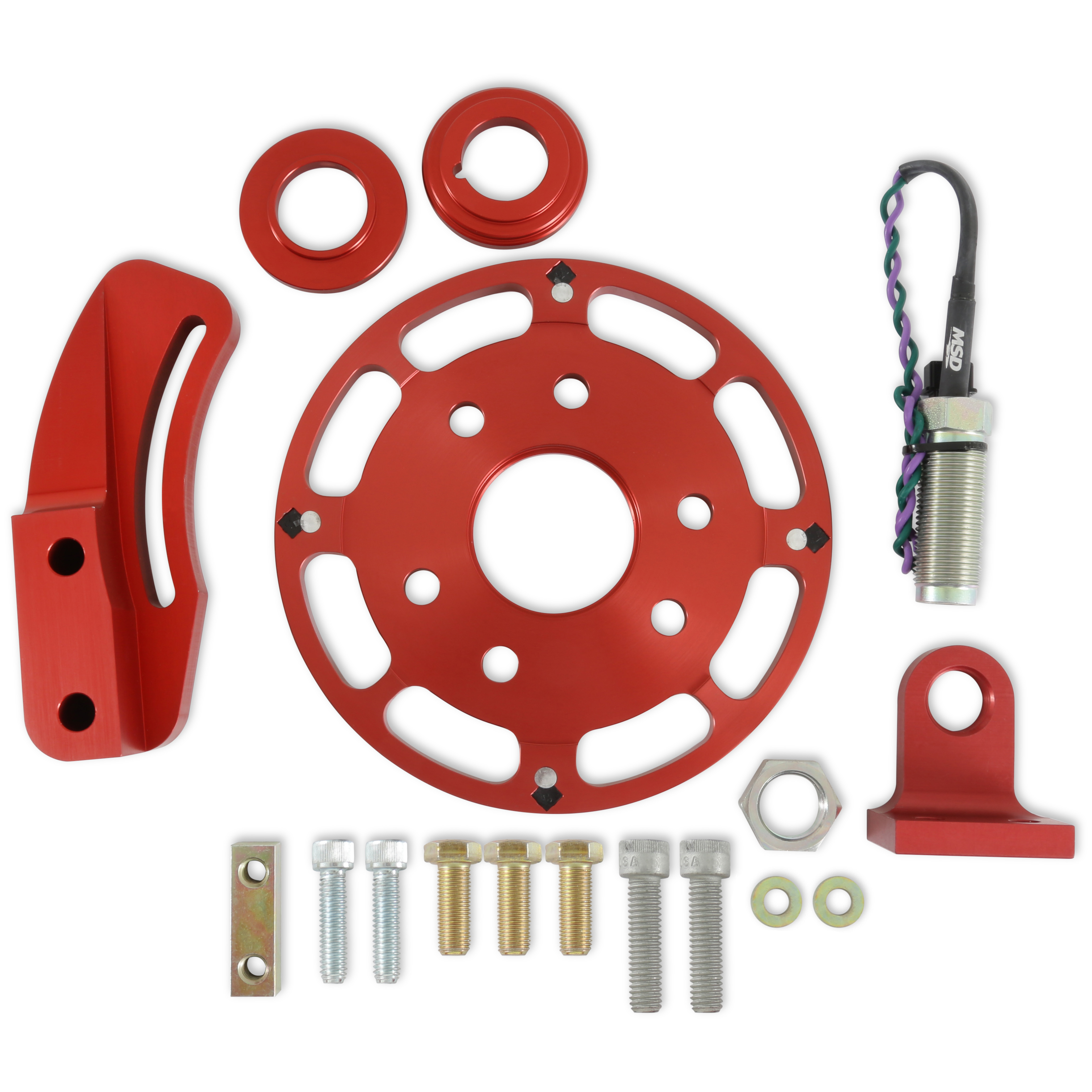

What's Included:

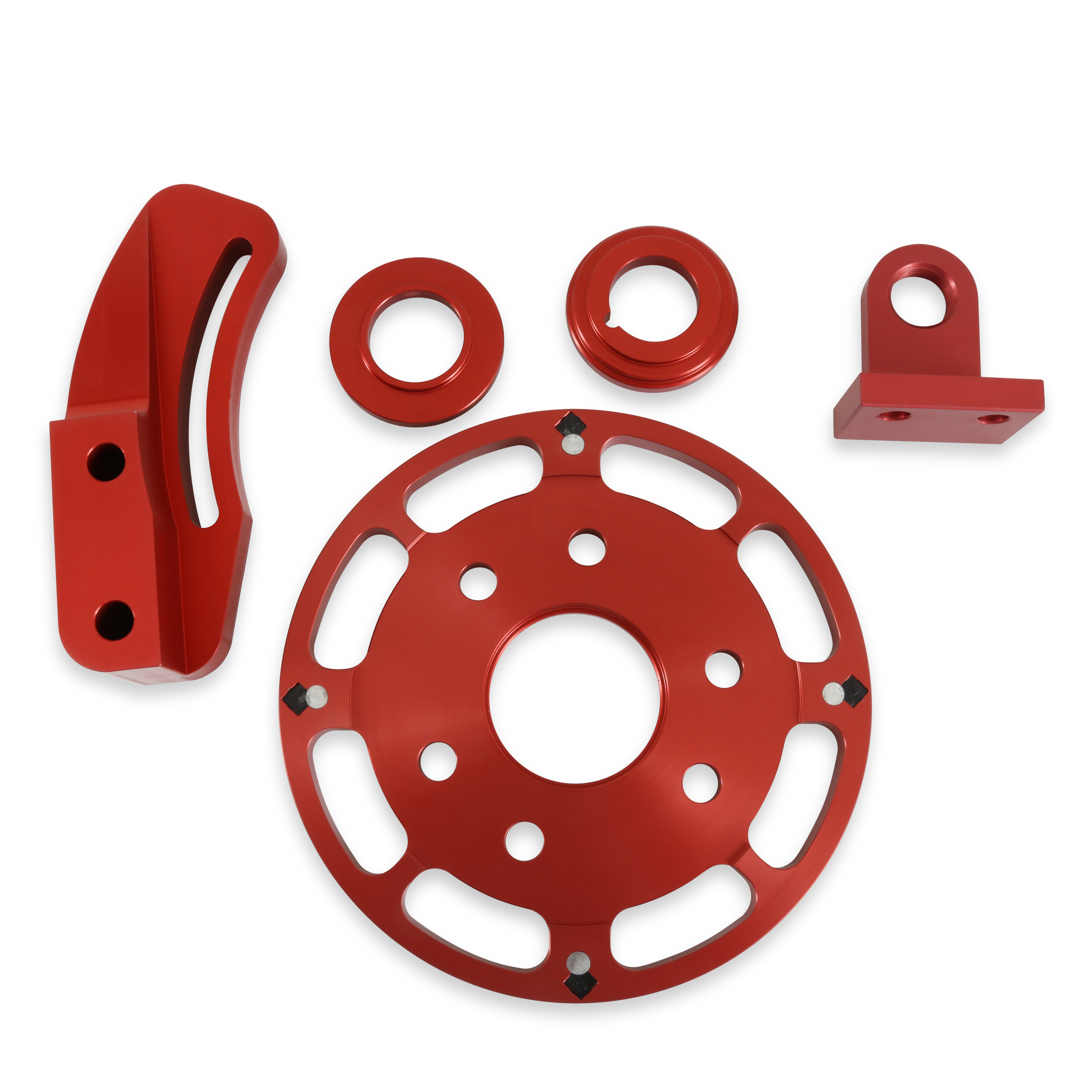

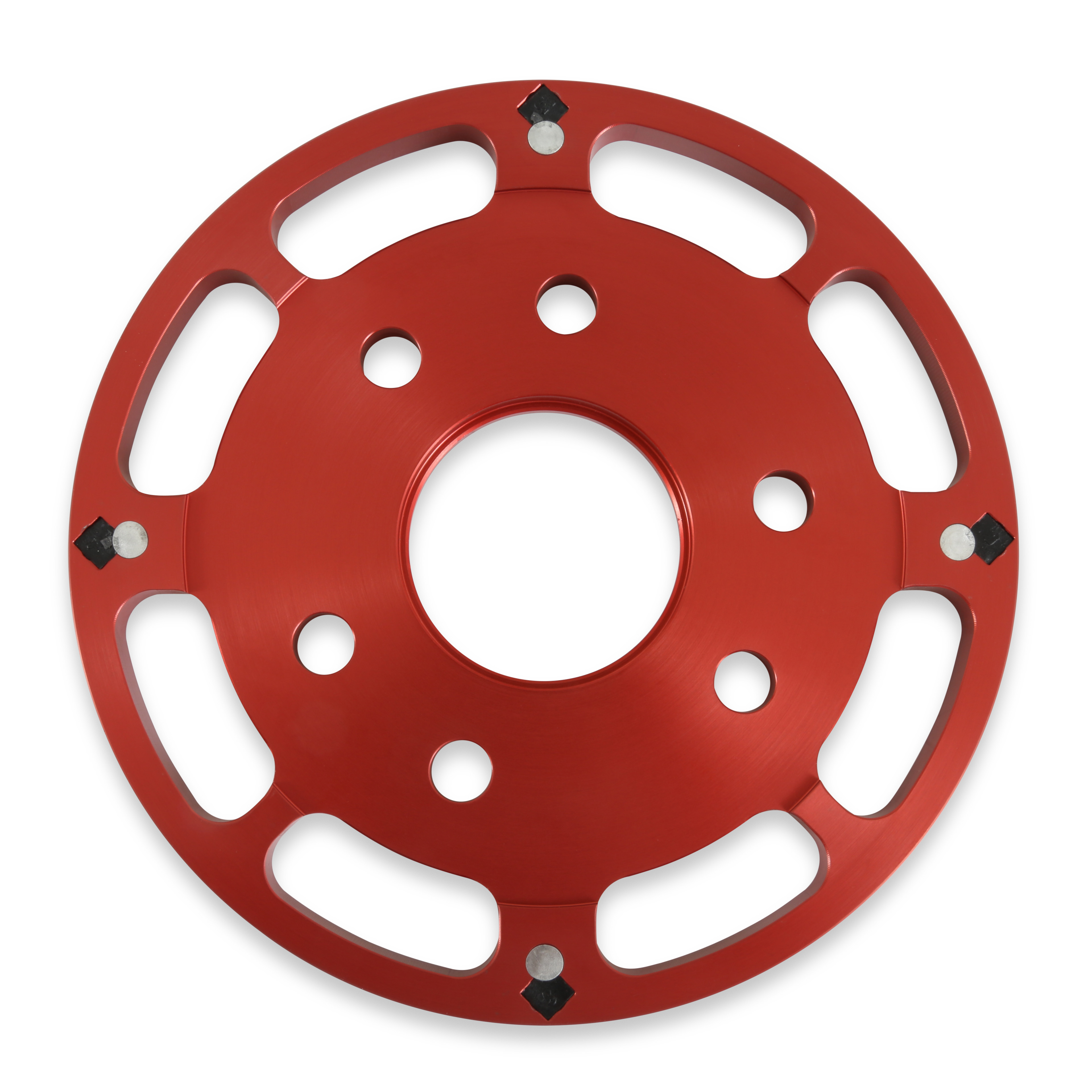

• Flying Magnet trigger wheel (Red)

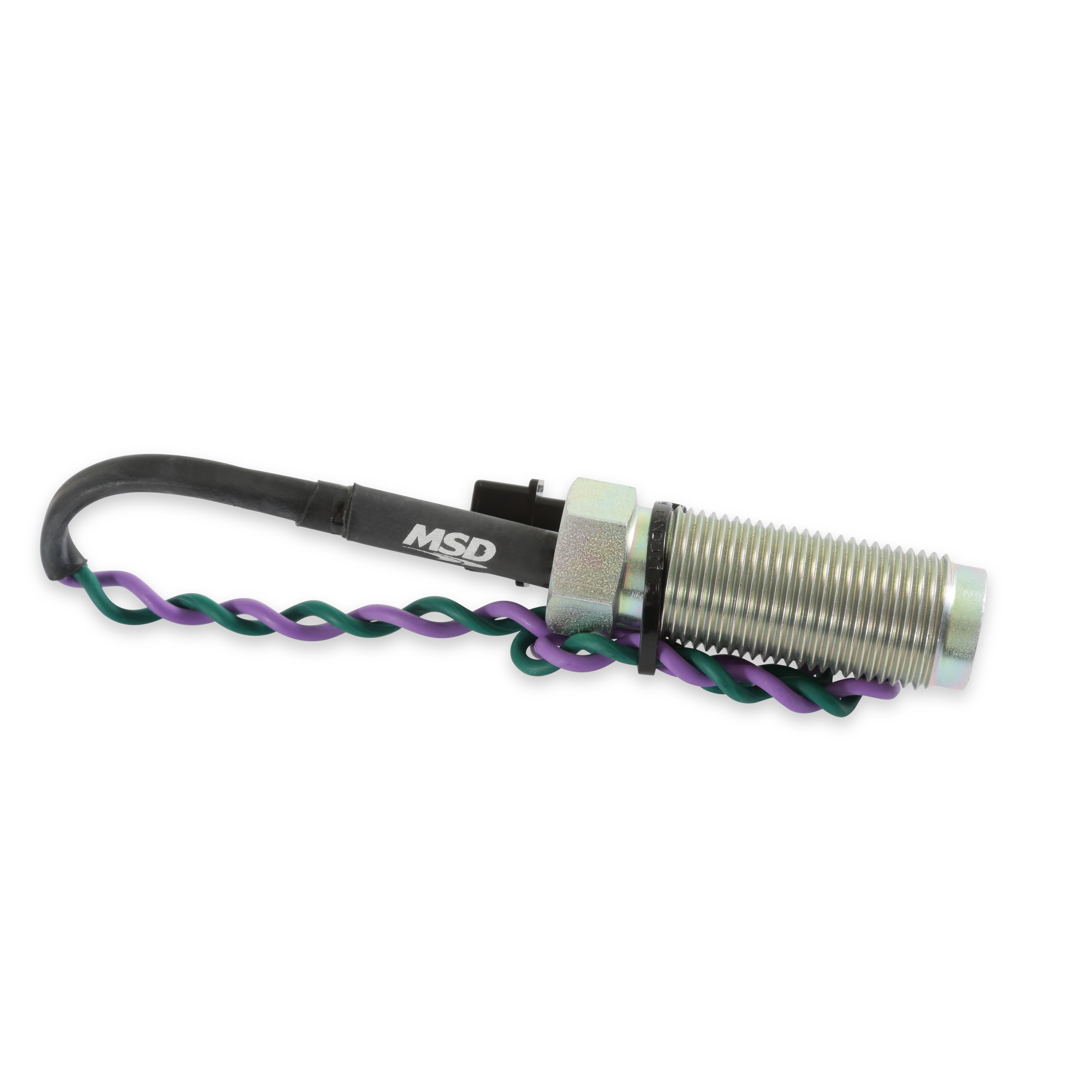

• Non-magnetic crank trigger pickup

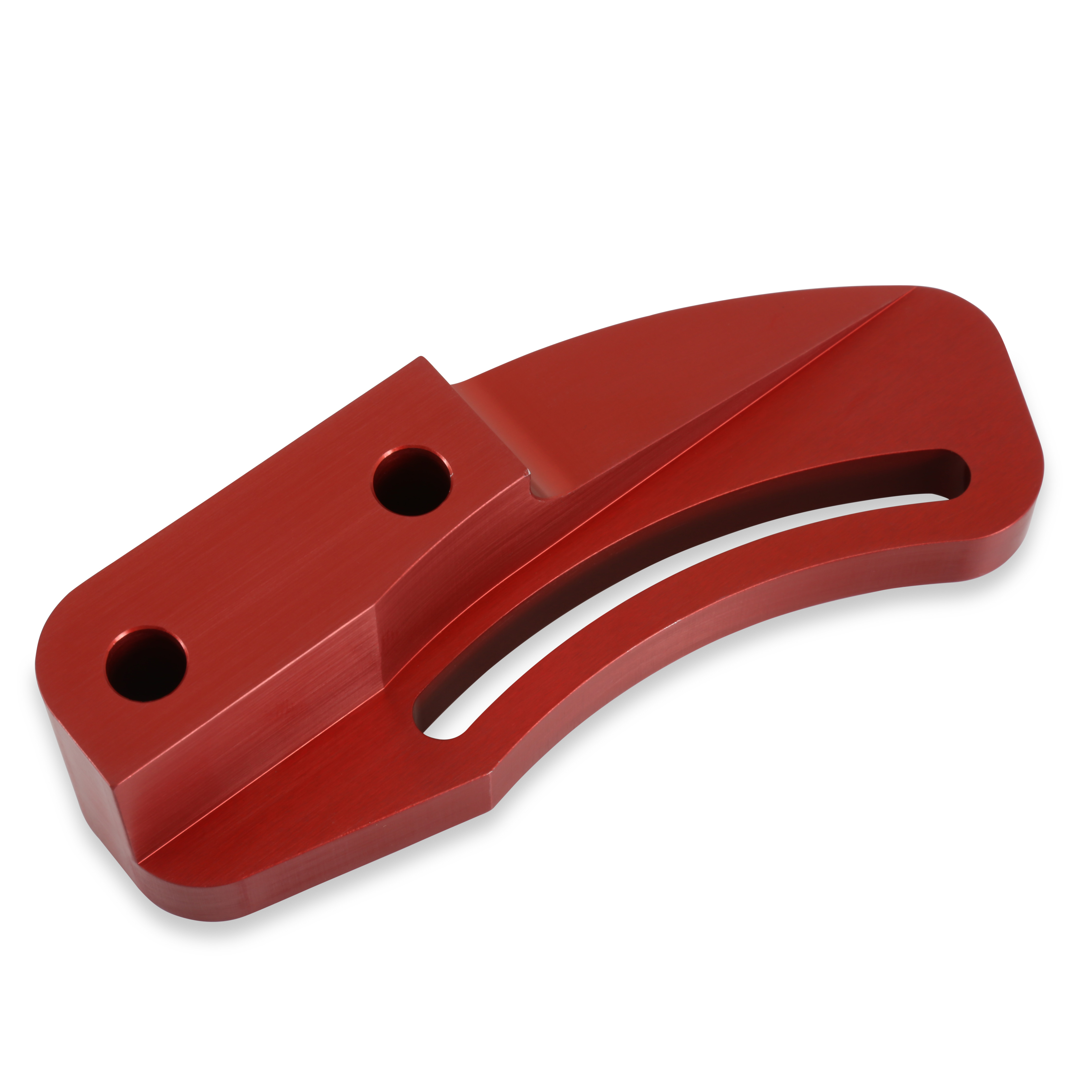

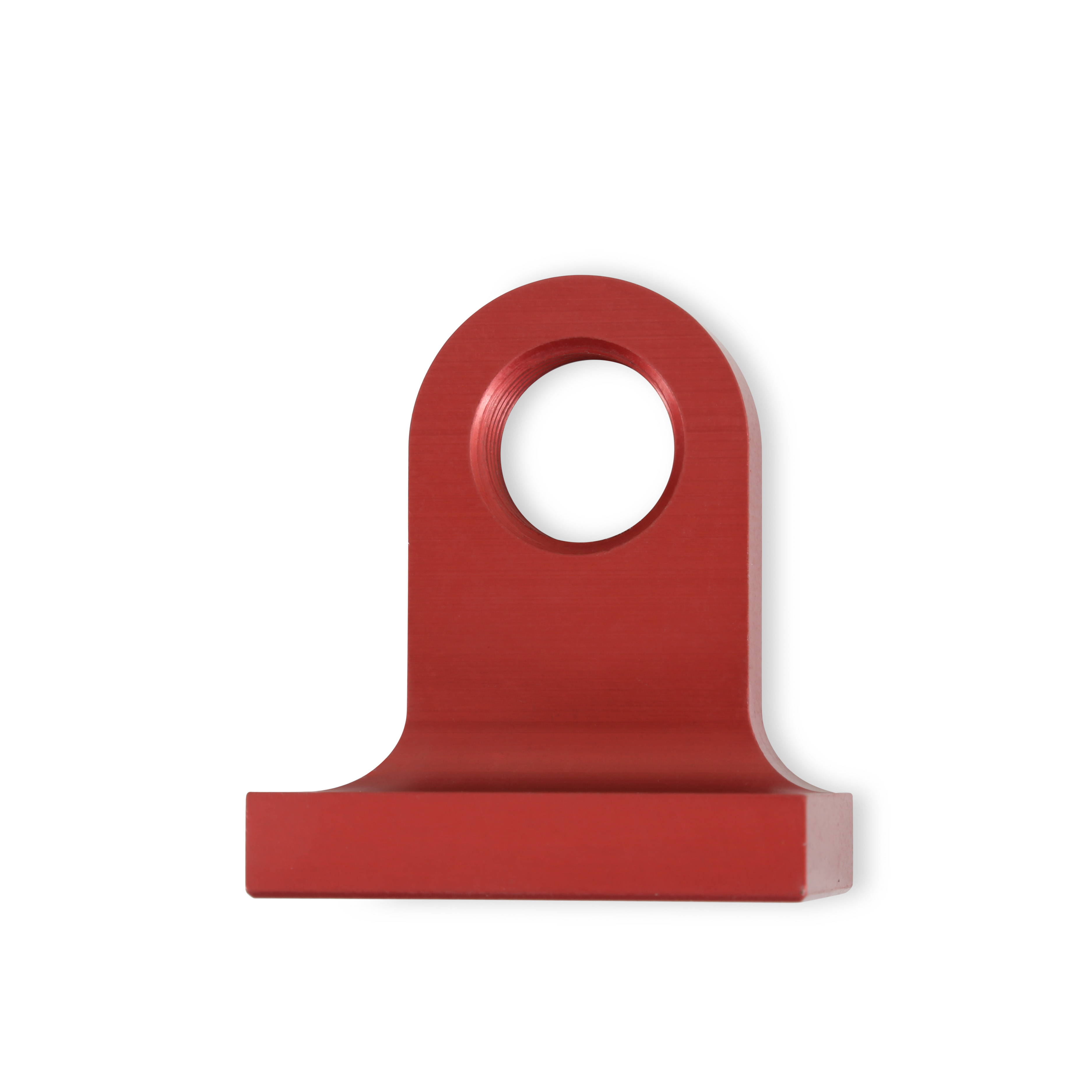

• CNC-machined two-piece aluminum mounting bracket
• Centering ring
• Mounting hardware and spacers

The MSD 8600 is a complete bolt-on kit engineered for racers who demand precise, repeatable ignition timing. Must be used with an MSD 6, 7, or 8 Series ignition control and a locked-out distributor. Racing use only — not legal for use on emissions-controlled vehicles.
