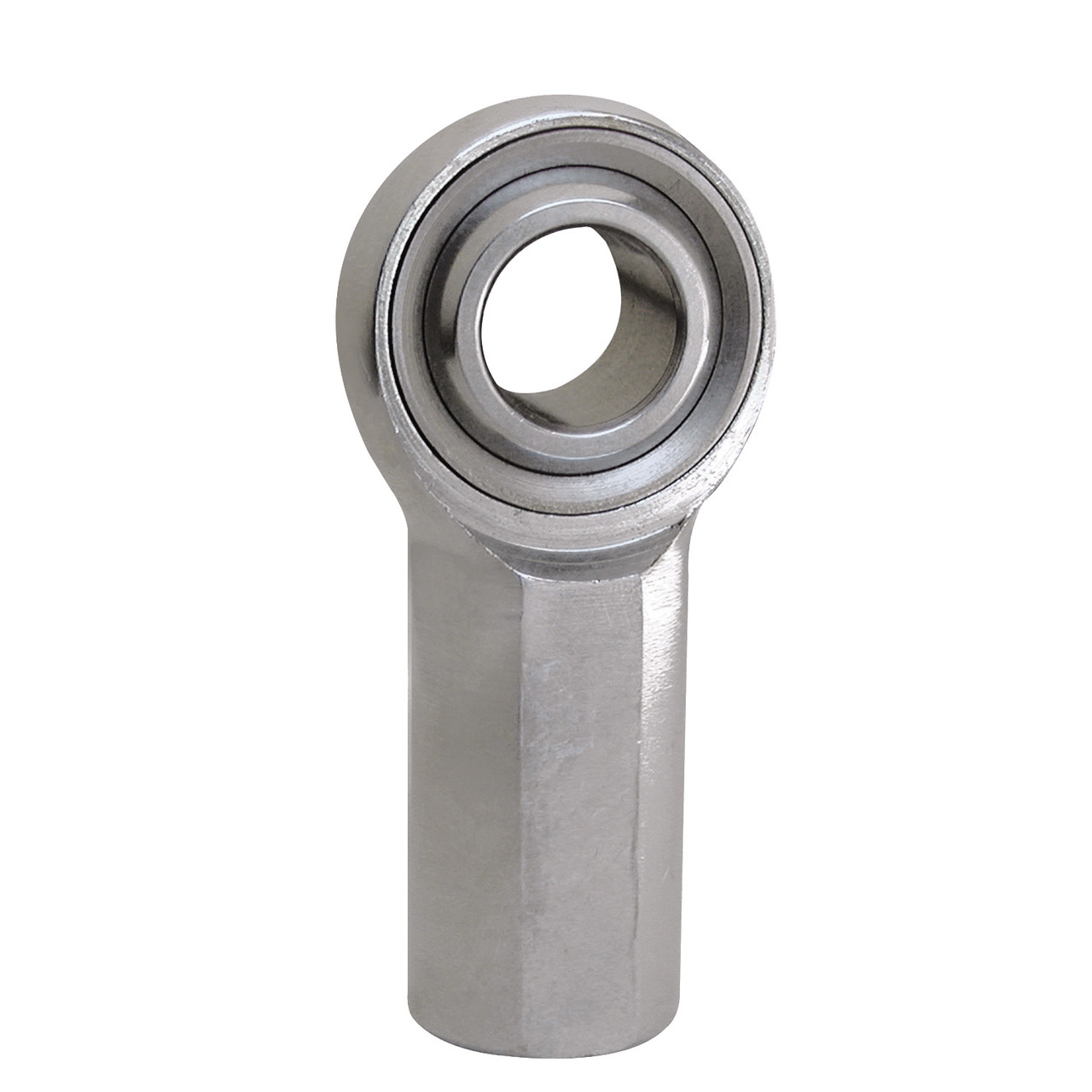

QA1 MHFR16T-1 MHF-T Series 3-Piece Female Rod End 16mm Bore M16x2.0 PTFE Lined

The QA1 MHFR16T-1 is a precision-engineered three-piece female rod end from the MHF-T Series, designed for demanding automotive, racing, and industrial applications. This metric rod end features a self-lubricating PTFE liner added to a traditional chromoly steel construction, providing enhanced durability and reduced maintenance requirements across a wide range of applications.

Construction and Materials:

• Ball: 52100 bearing steel, heat treated, hard chrome plated, and precision ground for maximum strength and wear resistance
• Race: Low carbon steel with corrosion and wear-resistant treatment, featuring PTFE lining for self-lubrication
• Body: Heat-treated chromoly steel with protective coating for superior corrosion resistance

Specifications:

• Bore size: 16mm (0.63 inch)
• Thread size: M16 x 2.0 right-hand female threads (6G tolerance)
• Design: 3-piece construction with PTFE liner
• Thread orientation: Right-hand

Features and Benefits:

• PTFE liner provides self-lubricating properties, reducing maintenance and extending service life
• Heat-treated chromoly steel construction ensures exceptional strength and durability
• Precision ground components deliver smooth articulation and tight tolerances
• Hard chrome plated ball resists wear and corrosion in harsh environments
• Female thread configuration allows for versatile mounting options
• Ideal for suspension linkages, control arms, steering components, and custom fabrication projects

QA1 Precision Products manufactures high-quality rod ends trusted by professional racers, automotive enthusiasts, and industrial applications worldwide. The MHF-T Series represents proven three-piece rod end technology enhanced with modern self-lubricating materials for superior performance and longevity.
