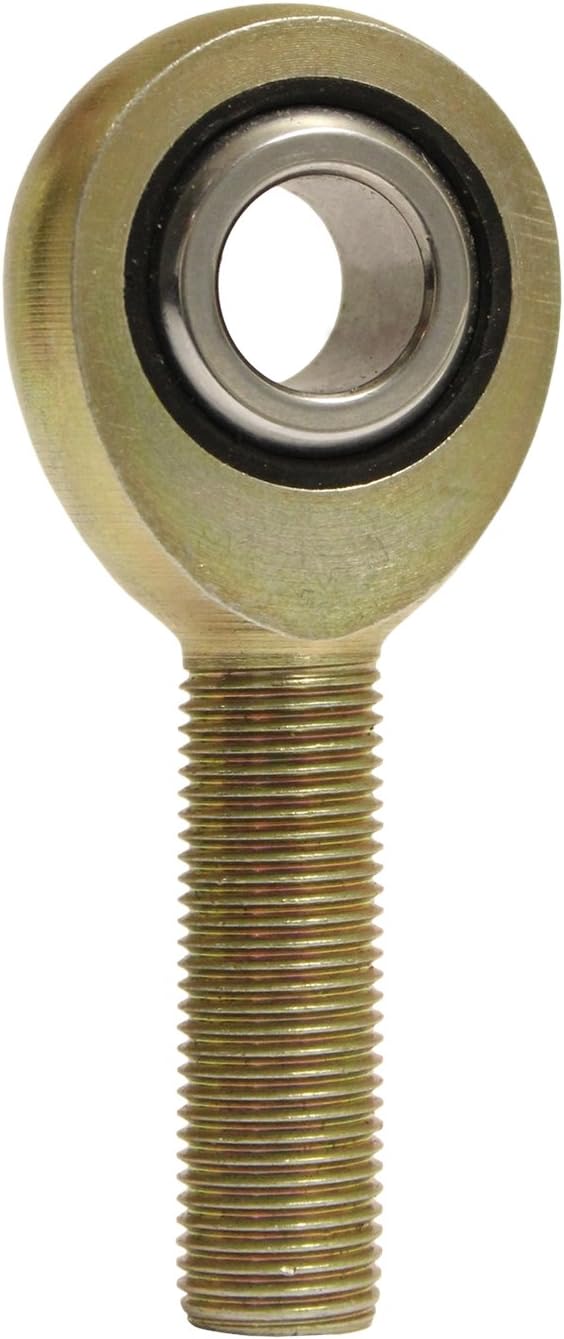

QA1 Precision Products NML4 Male Rod End with Nylon Race 1/4-28 LH Thread 1/4 Inch Bore

Manufacturer

Part Number

NML4
Sale Price

$5.19

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 Precision Products NML4 is an N Series injection molded carbon steel male rod end designed for low load, moderate oscillation commercial and industrial applications. This economical rod end features a 1/4 inch bore with 1/4-28 left-hand male threads.

Key Features:

  • Heat-Treated 52100 Bearing Steel Ball: Precision ground and hard chrome plated for maximum durability and corrosion resistance
  • Self-Lubricating Nylon 12/PTFE Race: Injection molded race compound provides low friction, minimal moisture absorption, and exceptional wear resistance
  • Carbon Steel Body: Protective coated for corrosion resistance in demanding environments
  • Unique Design: No holes drilled in the rod end body, maintaining full structural strength and integrity
  • Three-Piece Construction: Engineered for reliable performance in commercial applications
  • 16-Degree Angular Misalignment: Allows pivoting to compensate for misalignment
  • 2,470 lb Static Radial Load Capacity: Suitable for moderate load applications

Specifications: 1/4-28 left-hand male threads, 0.250/0.252 inch bore, 0.75 inch thread length (dimension E), 1.562 inch overall length (dimension G), 1.0 inch width (dimension H). The self-lubricating design makes this rod end ideal for applications where regular lubrication is not practical or desirable.

Products specifications

Approx Bearing Weight

0.04

B (+0.0025/-0.0005)

0.25

Ball Dia Ref

0.5

C (+0.062/-0.031)

1

D (+/-0.010)

0.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

16

Notes

Only rod end ball is heat-treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.375 in.

Rod End Centerline Length

1.562 in.

Rod End Construction

1-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.250 in.

Rod End Head Diameter

0.750 in.

Rod End Head Width

0.375 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

16 degrees

Rod End Static Load Capacity

2,470 lbs.

Rod End Style

Nylon lined

Rod End Thread Size

1/4-28 LH in.

Thread Length

1.000 in.

Thread Type

Left Hand

Thread UNF-3A

1/4 -28

UTL Radical Static

2,470

W (+/-0.005)

0.375

Title

QA1 Suspension Rod End Bearing NML4
