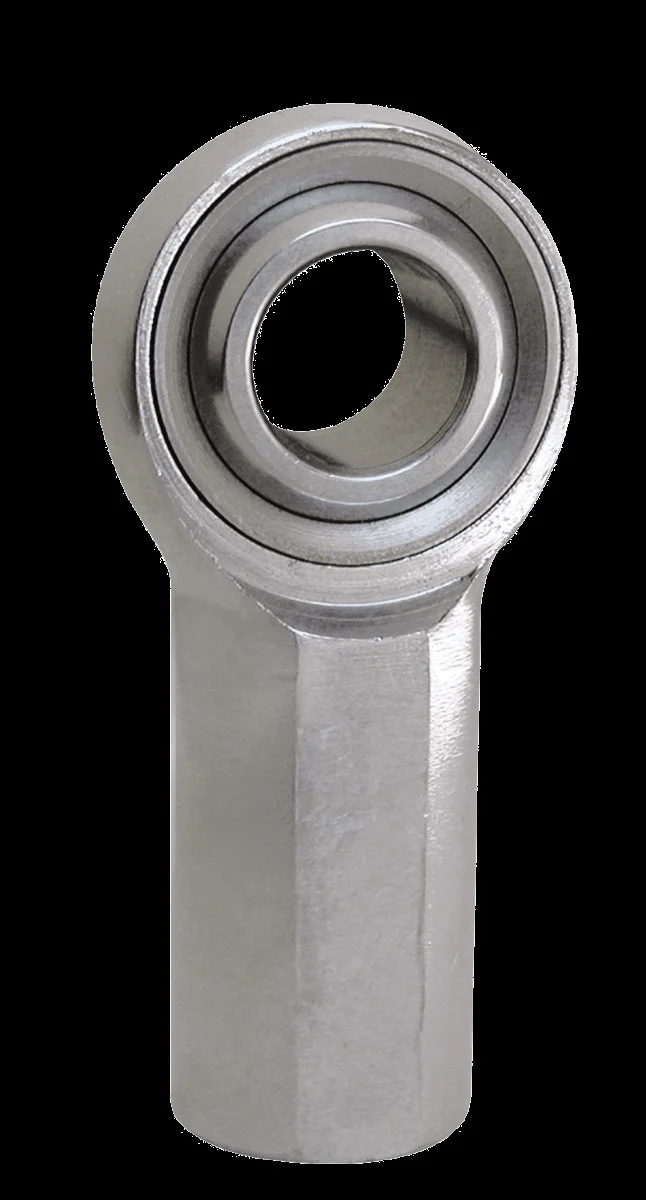

QA1 Precision Products MHFR16-1 H Series 3-Piece Female Rod End 16mm Bore M16x2.0 RH

The QA1 MHFR16-1 is a precision-engineered 3-piece female rod end from QA1's H Series metric line, designed for demanding automotive applications requiring metric threads. This rod end features a traditional three-piece chromoly steel construction that delivers exceptional strength and reliability for suspension linkages, control arms, and custom fabrication projects.

Three-Piece Precision Construction:

The MHFR16-1 utilizes QA1's proven 3-piece design where the ball is pressed into a sleeve and swaged around the ball to form the insert assembly. The outer diameter of the insert is then precision-turned and faced to create tight tolerances for superior performance. This construction method provides higher ball-to-race conformity compared to 2-piece designs, making it ideal for precision applications where tight tolerances are critical.

Key Specifications:

• 16mm bore size for precise bearing fitment
• M16 x 2.0 right-hand female threads
• Thread length: 33mm
• Centerline length: 64mm
• Head diameter: 38mm
• Ball width: 21mm
• Misalignment angle: 23 degrees
• Static load capacity: 56,269 lbs

Premium Materials and Construction:

• Ball: 52100 bearing steel, heat-treated, hard chrome plated, and precision ground for maximum durability
• Race: Chromoly heat-treated steel with corrosion and wear-resistant properties
• Body: Chromoly steel, heat-treated with protective zinc plating for corrosion resistance

Features:

• Metal-to-metal bearing design for high-load applications
• Non-greased configuration (grease fitting versions available separately)
• Heat-treated components throughout for superior strength
• Right-hand threads for standard installations
• Sold individually

This precision rod end is engineered for applications where dimensional accuracy and load-bearing capacity are paramount, making it suitable for race cars, street performance vehicles, and industrial machinery requiring metric threaded connections.
