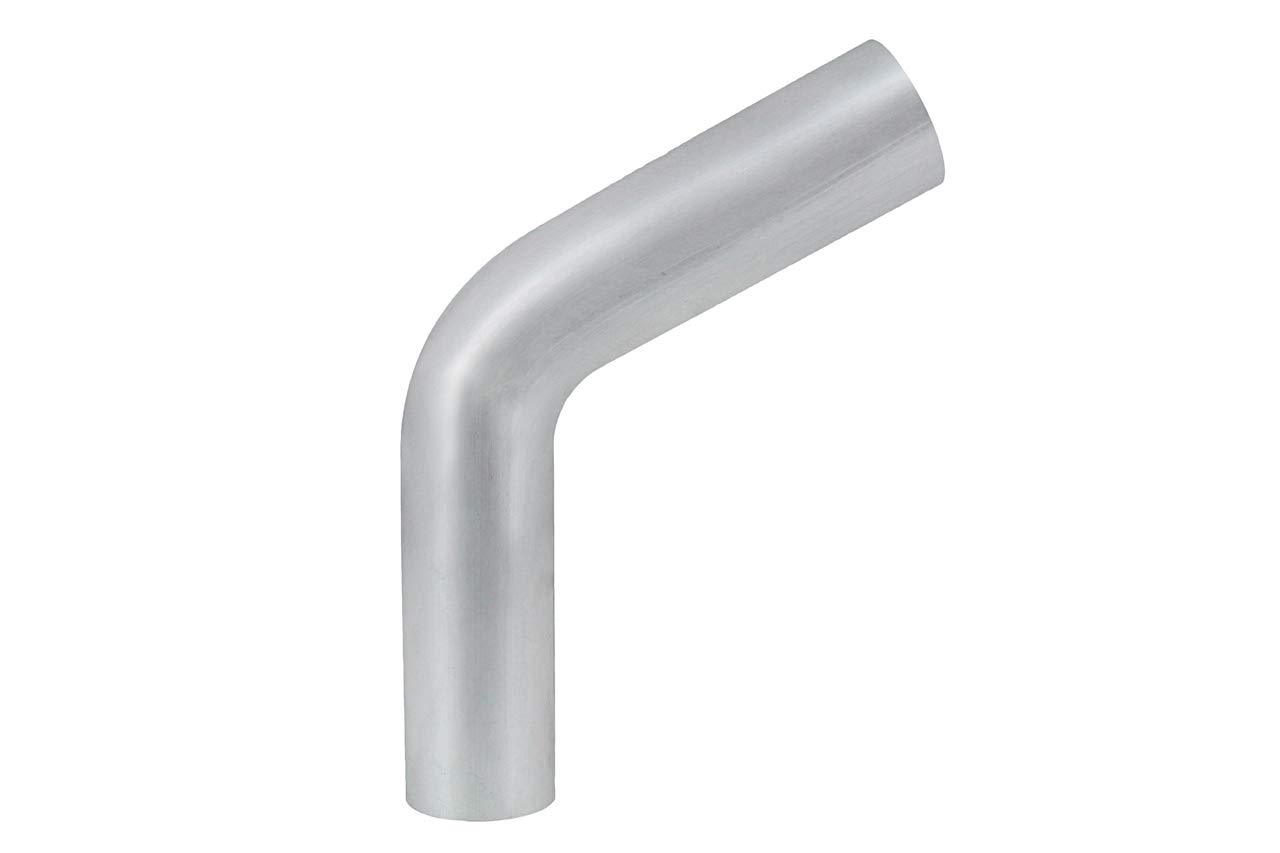

HPS Performance Products AT60-100-CLR-15 60 Degree Aluminum Elbow Tube 1" OD 1.5" CLR

The HPS Performance Products AT60-100-CLR-15 is a precision-engineered 60-degree aluminum elbow tube designed for custom fabrication projects across automotive, marine, aerospace, and industrial applications. Constructed from high-grade 6061-T6 aluminum, this mandrel-bent elbow delivers superior strength-to-weight ratio and excellent corrosion resistance for demanding performance environments.

Key Specifications:

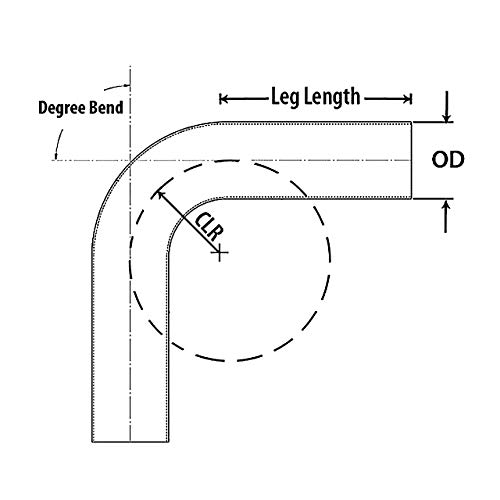

• 60-degree bend angle with 1-1/2 inch centerline radius (tight radius design)
• 1 inch (25mm) outside diameter
• 16-gauge wall thickness (1.65mm) for structural integrity
• 6 inch leg length on each straight section
• Premium 6061-T6 aluminum construction

Applications:

• Custom air intake systems and cold air intake fabrication
• Turbo intercooler piping and boost tube assemblies
• Cooling system plumbing and radiator connections
• Exhaust routing and custom exhaust fabrication
• Marine engine installations and fluid transfer systems

The smooth mandrel-bent construction ensures unrestricted flow with minimal turbulence, making this elbow ideal for high-performance applications where pressure drop must be minimized. The 6061-T6 aluminum alloy provides excellent weldability for permanent installations while maintaining the ability to be polished to a mirror finish or anodized for enhanced appearance and protection.
