Gates G20365-2016 20GS-16FLH90M GlobalSpiral Code 62 Flange 90° Hydraulic Hose Coupling

Manufacturer

Part Number

G20365-2016
Sale Price

$118.81

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

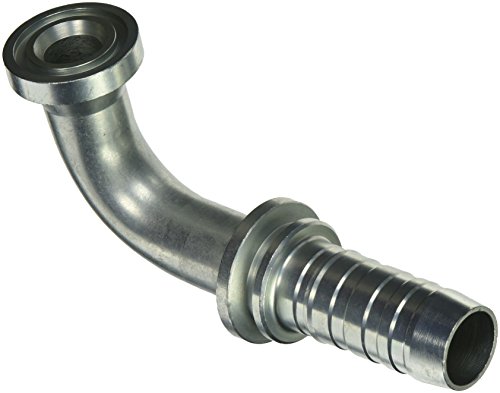

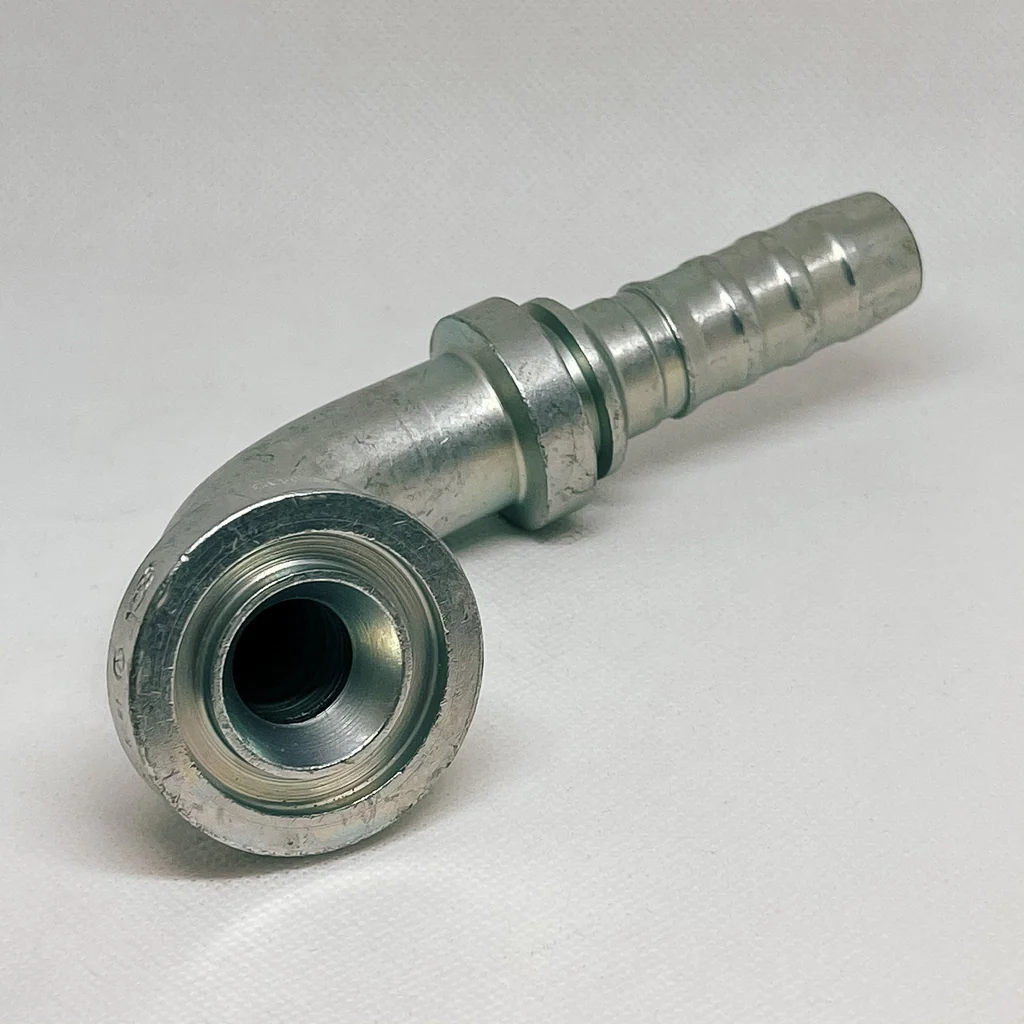

The Gates G20365-2016 (20GS-16FLH90M) is a GlobalSpiral hydraulic hose coupling (hose end fitting) with a Code 62 O-ring flange, heavy series, in a 90° medium-drop elbow. It connects a 1-1/4 in (-20) spiral-wire hose to a 1 in Code 62 flange port. It is built for high-pressure, high-impulse hydraulic applications.

Key Features:

  • GlobalSpiral two-piece, no-skive design, which reduces assembly time, labor, fabrication errors and contamination of the fluid power system
  • Bite-the-wire crimp for improved coupling retention and blow-off prevention
  • One stem fits all spiral-wire hose types, which reduces parts inventory
  • Maximum working pressure of 6,000 psi on all FLH sizes
  • Temperature capability of +250°F
  • Steel construction with TuffCoat plating for corrosion resistance
  • Tested beyond one million impulse cycles
  • Drop dimensions follow ISO Final Draft International Standard 12151-3

Specifications:

  • Gates product code: 20GS-16FLH90M
  • Hose connection: 1-1/4 in (-20 dash size), 31.8 mm hose ID
  • Flange connection: 1 in Code 62 O-ring flange
  • Drop: 2.76 in (70.1 mm)
  • Cut-off factor: 3.5 in (88.9 mm)
  • Flange diameter: 1.88 in (47.8 mm)
  • Flange head thickness: 0.38 in (9.7 mm)
  • Overall length: 6.3 in (160 mm)

The coupling is designed for Gates MegaSys four- and six-spiral wire hydraulic hose. It is crimped onto the hose with a crimper suited to the hose and coupling size, and is suitable for heavy equipment and industrial hydraulic systems.

Products specifications

Coupling Description

GlobalSpiral Code 62 O-Ring Flange Heavy - 90 Bent Tube

Industrial Description

20GS-16FLH90M
