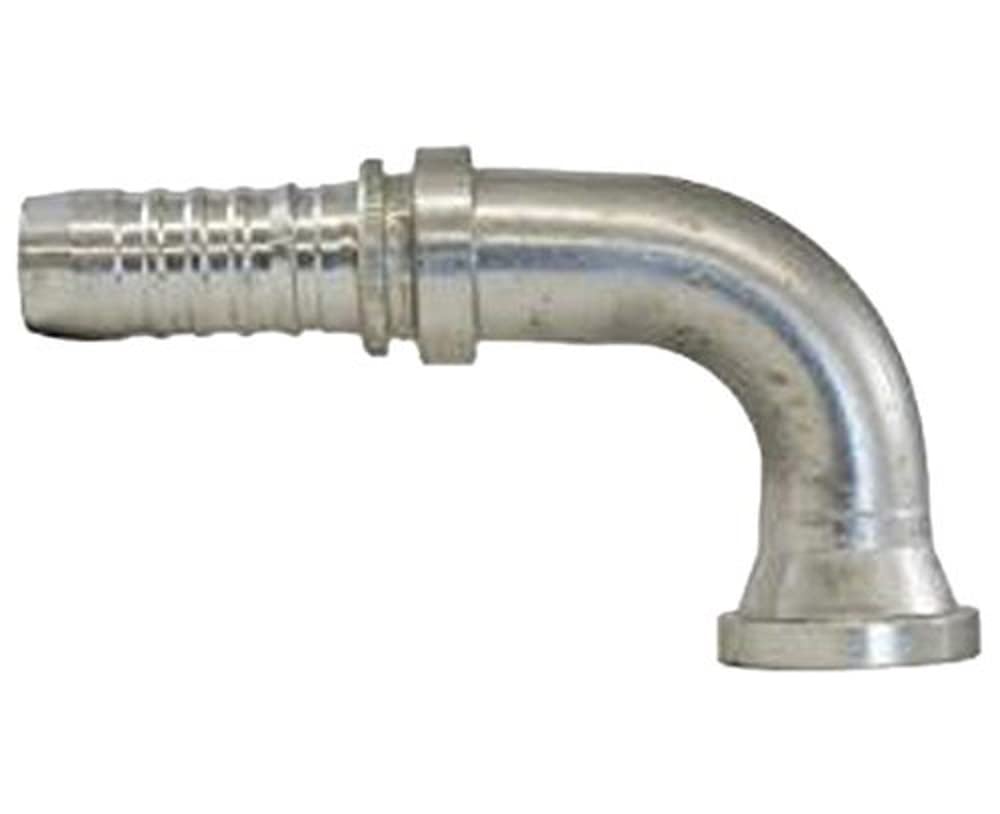

Gates G20365-1616 GlobalSpiral Hydraulic Hose Coupling 1 Inch 90 Degree Code 62 Flange

Part of: Gates GlobalSpiral Hydraulic Hose Coupling

Other options in this family: Gates G20832-1616 Gates G20910-1616 Gates G20365-1212 Gates G20830-0808 Gates G20720-1625

Manufacturer

Picture for manufacturer Gates

Part Number

G20365-1616
14 reviews
Sale Price

$77.77

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Gates G20365-1616 GlobalSpiral hydraulic coupling is a Code 62 O-Ring Flange Heavy design with a 90-degree bent tube configuration, engineered for 1-inch ID (dash size -16) spiral-wire hydraulic hose applications. This high-performance coupling features Gates' innovative two-piece, no-skive design that eliminates the need for hose skiving, significantly reducing assembly time, labor costs, and potential contamination of hydraulic systems.

Key Features:

  • Designed for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications up to 6,000 psi working pressure
  • Compatible with all Gates MegaSys four- and six-spiral wire hoses; can also be crimped on wire-braid hoses when used with 2-wire ferrules
  • Unique "bite-the-wire" crimp design provides superior coupling retention and blow-off prevention
  • Machined from unleaded steel bar stock for maximum strength and durability
  • TuffCoat plating delivers 347% better corrosion resistance than SAE ASTM B117 specifications
  • Tested to industry-leading 1,000,000 impulse cycles at +250°F (+121°C) for extended assembly life
  • Two-piece design reduces parts inventory by up to 30% since only one stem is required for all spiral-wire hose types
  • Code 62 O-Ring Flange Heavy with 90-degree bent tube orientation for tight installation spaces

The GlobalSpiral no-skive coupling system eliminates fabrication errors, reduces odor from skiving operations, and delivers fast, tailor-made hydraulic hose assemblies. Ideal for demanding applications in construction, agriculture, industrial equipment, and mobile hydraulics where reliability and performance are critical.

Products specifications

Industrial Description

16GS-16FLH90M

Coupling Description

GlobalSpiral Code 62 O-Ring Flange Heavy - 90 Bent Tube
