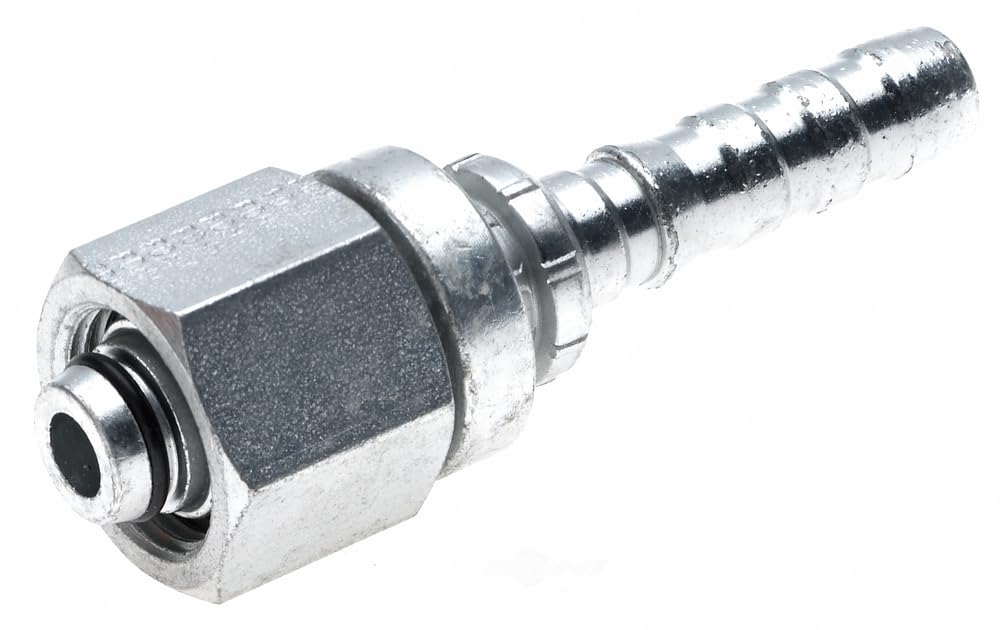

Gates G20720-1625 GlobalSpiral Female DIN 24° Hydraulic Hose Coupling

The Gates G20720-1625 is a Female DIN 24° Cone Swivel - Heavy Series with O-Ring hydraulic hose coupling designed for high-pressure, high-impulse spiral-wire hydraulic hose applications. This GlobalSpiral coupling features an innovative two-piece, no-skive design that eliminates the skiving process, drastically reducing assembly time, labor, fabrication errors, and contamination of fluid power systems.

Key Features:

• 1-inch inside diameter with M36-2.0 thread size
• 4.57-inch overall length with 2.35-inch cutoff dimension
• Unique bite-the-wire crimp design for improved coupling retention and blow-off prevention
• Tested to industry-leading 1,000,000 impulse cycles at +250°F (+121°C) without stress cracks
• Machined from unleaded steel bar stock, handles working pressures up to 6,000 PSI
• TuffCoat plating provides over 5 times better corrosion resistance than SAE ASTMB117 specification
• Two-piece design reduces inventory by 30% since only one stem is required for all spiral-wire hose types
• No-skive design allows for fast, tailor-made assemblies

The Gates GlobalSpiral coupling system offers maximum application coverage with over 80 thread configurations available. The two-piece configuration greatly reduces the chance of assembly error by making it easier to see when the stem is fully and securely inserted into the hose. Also known as part number 16GS-25FDHORX, this coupling is cross-referenced with Weatherhead 43016U-75C and Goodyear 28210-1636.
