Product Details

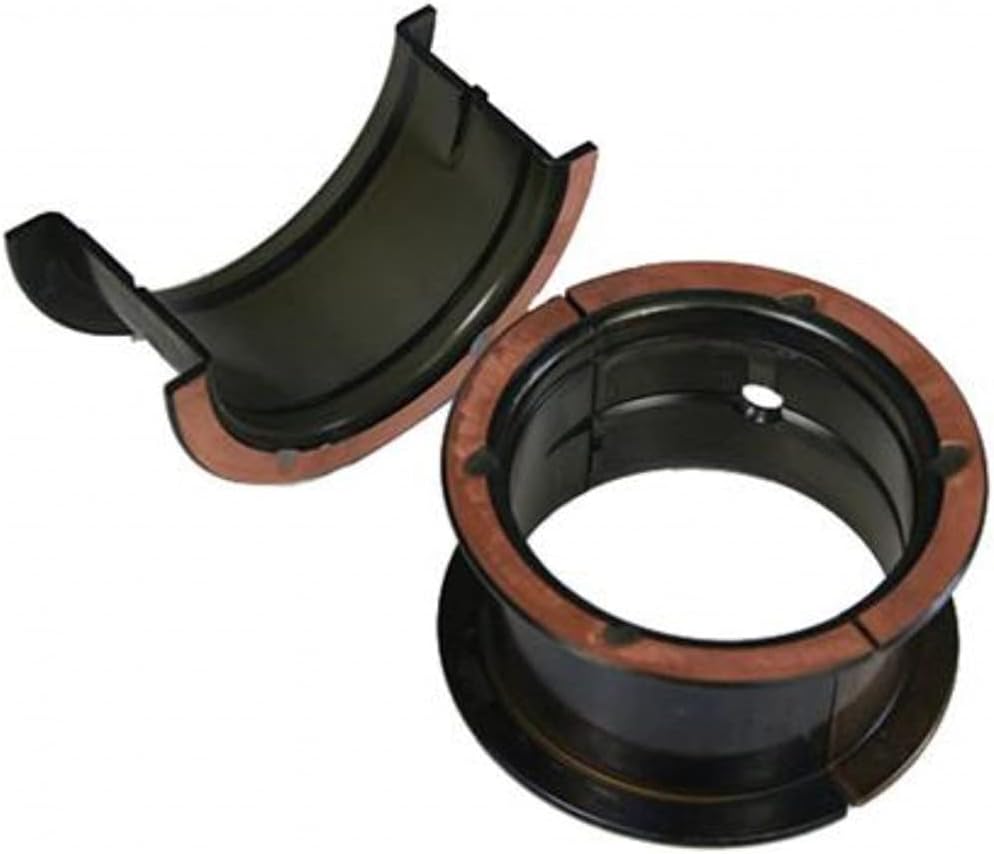

The ACL Bearings 5M8412H-STD Race Series Main Bearing Set is engineered for high-performance and racing applications demanding superior durability and reliability. These tri-metal main bearings feature standard size dimensions and are designed for Toyota 1AZ-FE and 2AZ-FE engines, providing the enhanced bearing capacity and strength required for elevated RPM conditions and increased engine stress.

Race Series Performance Features:

  • High-strength overlay plate with reduced thickness for improved fatigue properties and longevity
  • Hardened steel backing to improve support of bearing lining and assist with retention in housing
  • Increased crush design for superior bearing retention under high-load conditions
  • Flash plating eliminated from bearing backs to maximize heat transfer and improve grip between bearing and housing
  • Increased eccentricity to compensate for bore distortion at high RPM and assist hydrodynamic oil film formation
  • 3/4 grooved design optimizes bearing load carrying surface area and oil flow to connecting rod bearings

Technical Specifications:

  • Bearing Material: F780 tri-metal construction
  • Bearing Type: Upper and lower main bearing set
  • Bearing Size: STD (Standard)
  • Shaft Size Range: 2.1649" - 2.1654" (54.988mm - 55mm)
  • Tunnel Size Range: 2.3228" - 2.3235" (59mm - 59.016mm)
  • Vertical Oil Clearance Range: 0.0003" - 0.002" (0.008mm - 0.052mm)
  • Wall Thickness at Crown: 0.0786" (1.996mm)
  • Overall Length: 0.6693" (17mm)

ACL Race Series bearings represent over 50 years of engineering and metallurgical expertise, trusted by engine builders and racers worldwide. These bearings deliver improvements in material composition, dynamic thickness control, heat conduction, oil groove design, and oil distribution that make ACL a leading bearing manufacturer for performance applications.

Products specifications

Max Overall Length

0.6693" (17.00mm)

Max Std Shaft Size

2.1654" (55.000mm)

Max Std Tunnel Size

2.3235" (59.016mm)

Max Wall at Crown

0.0786" (1.996mm)

Min Std Shaft Size

2.1649" (54.988mm)

Min Std Tunnel Size

2.3228" (59.000mm)

Oil Clearance

Standard

Size

Standard
