Product Details

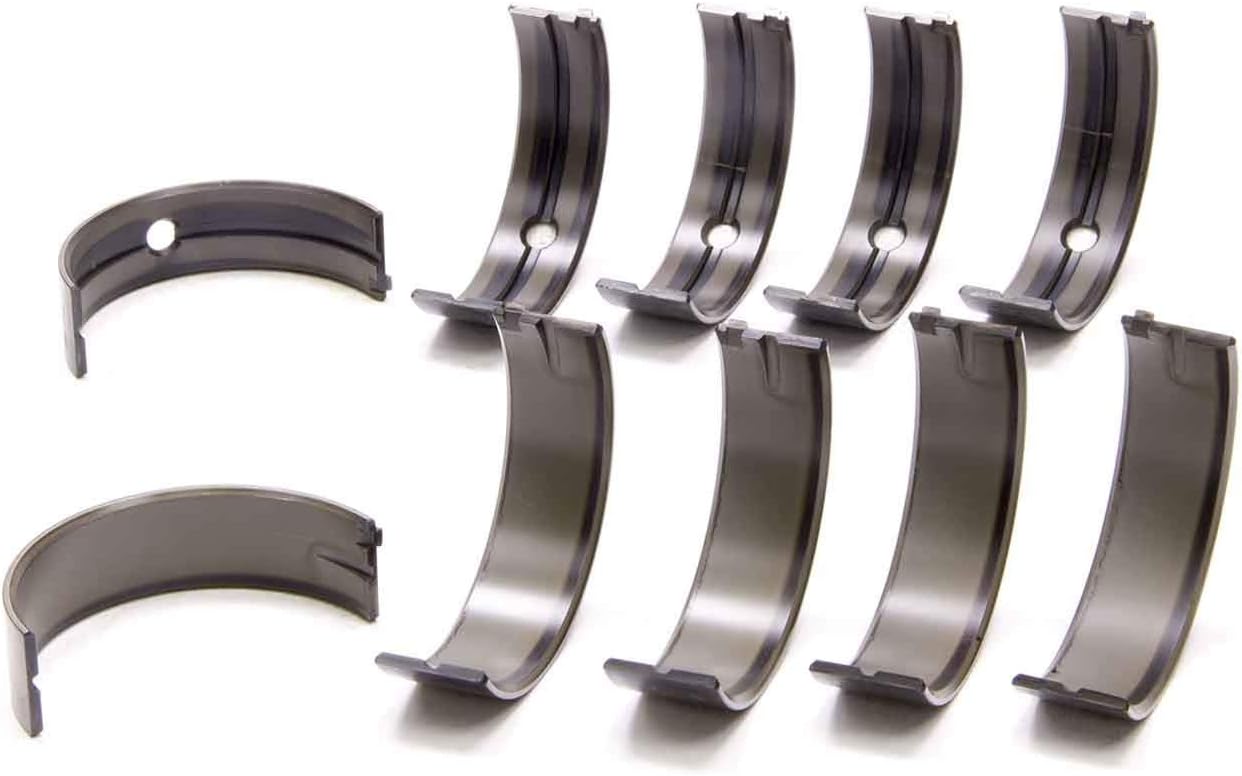

The ACL Bearings 5M2220HX-STD is a high-performance Race Series main bearing set engineered for Mopar Gen III Hemi engines, including 5.7L (2003-2008) and 6.1L (2005-2010) applications. This H-Series bearing set features extra oil clearance (HX designation) for enhanced lubrication in high-performance and racing applications.

Construction and Materials:

  • Tri-metal copper alloy construction with steel backing for maximum strength and seizure resistance
  • Lead/tin/copper overlay with reduced thickness for improved fatigue properties
  • Hardened steel backs to improve bearing lining support and retention
  • No flash plating on backing for improved heat transfer and housing grip

Performance Features:

  • Standard size with extra oil clearance for high-RPM operation
  • 3/4 groove design to optimize load carrying surface area and oil flow
  • Increased eccentricity to compensate for bore distortion at high RPM
  • Enlarged ID chamfers to accommodate performance crankshaft fillet radii
  • Increased crush for improved bearing retention
  • Manufactured to exacting micron-level tolerances for consistent clearances

Specifications:

  • Bearing width: 0.831 inches
  • Standard housing diameter: 2.7517-2.7522 inches
  • Standard shaft diameter: 2.5589-2.5592 inches
  • Wall thickness: 0.0958 inches
  • Set includes 5 main bearings

ACL Race Series bearings are proven in championship-winning engines from sport compact to NASCAR competition, delivering the durability and precision required for extreme racing conditions.

Products specifications

Max Overall Length

0.850" (21.60mm)

Max Std Shaft Size

2.5592" (65.004mm)

Max Std Tunnel Size

2.7522" (69.906mm)

Max Wall at Crown

0.0955" (2.426mm)

Min Std Shaft Size

2.5589" (64.996mm)

Min Std Tunnel Size

2.7517" (69.893mm)

Oil Clearance

+ 0.001" Extra

Size

Standard
