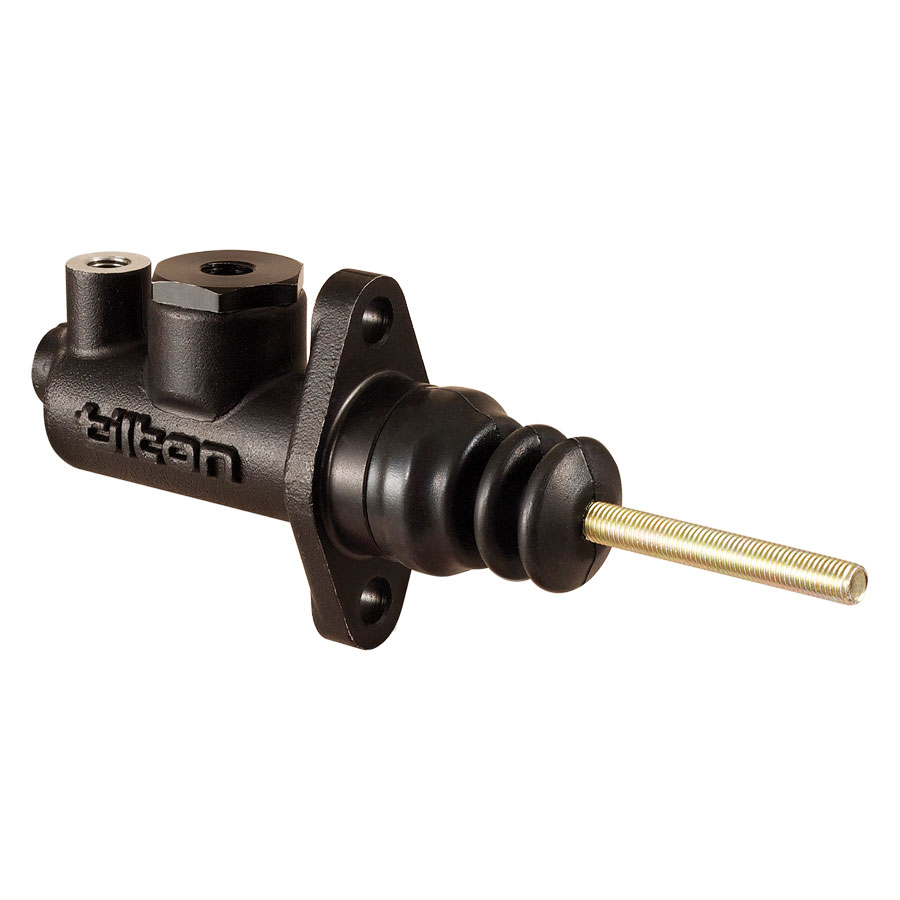

Tilton Engineering 76-750 Compact Master Cylinder Bore - 3/4

The Tilton 76-Series master cylinder incorporates advanced features, including a dual outlet port design with a 0.75-inch bore and 1.100-inch stroke for precise brake or clutch control in racing applications. Constructed from lightweight aluminum with a black anodized coating to prevent wear and corrosion, this compact master cylinder is engineered for performance.

Key Features:

• Addition of a top AN-3 outlet port along with the original rear outlet port for flexible plumbing options
• Top outlet port is compatible with both AN-3 and banjo fittings
• Either port can be used to connect a brake pressure sensor, bleed port, or brake light switch
• Features an AN4 (7/16"-20) inlet port adapter for remote-mounted reservoirs
• Both outlet ports work with standard fittings without modification or adapters
• Close tolerance cut-off ports shorten pedal dead stroke for quicker activation and improved feel
• Direct replacement for master cylinders with 2.25-inch spaced, 2-bolt mounting pattern
• Weighs 0.69 lbs (varies by bore size)

The lighter, more compact body design provides additional clearance, making this master cylinder ideal for racing applications where space is limited. Suitable for both brake and clutch systems with remote reservoir configurations.
