ATS Diesel 3099984308 Stage Transmission Package GM - LCT1000 4 2006-07 8.1L 2WD

The ATS Diesel 3099984308 LCT1000 Stage 4 Transmission Package is specifically engineered for 2006-2007 GM 2500/3500 trucks equipped with the 8.1L gas engine and 2-wheel drive configuration. This comprehensive performance transmission package addresses the factory weaknesses and provides significantly enhanced torque capacity, durability, and reliability for towing, daily driving, and performance applications.

Complete Package Includes:

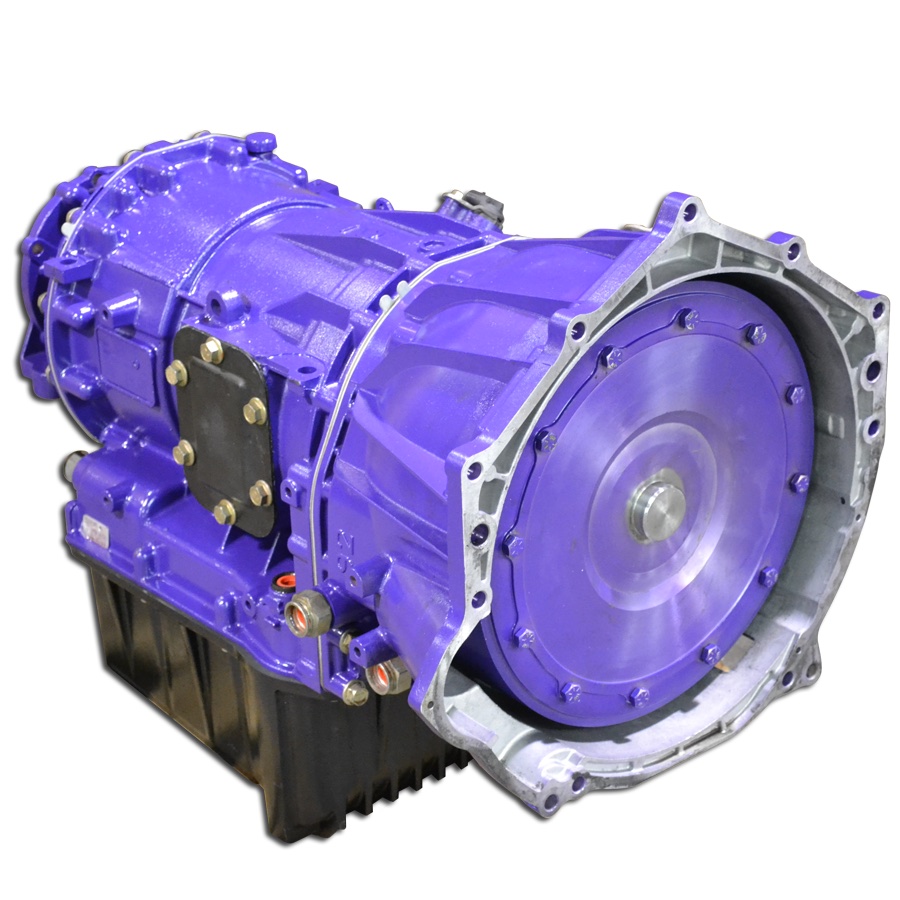

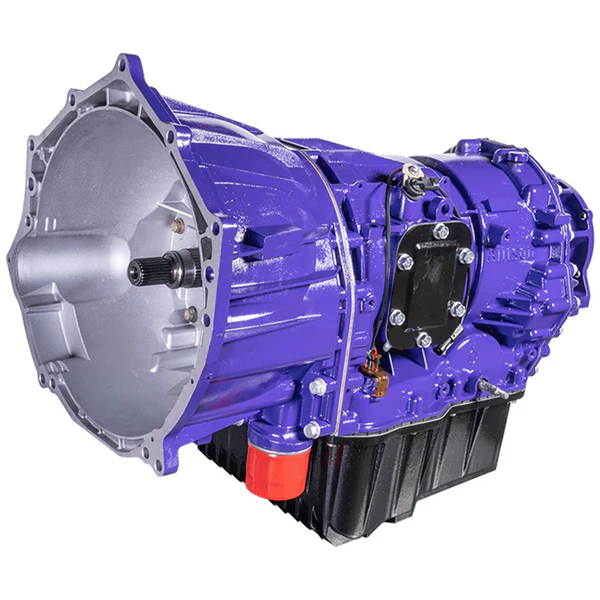

• ATS Built Allison LCT1000 6-Speed Automatic Transmission with proprietary modifications
• ATS Five Star billet torque converter featuring five lock-up clutches and billet 12-bolt cover
• ATS Extra Deep Transmission Pan with 5-quart capacity over stock and finned design for improved cooling
• ATS Co-Pilot Electronic Transmission Controller for optimized lockup control
• ATS Billet Flexplate for high horsepower and heavy towing applications
• ATS Billet Input Shaft for increased strength and reliability

Key Features and Benefits:

• Stage 4 power rating designed for trucks producing up to 850 horsepower
• 200% increase in torque capacity over stock transmission through enhanced clutch packs and increased line pressure
• Custom manufactured clutches using proprietary friction material bonded with heat and water-resistant bonding agent
• Modified valve body and upgraded pump kit increasing line pressure from stock 90 psi to 250 psi
• CNC laser-cut clutch steels for precision and optimal performance
• All high-stress areas of the case reinforced with sealed external surfaces
• Co-Pilot controller allows torque converter lockup based on vehicle speed in any forward gear
• Improved fuel economy, lower transmission temperatures, and better power transfer
• Synchronizes with exhaust brake systems for enhanced braking force

The Stage 4 package is ideal for trucks with modified power levels, heavy towing requirements, and performance driving. ATS Diesel has invested extensive research and development into the Allison LCT1000 platform, with thousands of testing hours across various applications from stock daily drivers to competition vehicles. Each transmission is dyno tested under load to ensure reliable functionality before shipment.

Application: 2006-2007 GM 2500/3500 Light Duty trucks with 8.1L gas engine and 2WD drivetrain. This is a core exchange item with an $1,800 core charge that applies at time of purchase.

Warranty: ATS Transmission packages carry a multi-year warranty, with coverage terms varying by package stage. Refer to ATS warranty documentation for specific terms and conditions.
