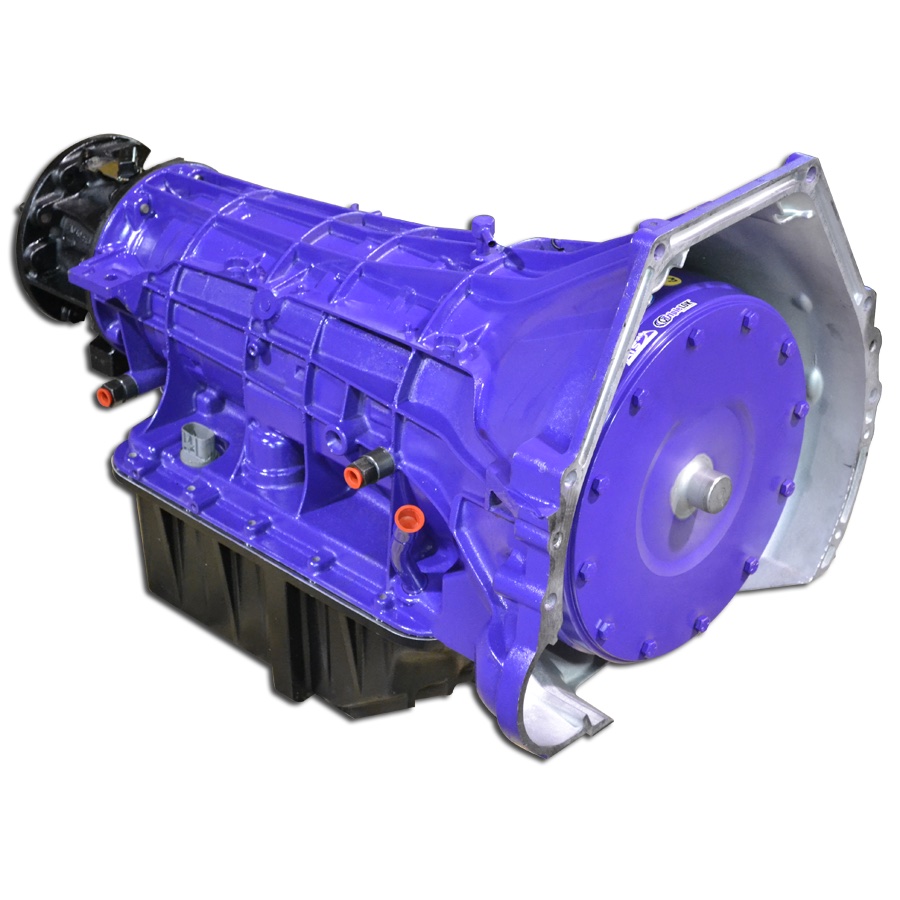

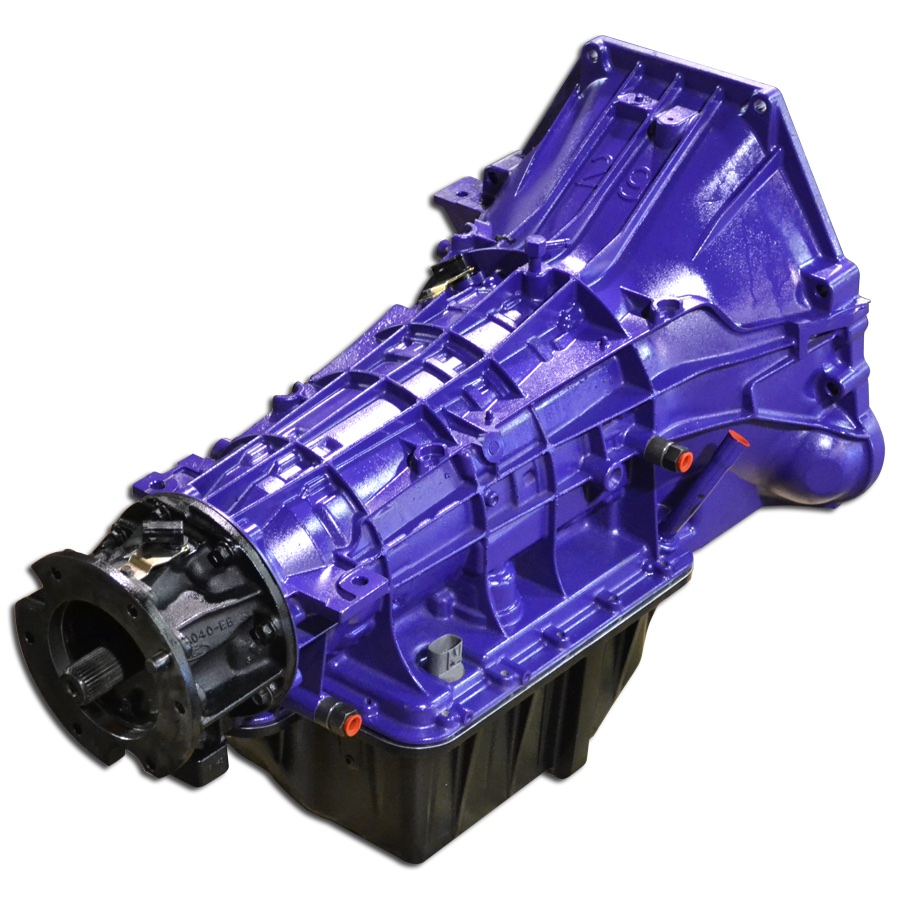

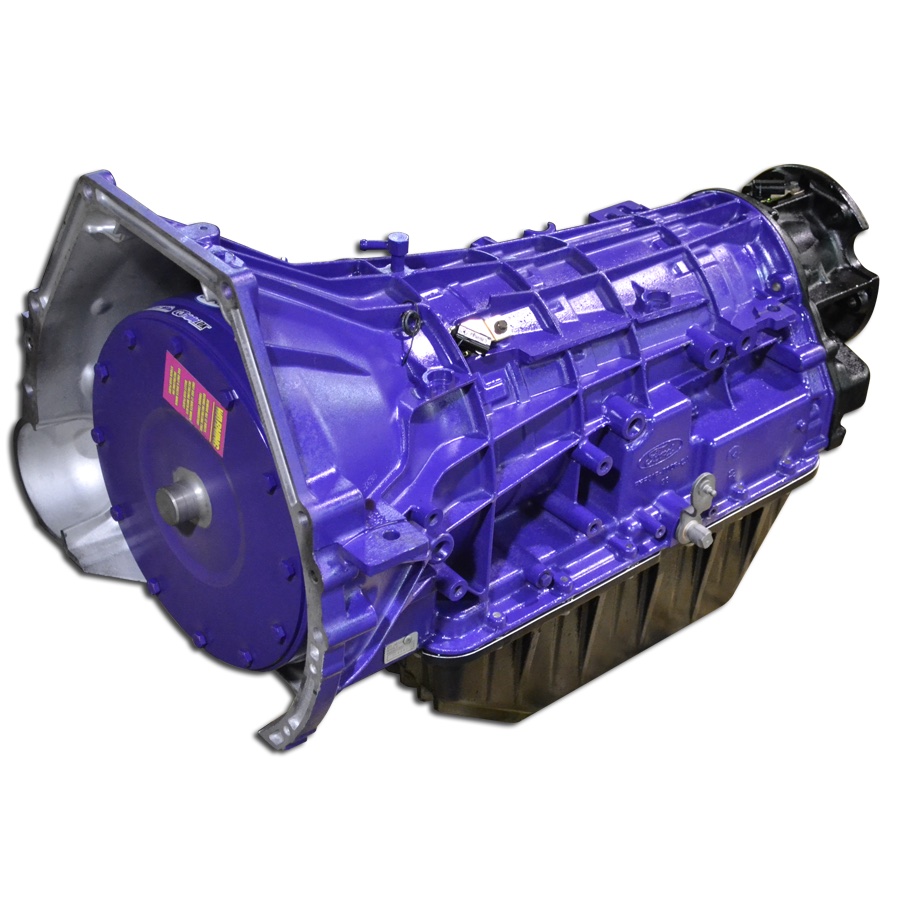

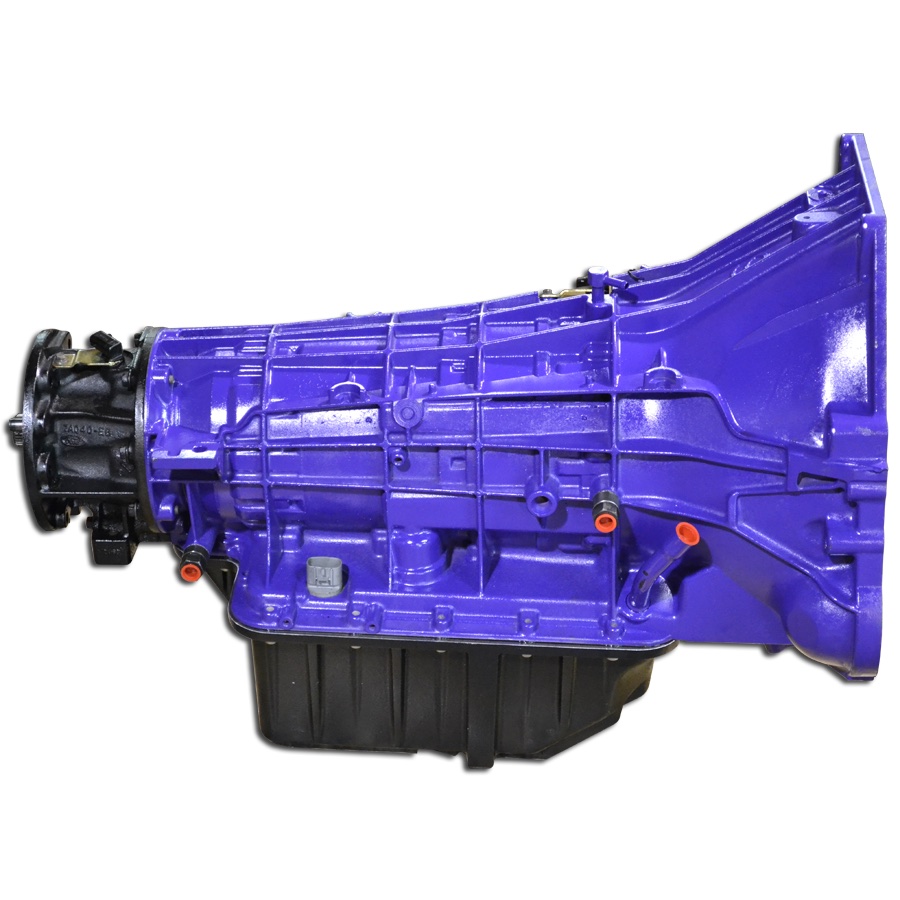

ATS Diesel 3099643224 Stage Automatic Transmission Package - 4R100 6 4WD

(Ford F-250 Super Duty 1999-2003, F-350 Super Duty 1999-2003, Excursion 2000-03, F-450 Super Duty 1999-2003, F-550 Super Duty 1999-2003 + 7 more models)

Manufacturer

Part Number

3099643224
Black Friday Price

$10,366.98

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The factory Ford 4R100 suffers from weak points in the converter, clutch pack assemblies, valve body and line pressure limitations that arise when the motor's power is increased or in towing applications. ATS addressed these concerns by re-designing the torque converter, transmission pump, valve body and clutch packs. This package is designed as a one-and-done transmission, regardless of power level or use.

Complete Stage 6 Package Includes:

  • ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, billet stator and a furnace-brazed impeller
  • Billet 300M input shaft
  • Co-Pilot Transmission Lock-up Controller
  • Billet flex plate
  • Billet intermediate and output shaft

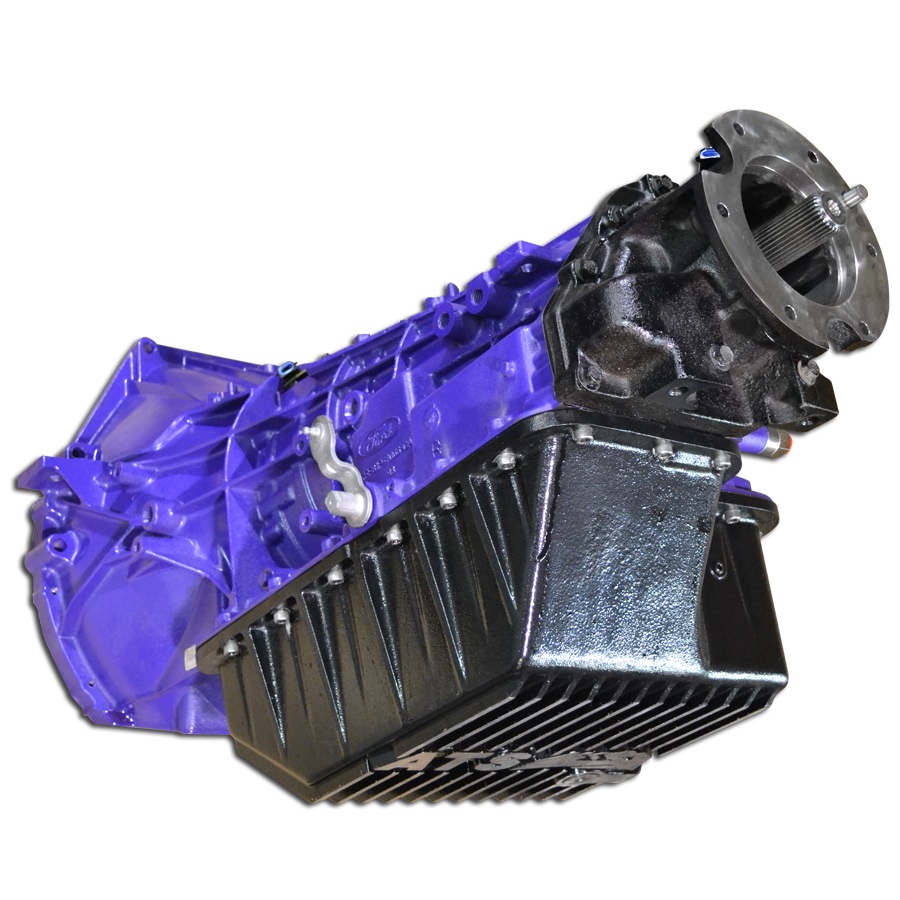

  • ATS Deep Transmission Pan that adds 5 quarts of fluid, featuring a finned design, magnetic drain plug and is tapped for a temperature probe
  • Fully remanufactured ATS 4R100 transmission with high-performance valve body, high-volume pump, heavy-duty gear train, and extreme-duty clutch packs

Performance Features:

  • Horsepower Rating: 1000 HP
  • The ATS input shaft is designed to withstand extreme torque, converter lock-up sooner than stock, and competition and towing use
  • The Co-Pilot controller allows the user to lock the converter based on vehicle speed, resulting in more power to the ground at a lower speed, thus improving acceleration, lowering transmission temperatures and helping fuel economy
  • The Co-Pilot will also synchronize torque converter lock-up with an exhaust brake, for added braking force
  • By increasing the line pressure, clutch pack surface area and modifying the valve body, the 4R100 becomes a consistent, responsive and dependable transmission

The ATS Stage 6 4R100 is designed for trucks that see daily driving and extreme towing duties, aggressive tuning, competition use and a modified turbo and injectors. ATS transmissions are backed by a 5 year / 500,000 mile warranty, regardless of power level or use.

Note: This transmission is a complete remanufactured unit. A separate core charge applies and will be refunded upon return of your rebuildable core transmission.

Products specifications

Fits

Ford F-250 Super Duty 1999-2003, F-350 Super Duty 1999-2003, Excursion 2000-03, F-450 Super Duty 1999-2003, F-550 Super Duty 1999-2003, E-350 Econoline 1999-2003, E-450 Super Duty 2003, E-450 Econoline Super Duty 2000-02 + 4 more models

UNIVERSAL

No

Country of Origin

USA

Sold As

Kit

Prop 65

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Drive

4WD

Application

Competition

Warranty

3-Year Limited Warranty

Harmonized Tariff Code

8708.40.hh

NAFTA

B
