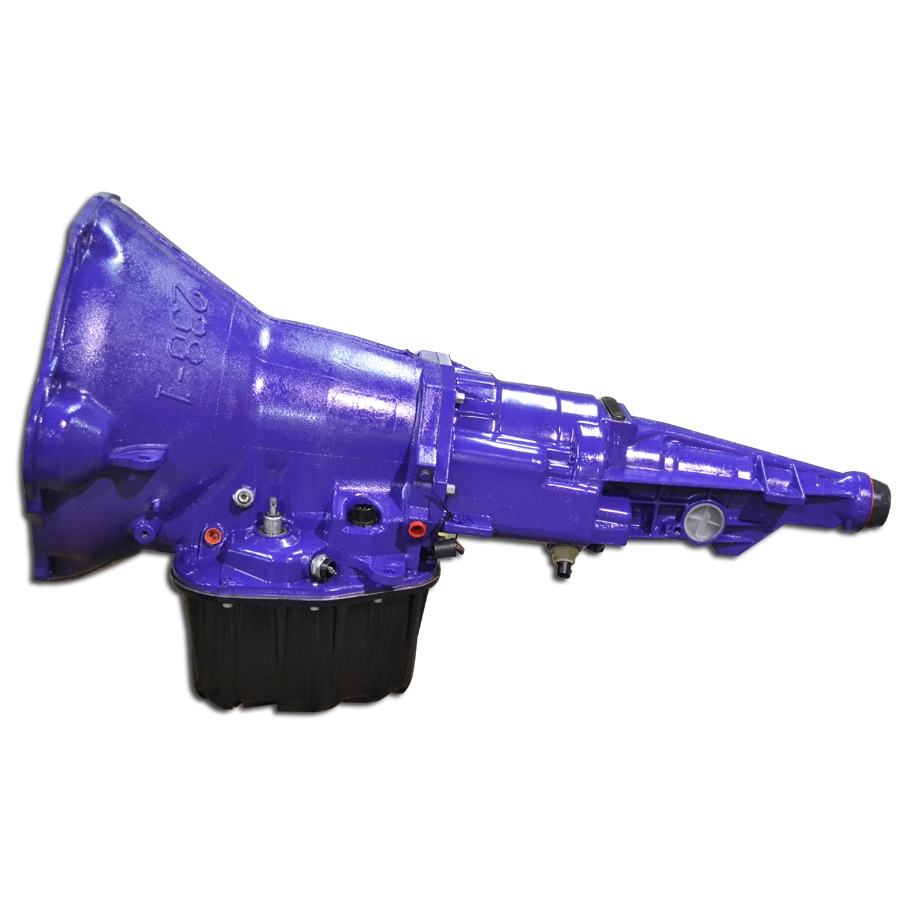

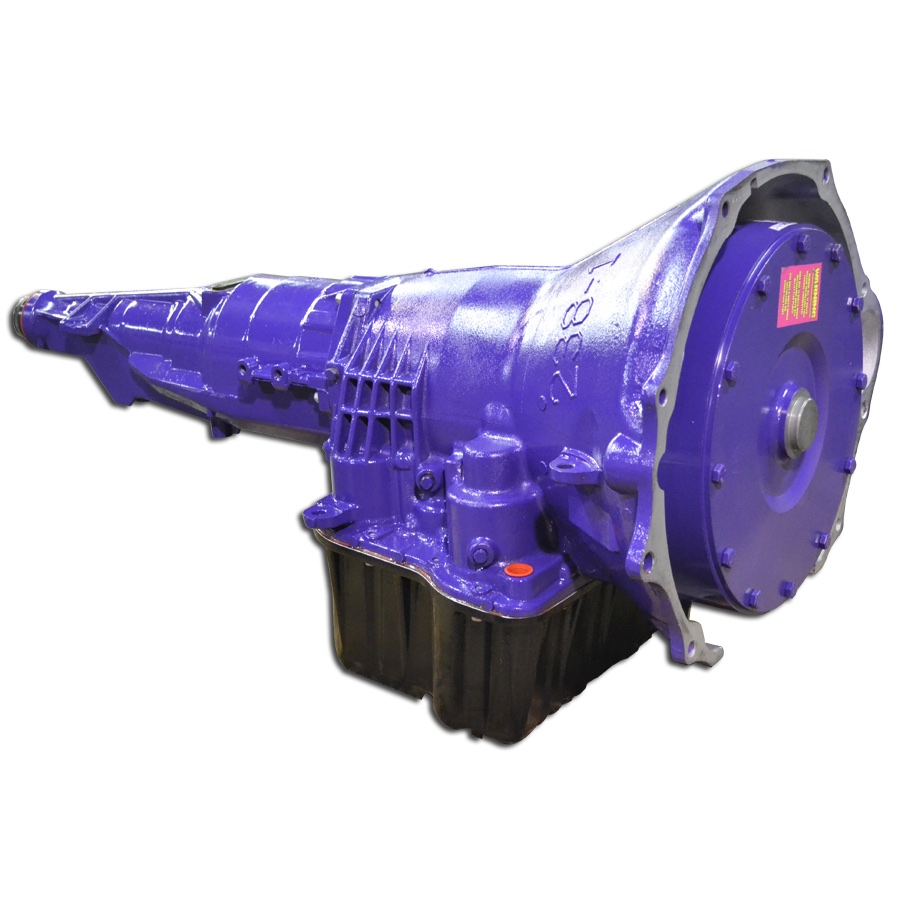

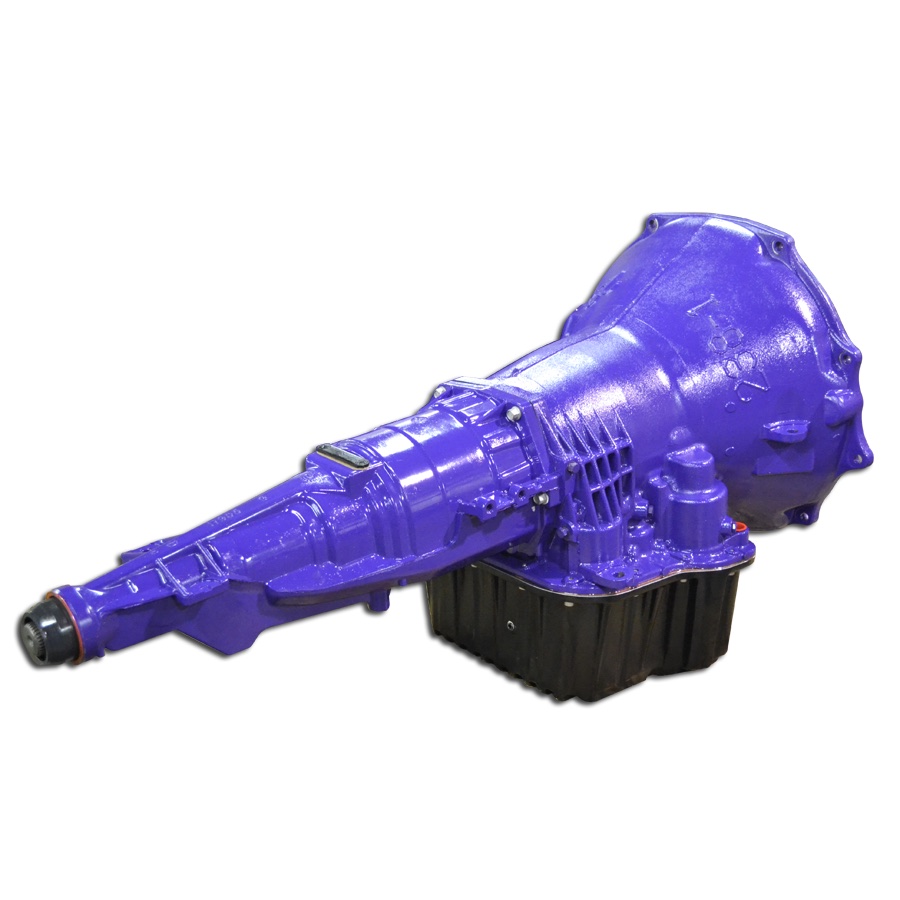

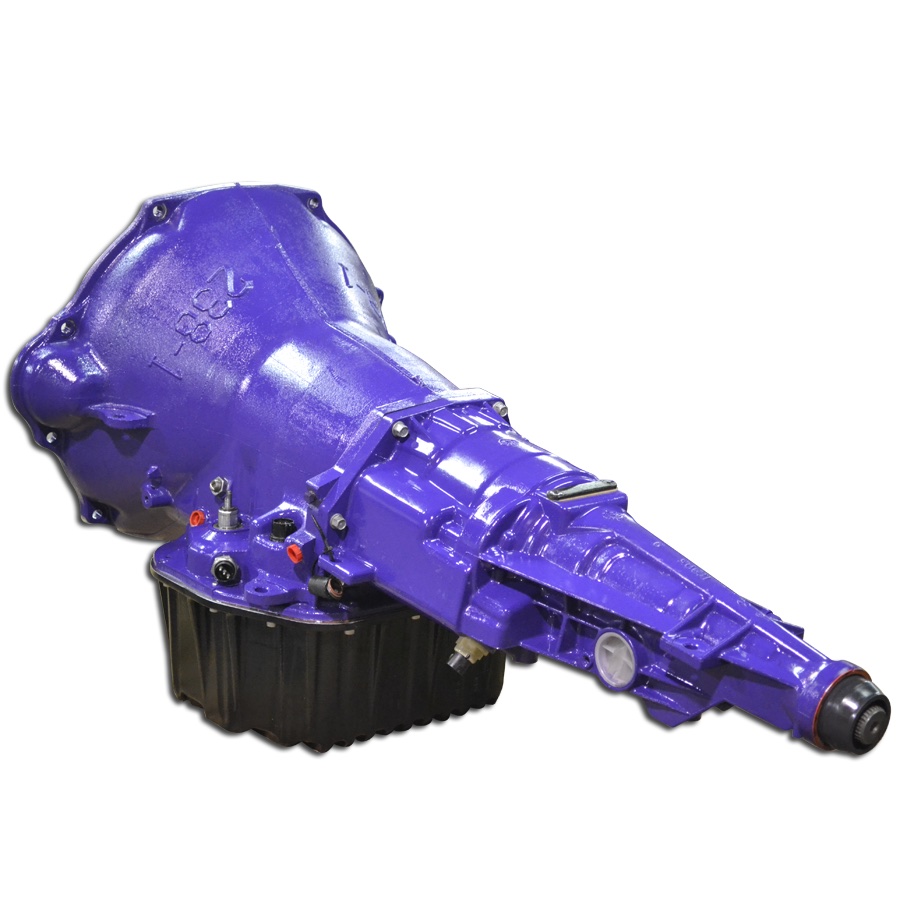

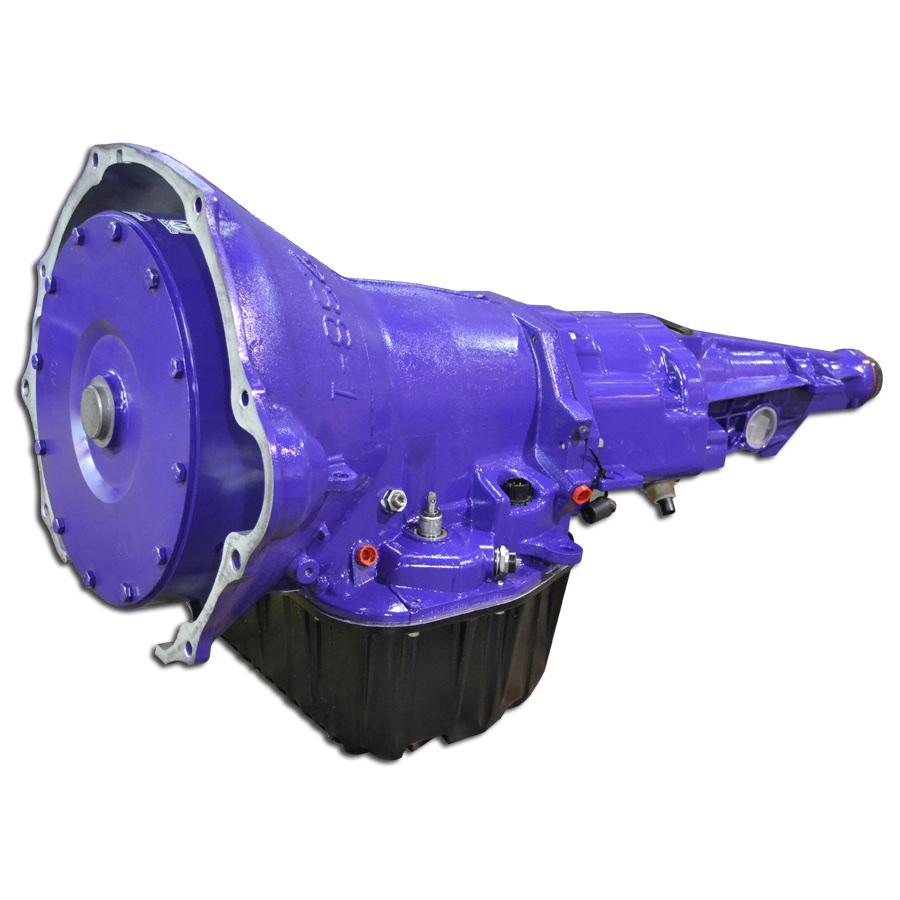

ATS Diesel 3099522188 Stage Transmission Package Dodge Ram - 5 47RE 1996-Early 1998 2WD

The ATS Diesel Stage 5 47RE Transmission Package is a comprehensive high-performance automatic transmission solution designed specifically for 1996-Early 1998 Dodge Ram 2WD trucks equipped with the 12-valve 5.9L Cummins diesel engine. This rebuilt transmission addresses the weaknesses of the factory 47RE, which was the first partially electronic transmission offered in these Dodge diesels.

Stage 5 Performance Features:

• ATS Co-Pilot Transmission Controller prevents slip under high horsepower/high torque situations such as drag racing, sled pulling, or low-speed trailer towing, with adjustable shift firmness and becomes crucial at 600+ hp at the tires
• Billet Input Shaft, Billet Output Shaft (for 2WD models), and Billet Intermediate Shaft
• Billet P2 Carrier, C2 Hub, and P1 Sungear on 2WD models
• Patented Five-Star torque converter with billet 12-bolt cover, five square tab lock-up clutches, and billet stator designed for heavy loads and brute power
• Modified transmission pump that progressively raises line pressure above factory settings with high-performance clutch packs and precisely machined pressure plates adding additional forward and direct clutches
• Modified valve body with Teflon sleeve for precise throttle valve control, capable of locking the torque converter in any forward gear and circulating fluid in park/reverse/neutral

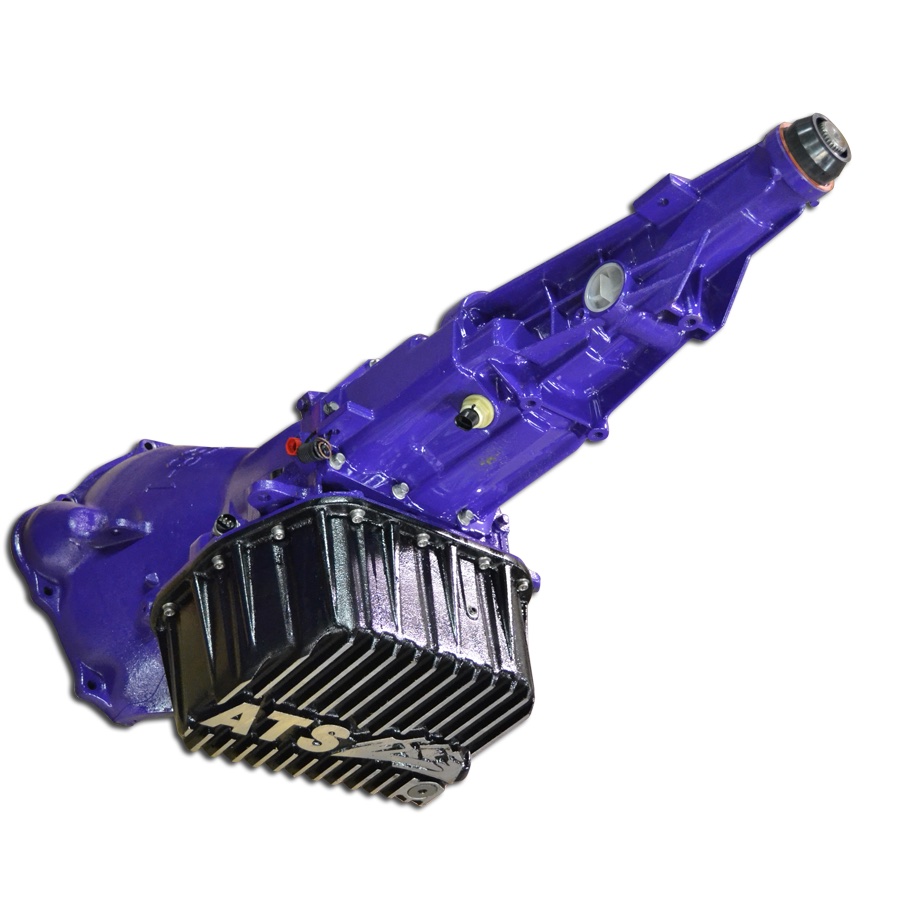

• ATS Deep Pan with finned design adding five quarts of additional fluid capacity for improved cooling

By increasing the capability of the torque converter, clutch surface area, and line pressure, the transmission can hold 200% more torque than stock, making it strong enough to handle aftermarket fueling, turbo(s), and tuning, yet still smooth enough to tow and daily drive with. Every ATS transmission is dyno tested under load behind a diesel engine and backed by an industry-leading 5-year, 500,000 mile warranty.

Note: This is a remanufactured transmission package. A separate core charge applies and the customer's original transmission must be returned.
