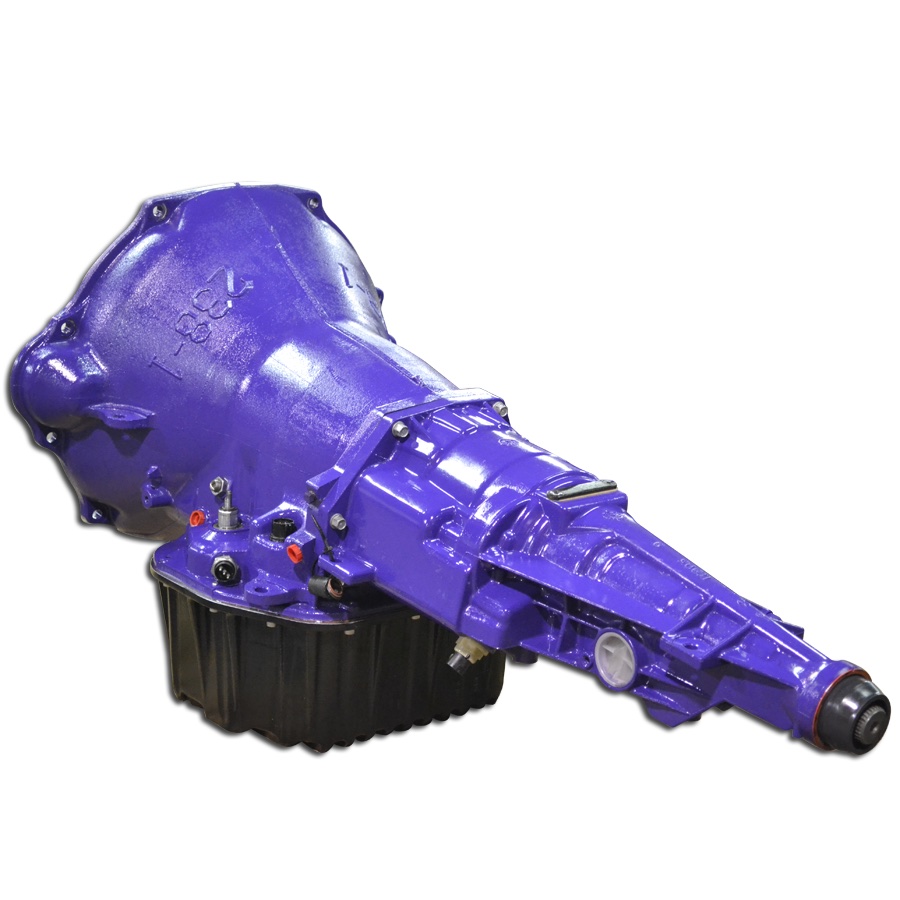

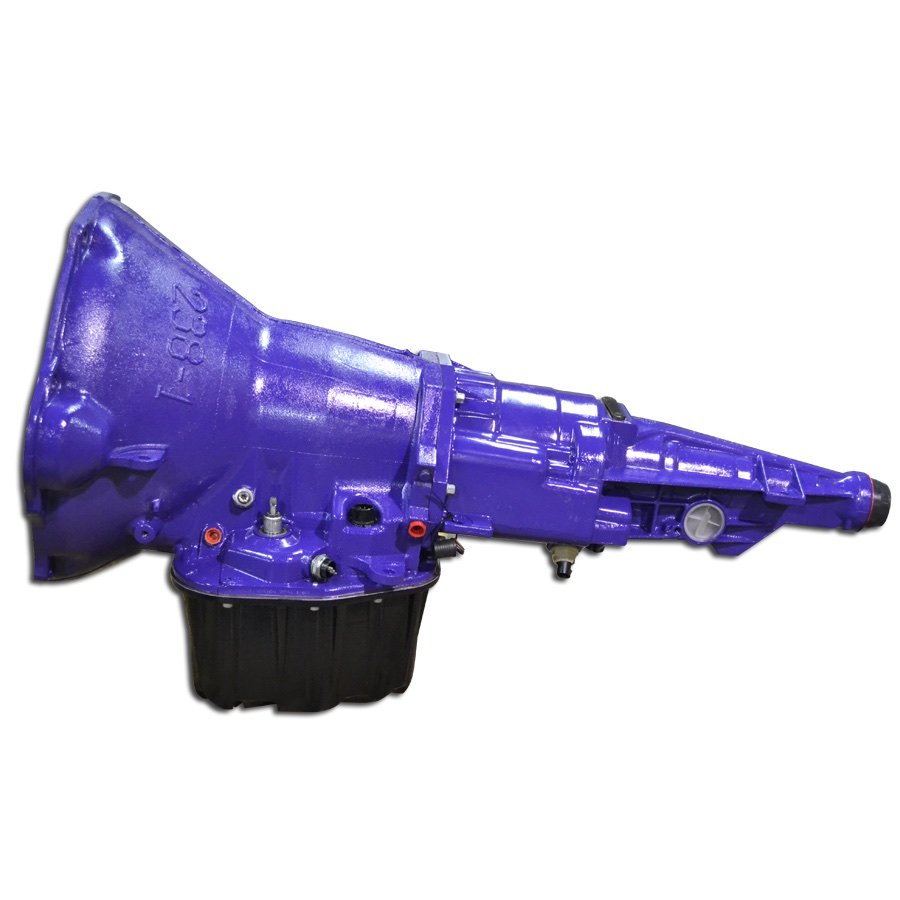

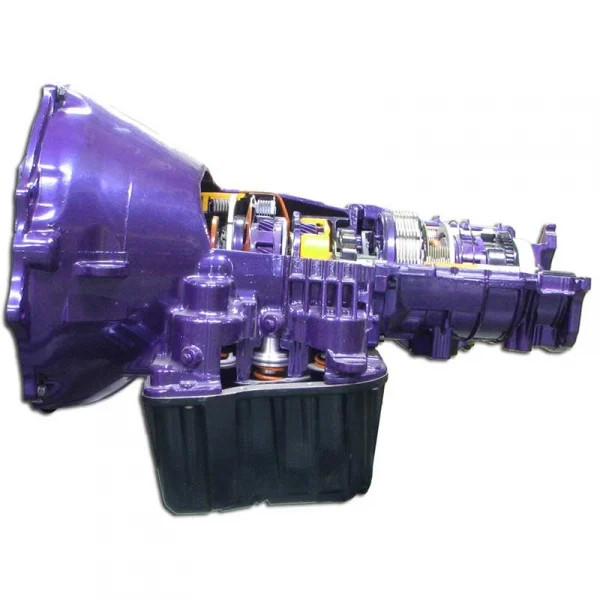

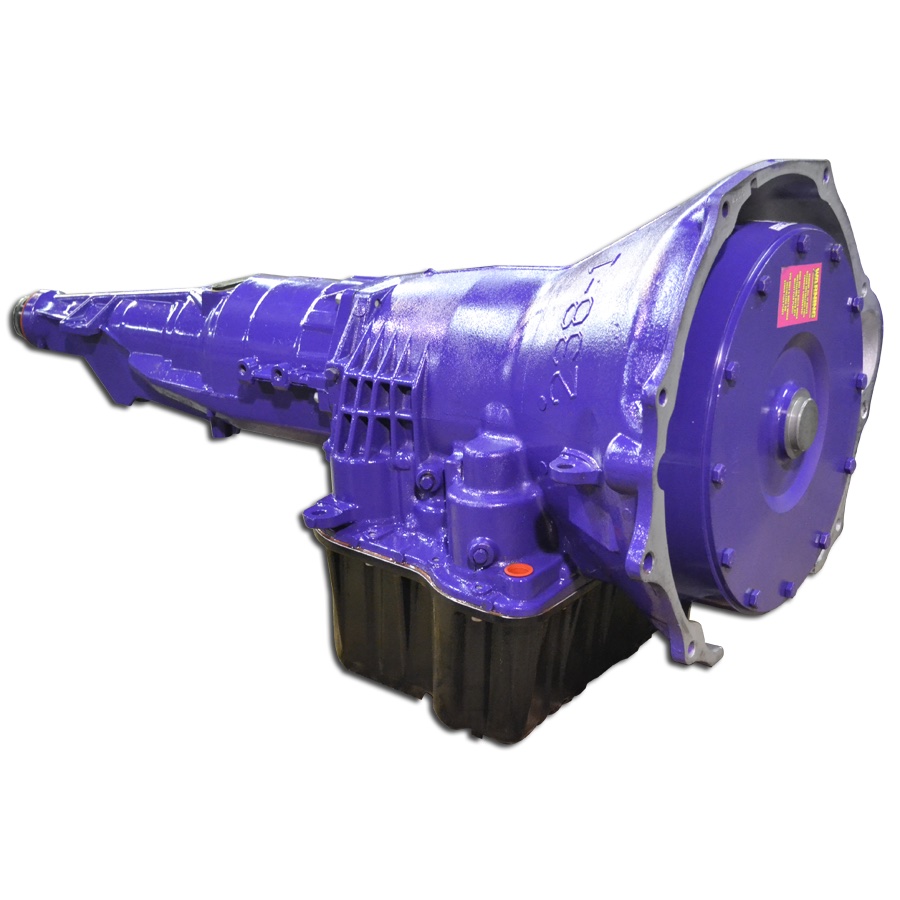

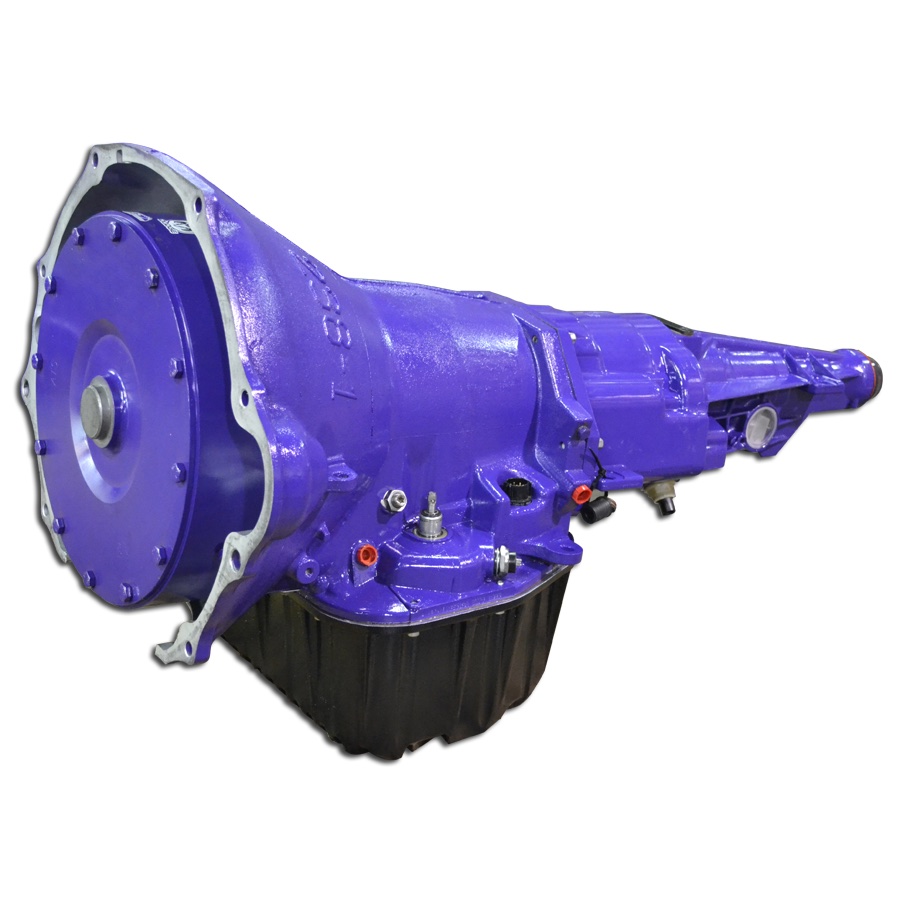

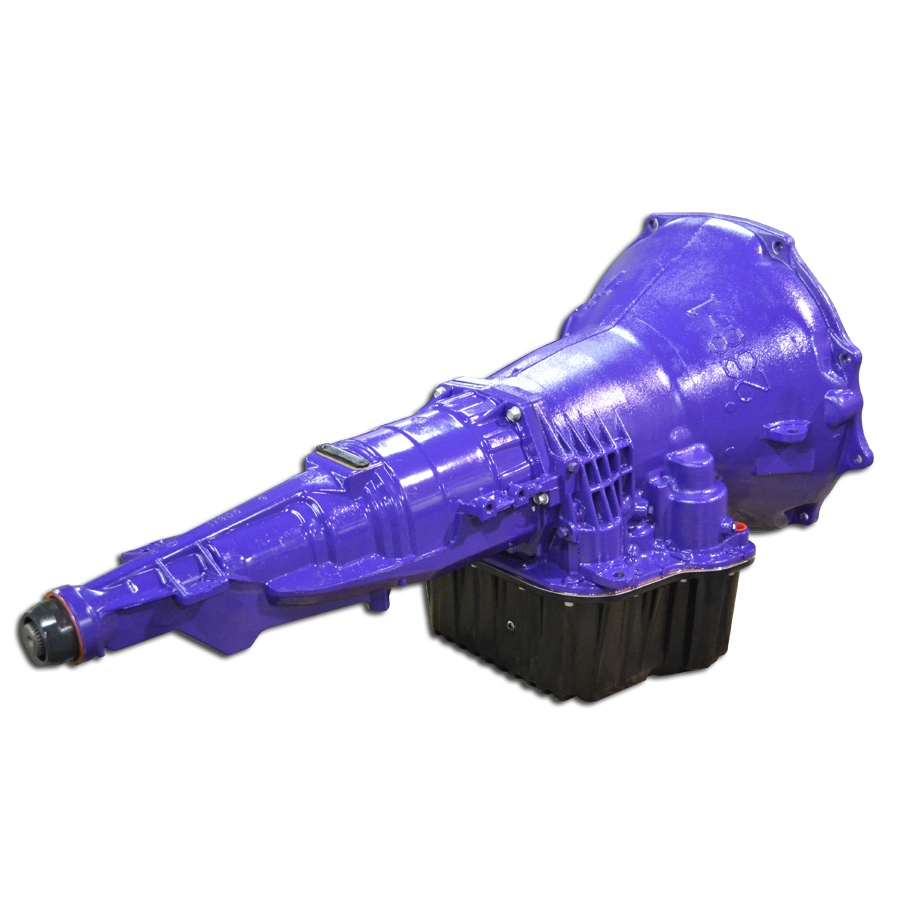

ATS Diesel 3099522164 Stage 5 Remanufactured 47RH Transmission Package 1994-1995 Dodge Ram 2WD 5.9L Cummins

The ATS Diesel Stage 5 Remanufactured 47RH Transmission Package is a complete high-performance automatic transmission solution designed specifically for 1994-1995 Dodge Ram 2WD trucks equipped with the 12-valve 5.9L Cummins diesel engine. This comprehensive package addresses the inherent weaknesses of the factory 47RH transmission, delivering the strength and reliability needed for heavy towing, increased power applications, and extreme duty cycles.

Complete Stage 5 Package Includes:

• ATS Five-Star Torque Converter featuring billet 12-bolt cover, five square-tab lock-up clutches, billet stator, and furnace-brazed impeller
• Modified transmission pump for progressively increased line pressure above factory settings
• High-performance clutch packs with additional forward and direct clutches for greater surface area
• Modified valve body with Teflon sleeve for precise throttle valve control, eliminating common sticking issues

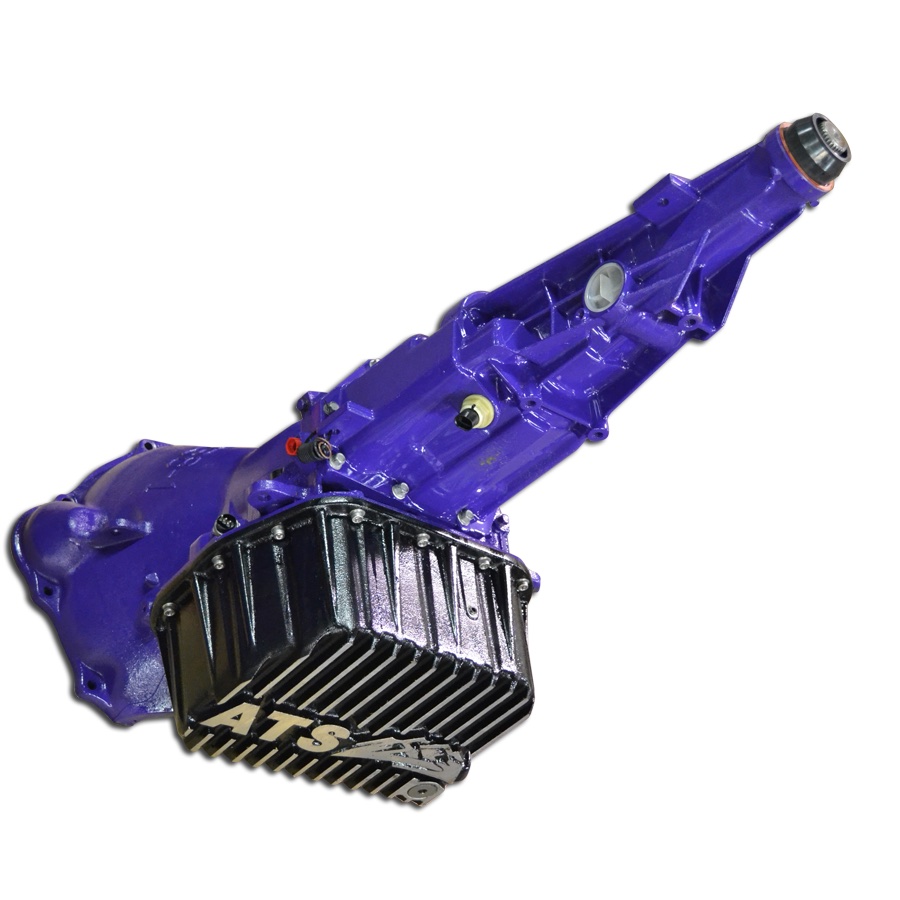

• ATS Deep Transmission Pan with finned design adding five quarts of fluid over stock for improved cooling
• Billet 300M input shaft designed for extreme torque and early converter lock-up
• Billet intermediate shaft to absorb and transfer extreme power through the transmission
• Billet flex plate for reliable power transfer at high horsepower levels
• Co-Pilot Transmission Lock-Up Controller for speed-based converter lock-up control

Performance Benefits:

• Handles modified power levels, heavy towing, and competition use
• Eliminates common 47RH failure points including weak input shafts and sticking throttle valves
• Improved shift quality and transmission response under load
• Enhanced cooling capacity reduces operating temperatures
• Increased fuel economy through efficient torque converter design and user-controlled lock-up

This is a remanufactured transmission requiring a core exchange. A separate core charge of $1,600 applies and will be refunded upon return of your rebuildable core transmission. All ATS transmission packages are backed by an industry-leading 5-year/500,000-mile warranty, providing unmatched peace of mind for your investment.
