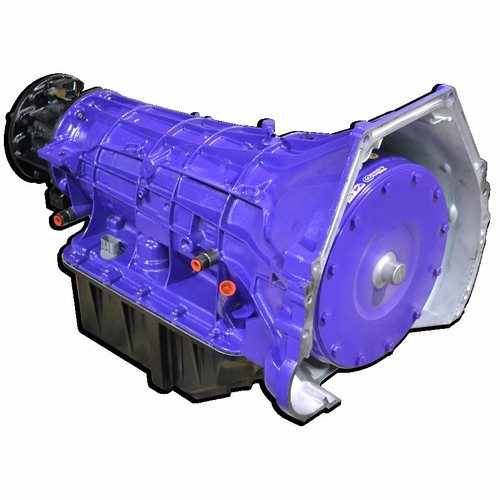

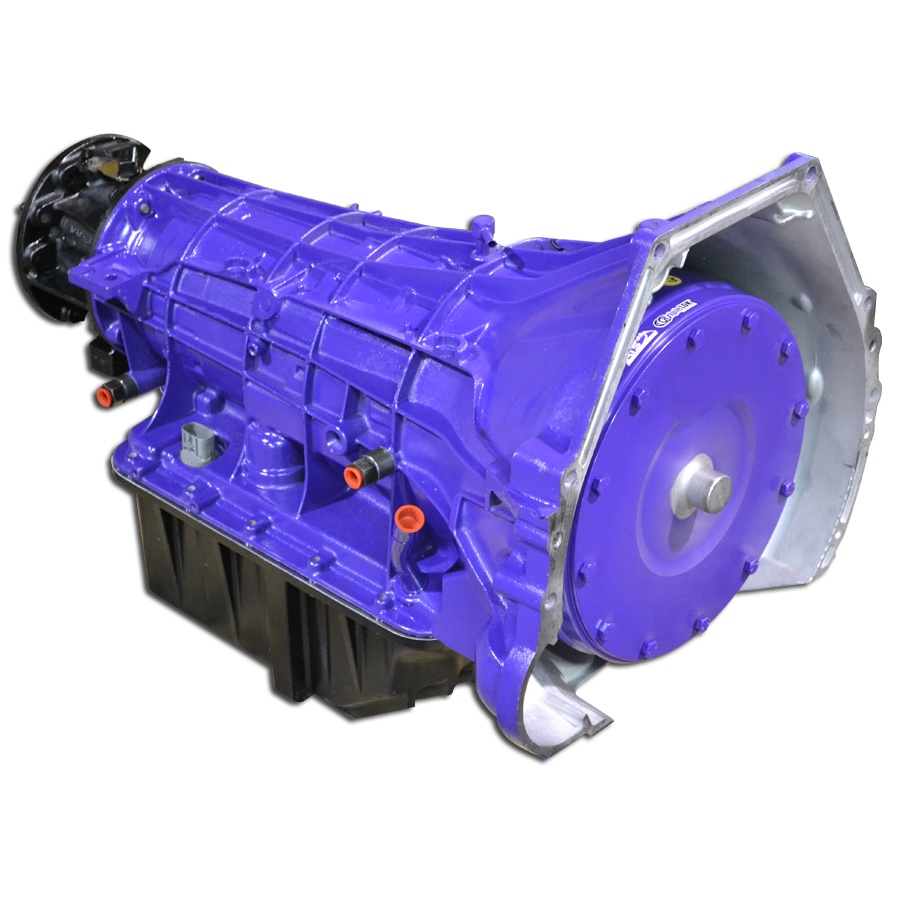

ATS Diesel 3099443140 Stage Transmission Package - E4OD 4 4WD

The ATS Diesel E4OD Stage 4 Transmission Package is a fully remanufactured performance transmission designed for Ford diesel trucks requiring maximum durability under demanding conditions. Rated for up to 700 horsepower, this package is engineered for trucks used in light/moderate/heavy towing, greater-than-stock power levels and racing/street performance.

Stage 4 Package Includes:

• ATS Five Star Torque Converter featuring a billet cover and five lock-up clutches, available in low or high stall configurations
• Billet input shaft made of 300M material for increased reliability when towing heavy loads or under modified power levels
• Co-Pilot lock-up controller that allows users to base lock-up on vehicle speed in any forward gear
• Billet flex plate designed for high horsepower/torque trucks and heavy towing applications
• High performance overdrive, intermediate and forward clutch packs with one additional clutch added per section
• Modified transmission pump to increase line pressure and clamping force on clutch packs
• Modified valve body engineered for precise shifts and increased torque capacity
• ATS Deep Transmission Pan which adds 5 quarts of fluid over stock for improved cooling

Benefits:

• Increased fuel economy, lower transmission operating temperatures and more power to the ground at lower speeds
• Synchronizes torque converter lock-up with exhaust brake to allow the converter to stay locked on deceleration for increased braking force
• Backed by ATS's industry-leading 5 year/500,000 mile warranty

This 4WD configuration without PTO is specifically designed to address the common failure points of the factory E4OD transmission when subjected to the high torque output of diesel engines, especially under modified power conditions.
