ATS Diesel 3099442237 Stage Transmission Package - 4 47RE 4WD

The 47RE transmission is the weakest point on a Dodge Cummins truck, failing not only on trucks with minor upgrades but even on stock vehicles. A heavy duty truck needs parts which can stand up to heavy trailers, stop-and-go commutes, or high-horsepower applications. ATS modifies the transmission to make it the strongest and most reliable part of your drivetrain.

The Stage 4 package is rated to handle approximately 650-700 horsepower, making it ideal for modified diesel trucks used for towing, daily driving, or performance applications.

Package Includes:

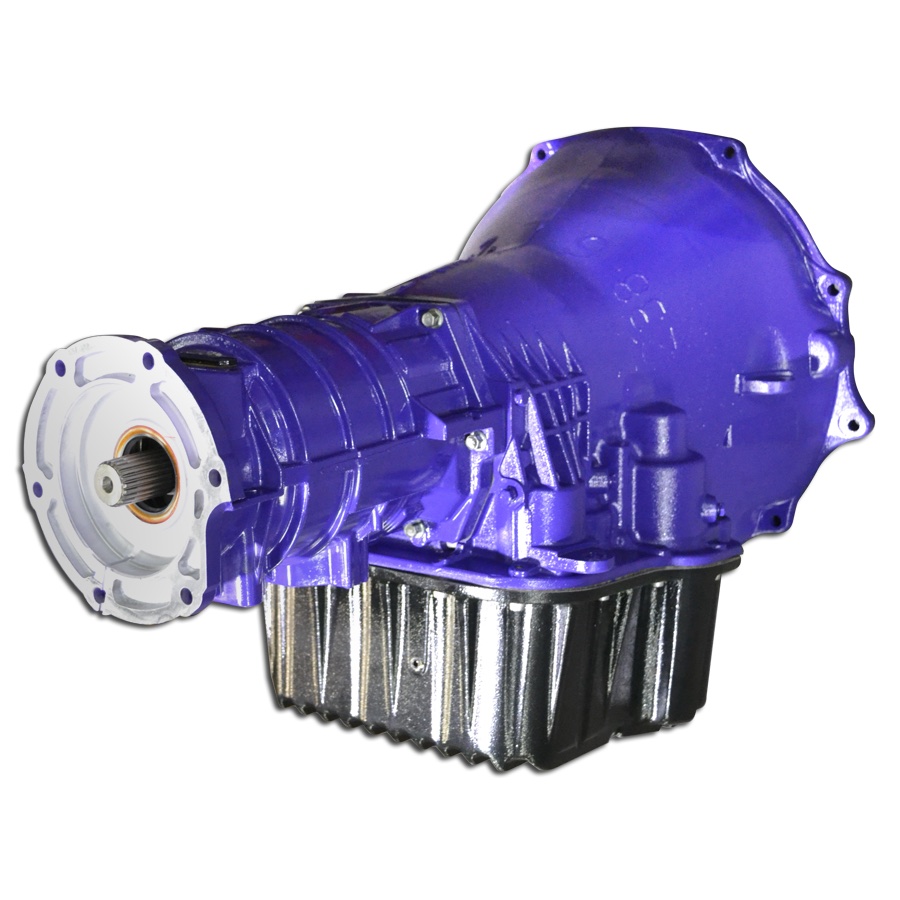

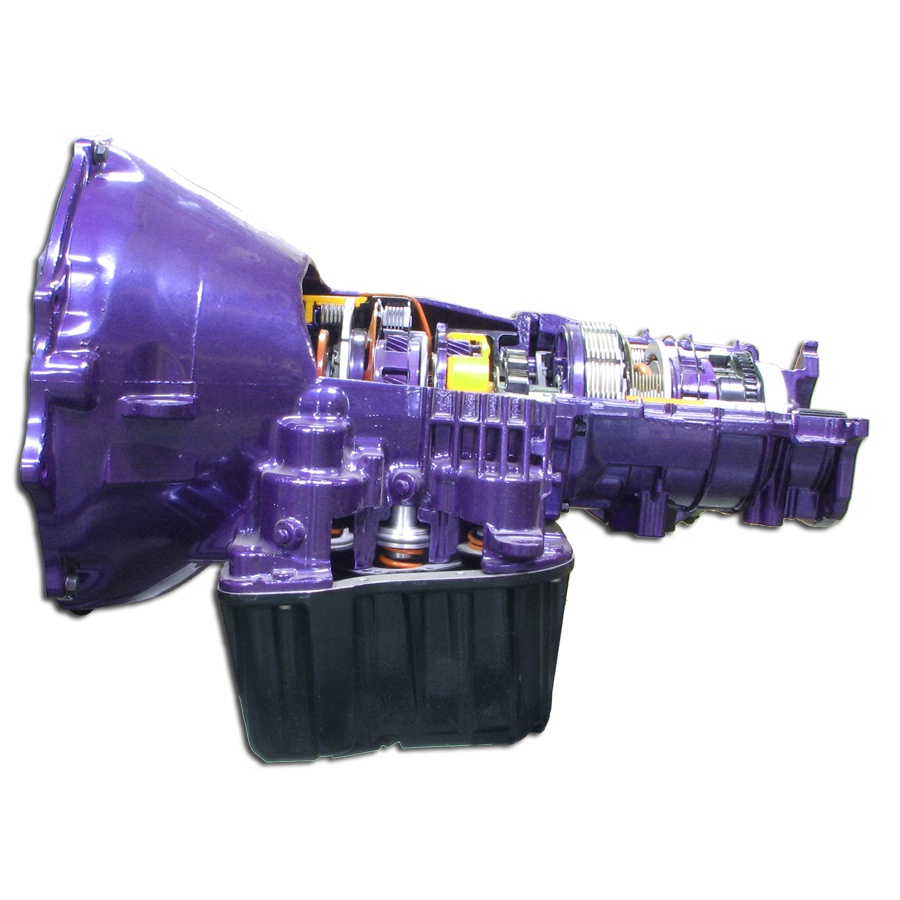

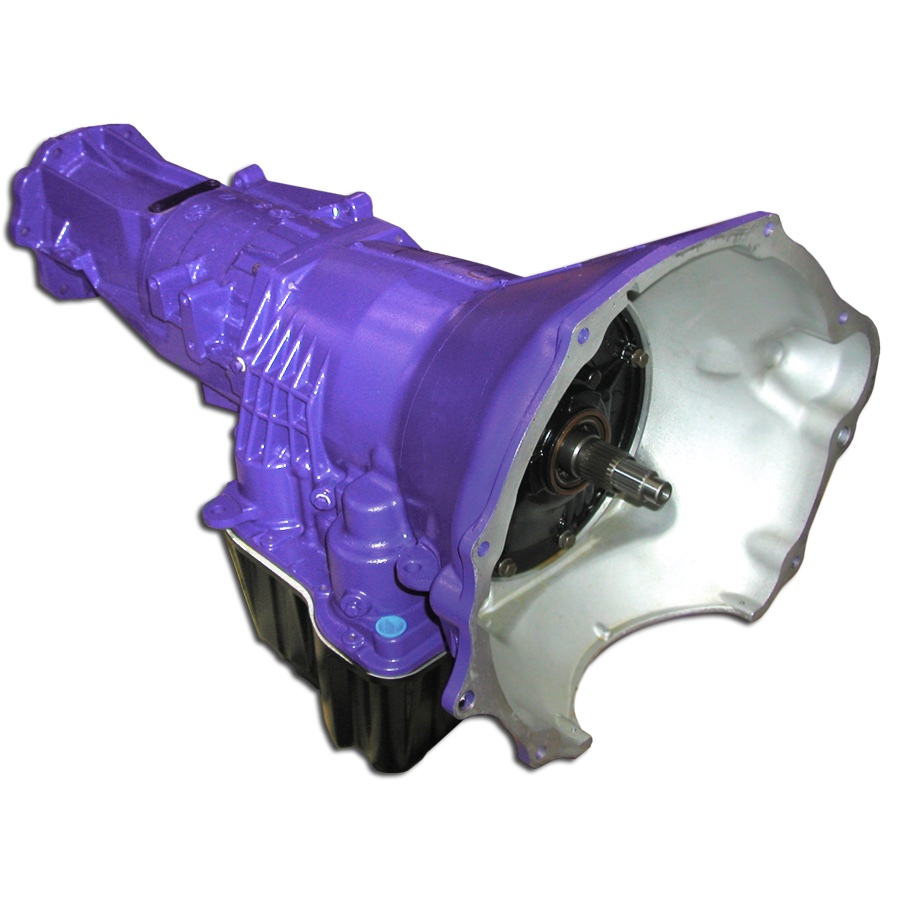

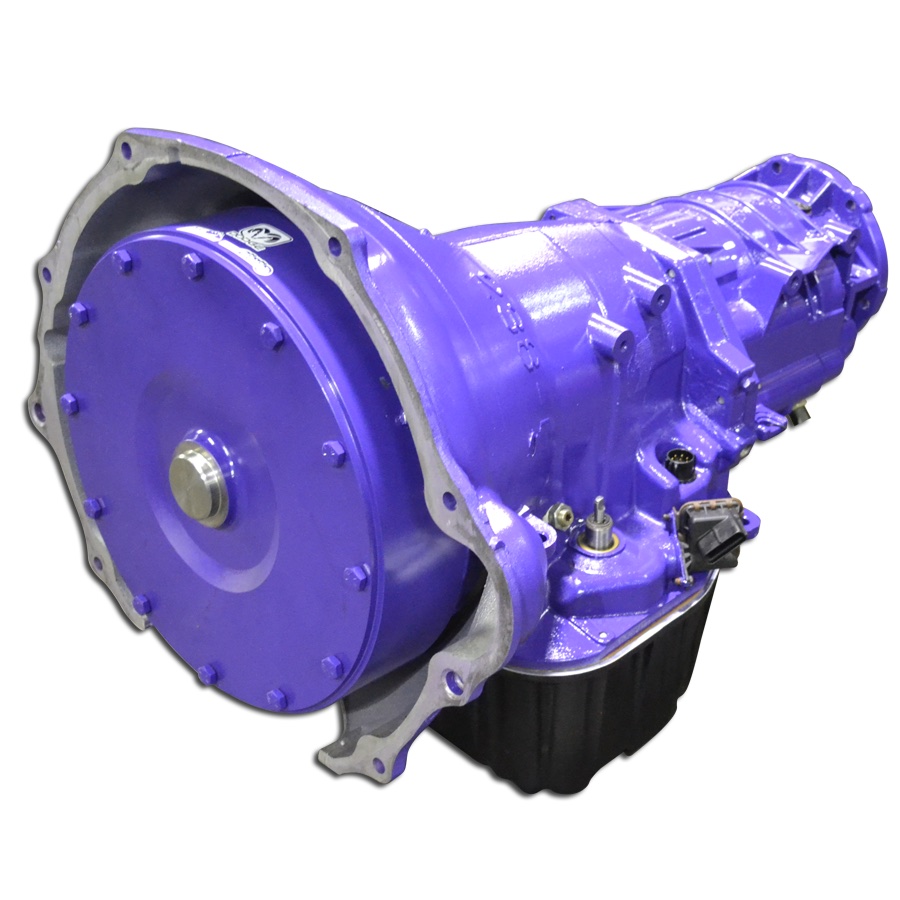

• ATS Built 47RE Automatic Transmission
• ATS 5-Star Viscous Clutch Drive Torque Converter

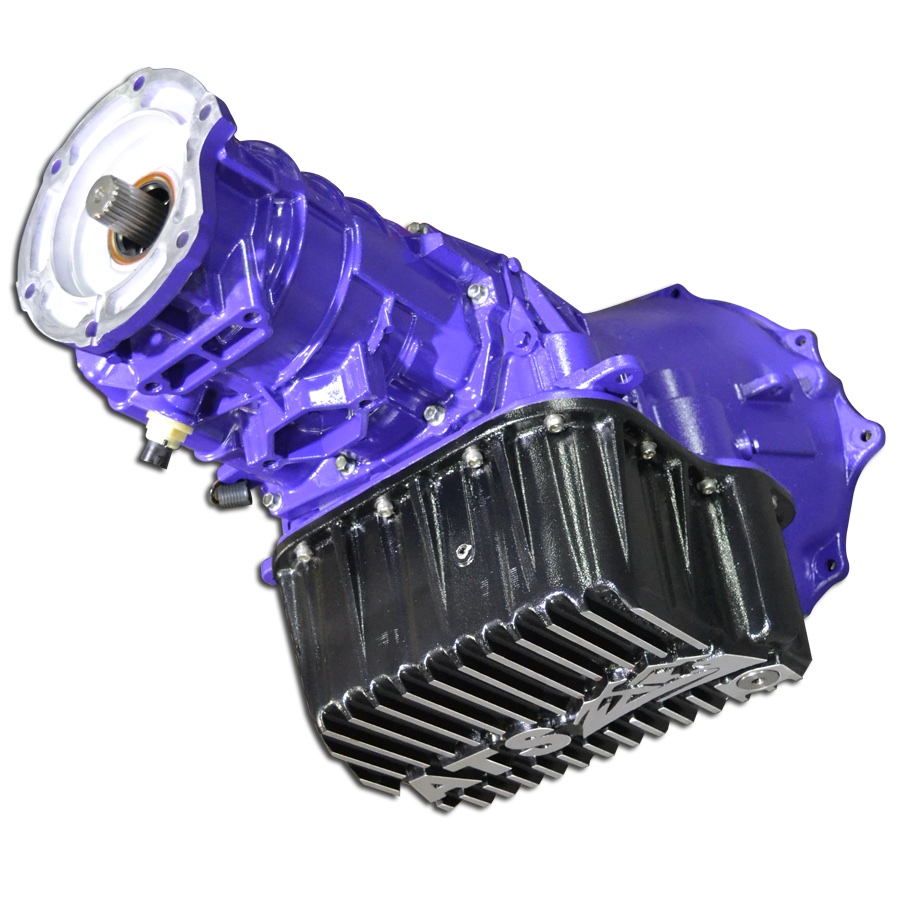

• ATS Extra Deep Transmission Pan
• ATS Billet Input Shaft
• ATS Co-Pilot Torque Converter Lock-Up Controller
• ATS Billet Flex Plate

Key Features:

• Factory sheet metal strut anchor replaced with billet strut anchor for precise band application, and plastic accumulator piston replaced with billet unit
• 1:3.8 ratio apply arm with Borg Warner red lining band featuring performance friction material for higher power levels
• Extensively modified valve body with torque converter lock in 1st and 2nd gear, transmission fluid circulation in park/reverse/neutral, machined TV valve passage with proprietary TV valve sleeve, and increased line pressure
• Every ATS transmission is dyno tested under load behind a diesel engine before shipping
• Backed by ATS's industry-leading 5-year, 500,000 mile warranty

This package is designed for 1999.5-2002 (build date on/after 09/99) Dodge Ram 4WD vehicles. Note: A separate core charge applies to this transmission package.
