ATS Diesel 3099343140 Stage Transmission Package - E4OD 3 4WD

The ATS Diesel 3099343140 E4OD Stage 3 Transmission Package is a high-performance automatic transmission solution designed for 1992-1994 Ford 4WD diesel trucks. This comprehensive package is engineered to handle extreme power and heavy loads, making it ideal for trucks used in light to heavy towing, modified power applications, and racing or street performance.

Package Includes:

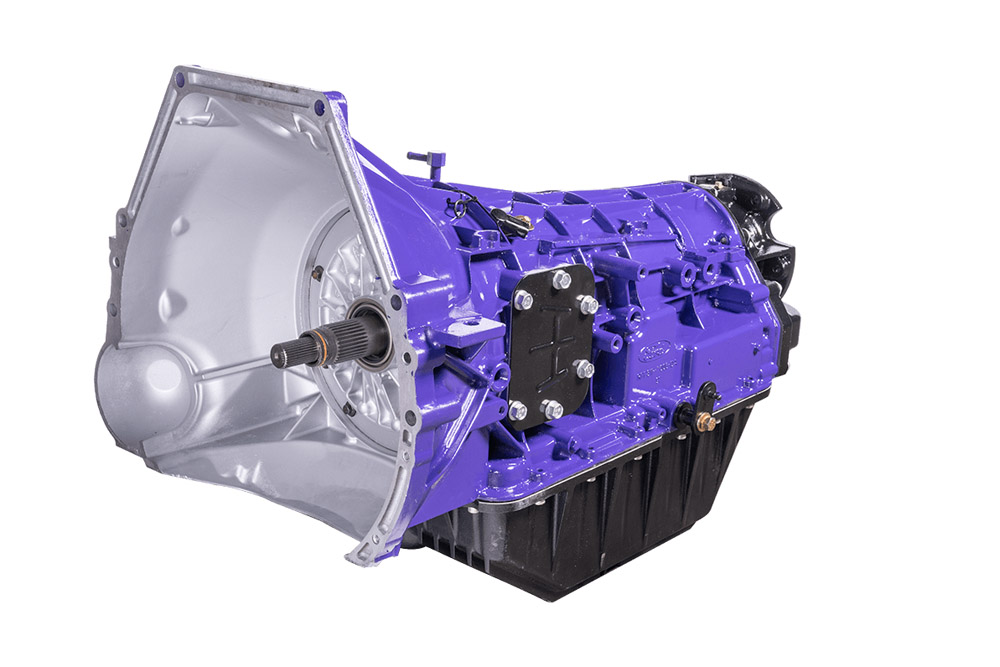

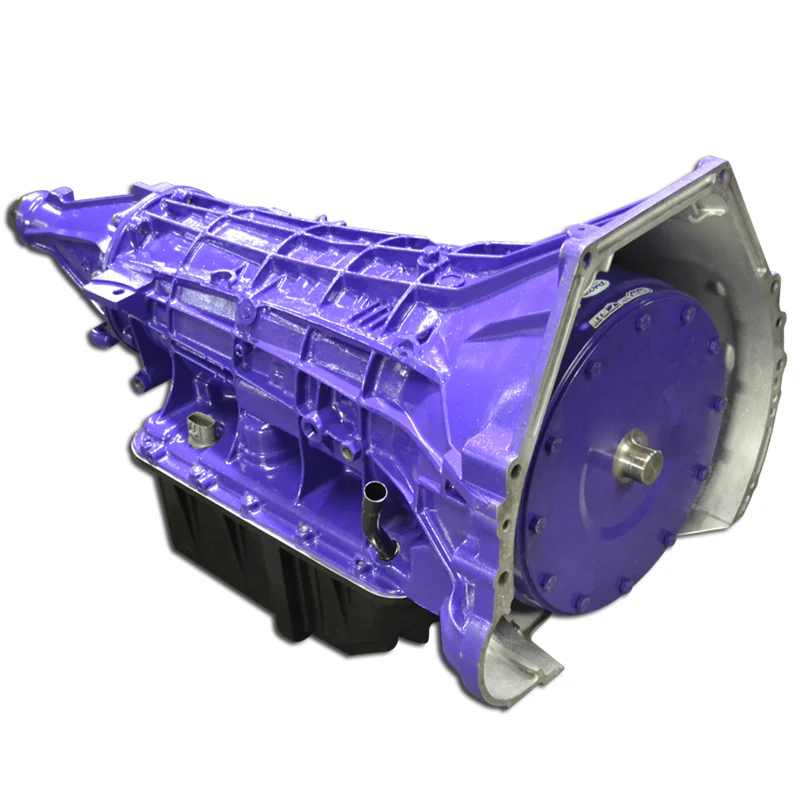

• ATS Built E4OD Automatic Transmission with modified valve body and enhanced clutch packs
• ATS Five Star Viskus Clutch Drive Torque Converter with improved 2.4:1 torque multiplication
• ATS Extra Deep Transmission Pan (adds 5 quarts of fluid over stock for improved cooling)
• ATS Billet Input Shaft made from 300M material for increased torsional strength
• ATS Commander Torque Converter Lock-Up Controller for vehicle speed-based lock-up control

Key Features:

• Rated for 650-700 horsepower applications
• Modified transmission pump increases line pressure for improved clutch pack clamping force
• High-performance overdrive, intermediate, and forward clutch packs with additional clutches
• Precisely engineered valve body for improved shift quality and increased torque capacity
• Lock-up controller synchronizes with exhaust brake for enhanced braking force
• Dyno tested under load to ensure reliable functionality and performance
• Industry-leading 5-year/500,000-mile warranty

The ATS Stage 3 package addresses the common failures of the factory E4OD transmission when subjected to diesel engine torque, especially with increased power levels. Each transmission is manufactured with precision-engineered components that eliminate factory weaknesses and design flaws, providing years of reliable performance for work trucks, towing applications, and performance vehicles.

Note: A separate core charge of $1,300 applies. This transmission requires freight shipping to a location with a loading dock or forklift.
